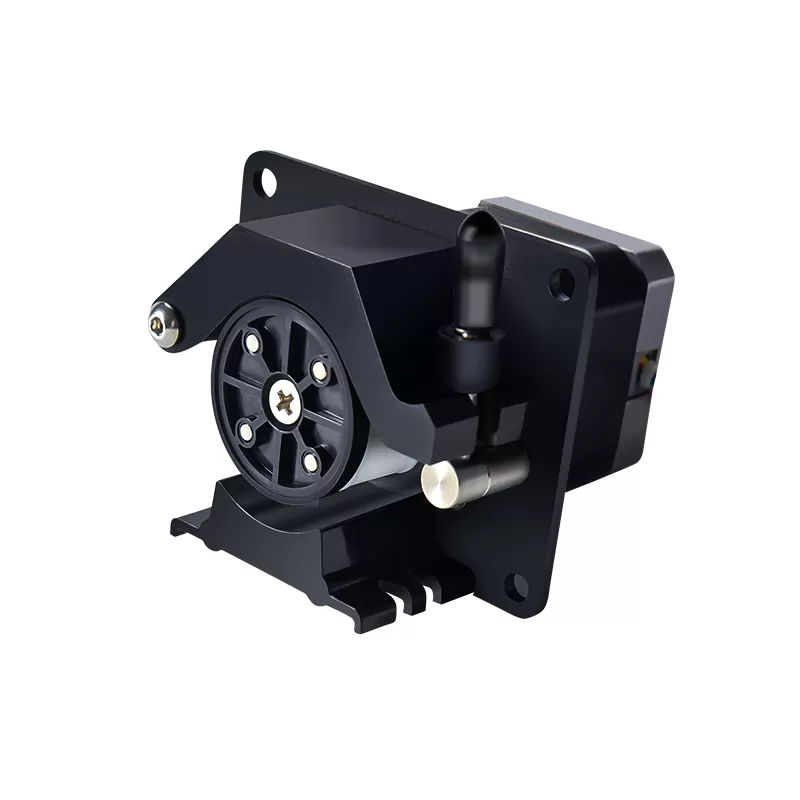

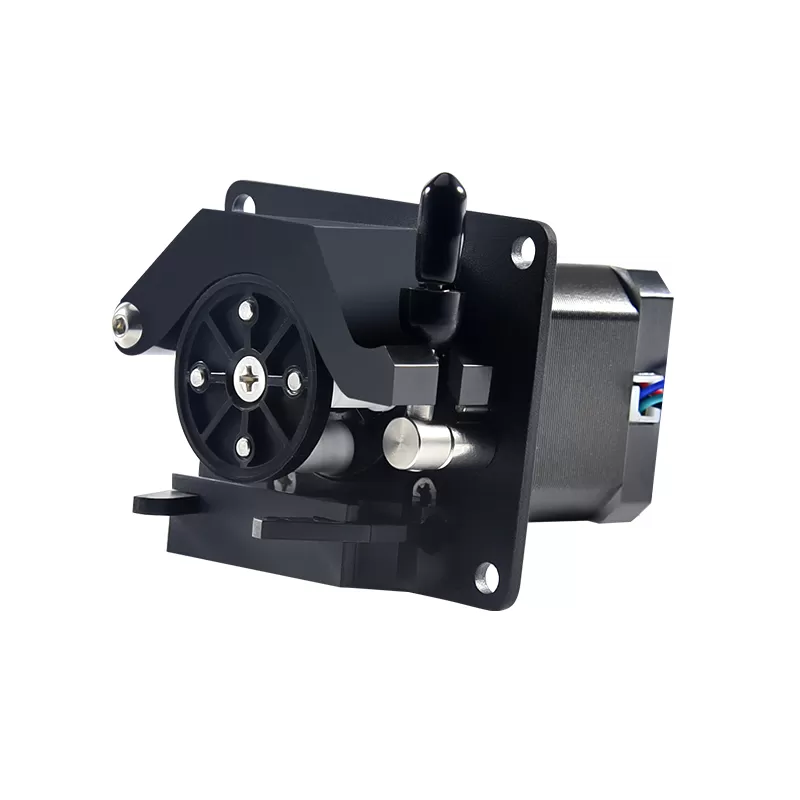

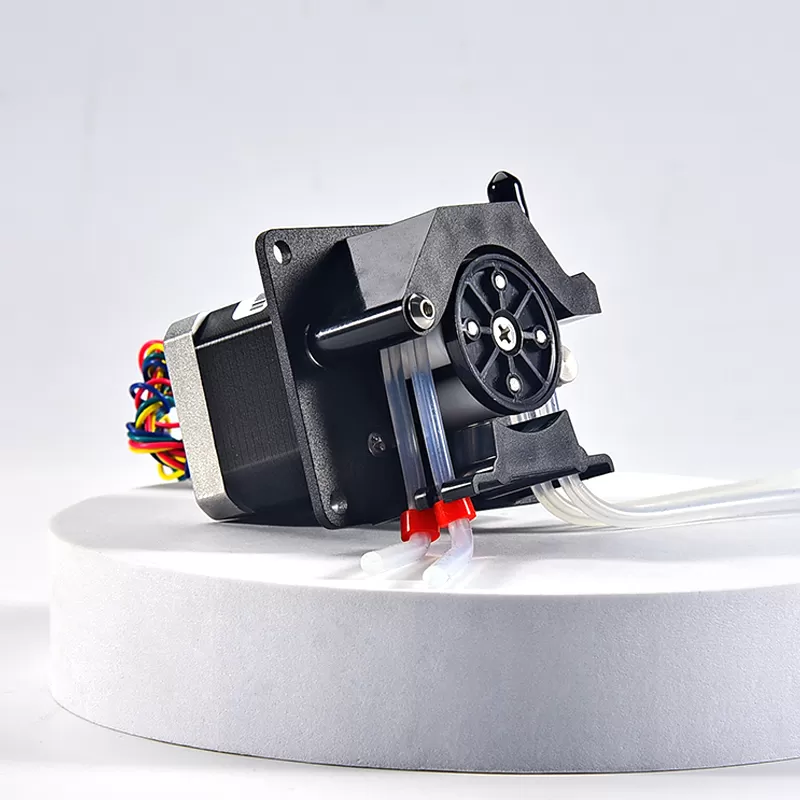

UCP313/WP120 Micro Flow Peristaltic Pump

ModelUCP313
Max Flow115mL/min
Max Speed

150rpm


Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

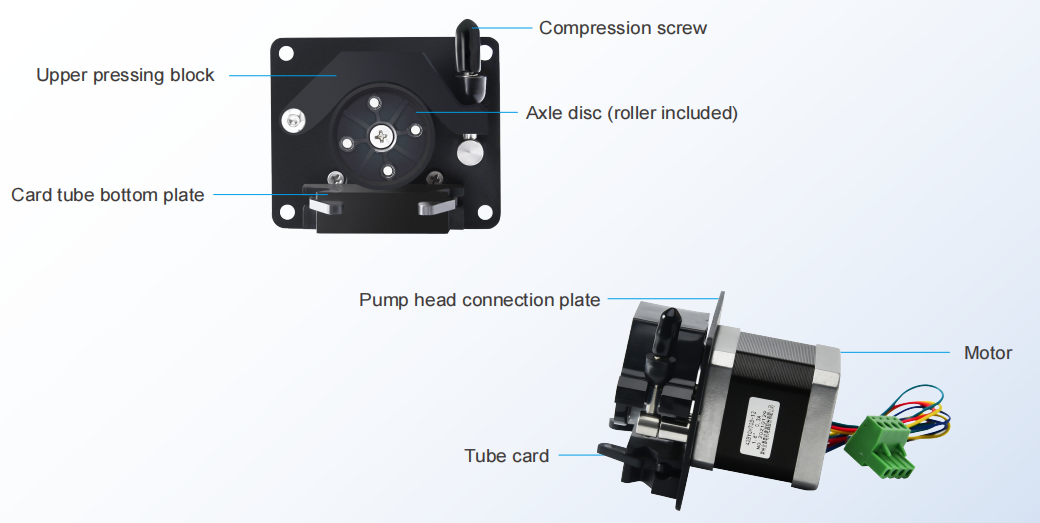

UCP313/WP120 peristaltic pump has excellent transfer performance. And the shell is injection-molded with special engineering plastics, with a solid structure and high strength. The card-type fixing screw makes it easier to assemble and disassemble the pump tube, with small fluid pulsation and high stability during operation. The pump head can be matched with different motors to meet different transmission requirements. It is a type of micro flow rate pump, the max flow rate is about 115ml/min.


Features:

Excellent transfer performance, the max flow rate is 115ml/min

The shell is injection-molded with special engineering plastics with a solid structure and high strength

The dial-type fixing screw makes it easier to assemble and disassemble the pump tube

Small fluid pulsation and high stability during operation

The pump head can be matched with different motors to meet different transmission requirements


Applications:

It is used in small flow transmission such as laboratory sample treatment, medical machinery matching, COD water treatment, environmental sampling, etc.




UCP313/WP120 Micro Flow Peristaltic Pump

Pump HeadChannelsRollersMax Speed(rpm)Hose Specifications(ID*Wall Thickness)mmMax Flow(ml/min)
  WP120-15  1  4  0-15013#/0.8X1.63
14#/1.6X1.618
19#/2.4X1.634
16#/3.2X1.665
25#/4.8X1.6115
 WP120-10 1/2 4 0-1501x16
2x125
2.4X0.840
3x153



ModelPump HeadMotorChannelsMax SpeedMax Flow(ml/min)
13#14#19#16#25#
UCP313WP120-15Stepper11503183465115

Max Flow(ml/min/channels)
1x12x12.4X0.83x1
UCP313WP120-10-1Stepper11506254053
UCP313WP120-10-2Stepper21506254053

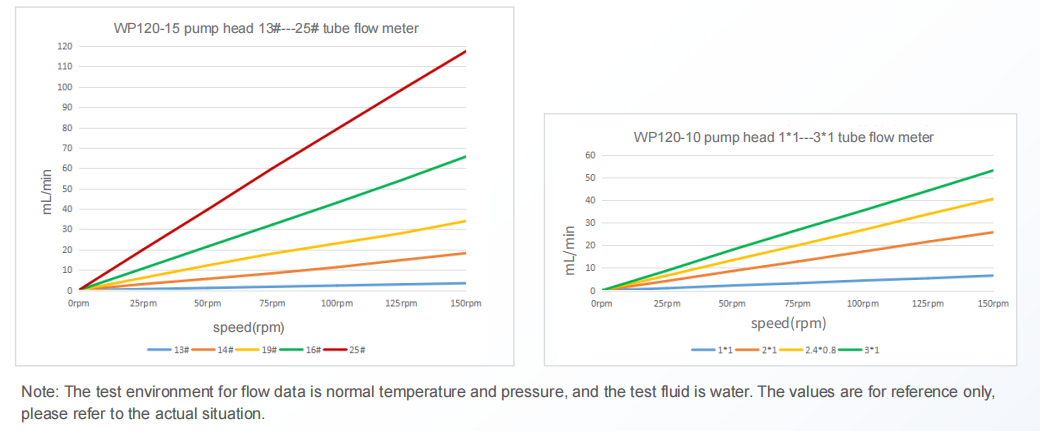

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
