UCP314 Peristaltic Pump Flow Rate 420ml/min- Chonry

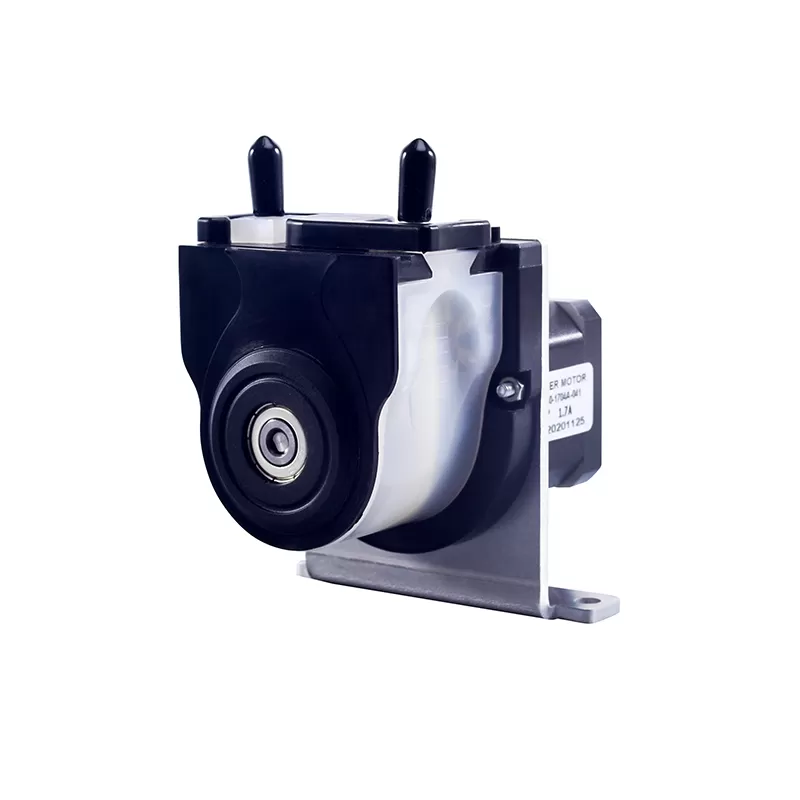

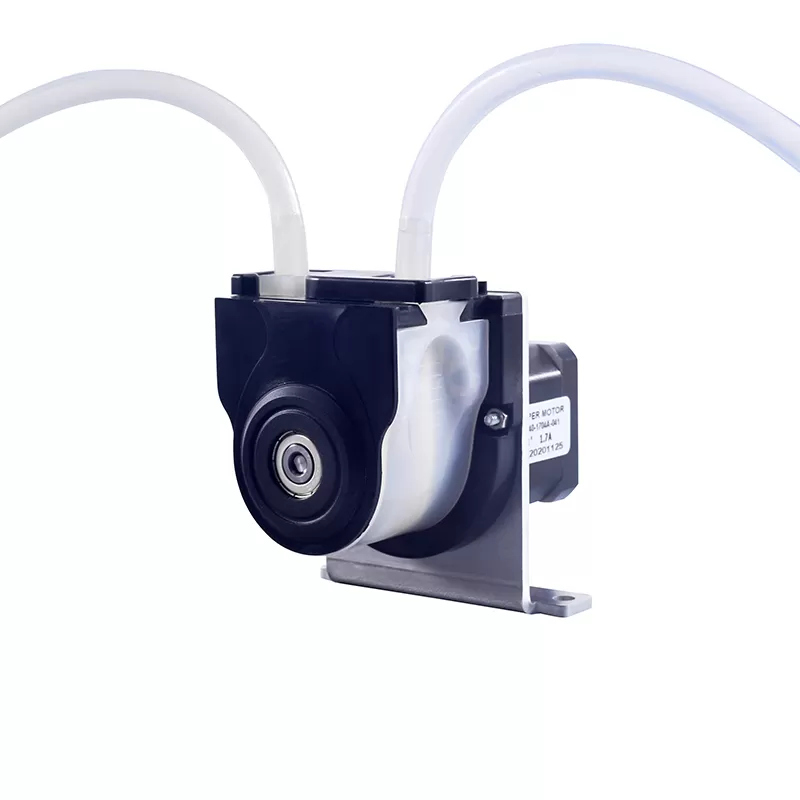

UCP314 Stepper Motor Peristaltic Pump

Model	UCP314
Max Flow	420mL/min
Max Speed	300rpm

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

The flow rate of UCP314 is up to 420ml/min. The shell of this peristaltic pump is made of special engineering plastic injection molding which has strong corrosion resistance and is suitable for matching use of COD, CEMS, and other online testing instruments.

Features:

With strong corrosion resistance, the shell material adopts special engineering plastic injection molding.

Flexible pressure tube structure extends pump tube life.

Suitable for COD, and CEMS, supporting the use of online testing instruments.

Multi-power configuration, meet the flow needs and equipment matching of different industries.

Applications:

Applied to online monitoring waste liquid discharge/ vending machine/ self-service laundry room.

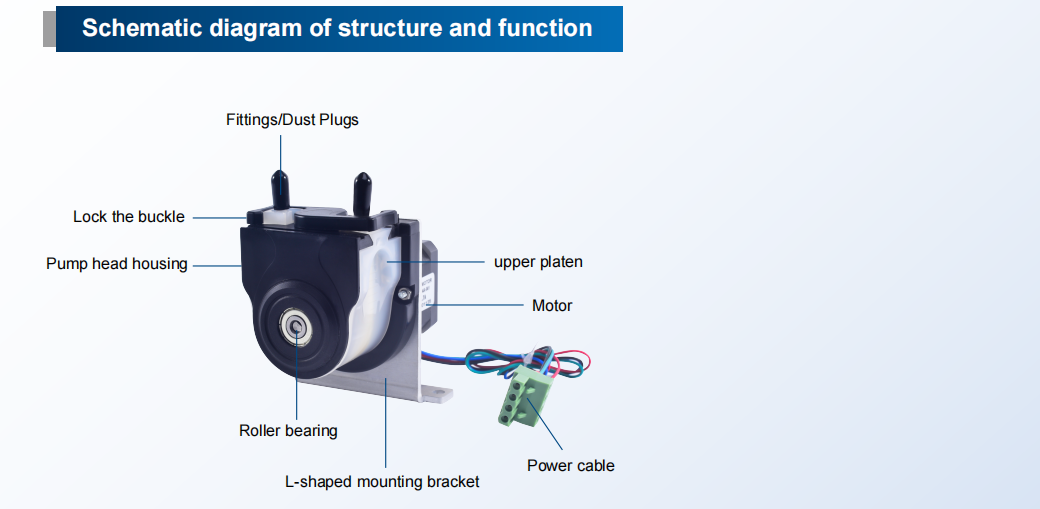

UCP314 Peristaltic Pump

Pump Head

Channels

Rollers

Rotating Speed(rpm)

Hose Specifications(ID*Wall Thickness)mm

Max Flow(mL/min)

WP200

Continuous: 0-100

14#/1.6X1.6

19#/2.4X1.6

16#/3.2X1.6

25#/4.8X1.6

Continuous: 140

Intermittent: 0-300

Intermittent: 420

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

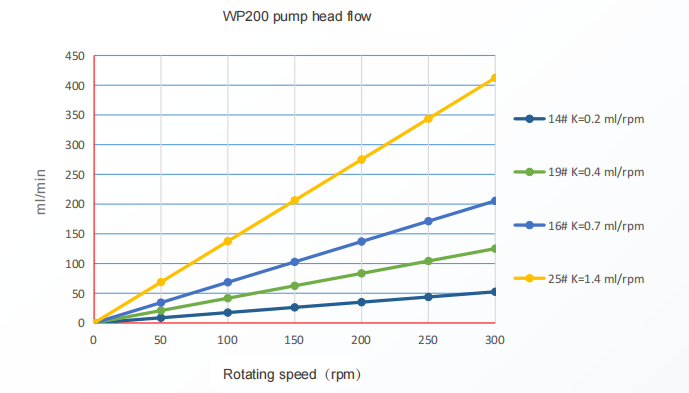

UCP314 Peristaltic Pump

Model	Pump Head	Motor	Hose	Max Flow(ml/min)
				100rpm(continuous)	300rpm(Intermittent)
UCP314	WP200	Stepper	14#	20	56
			19#	40	120
			16#	70	210
			25#	140	420

None
