Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

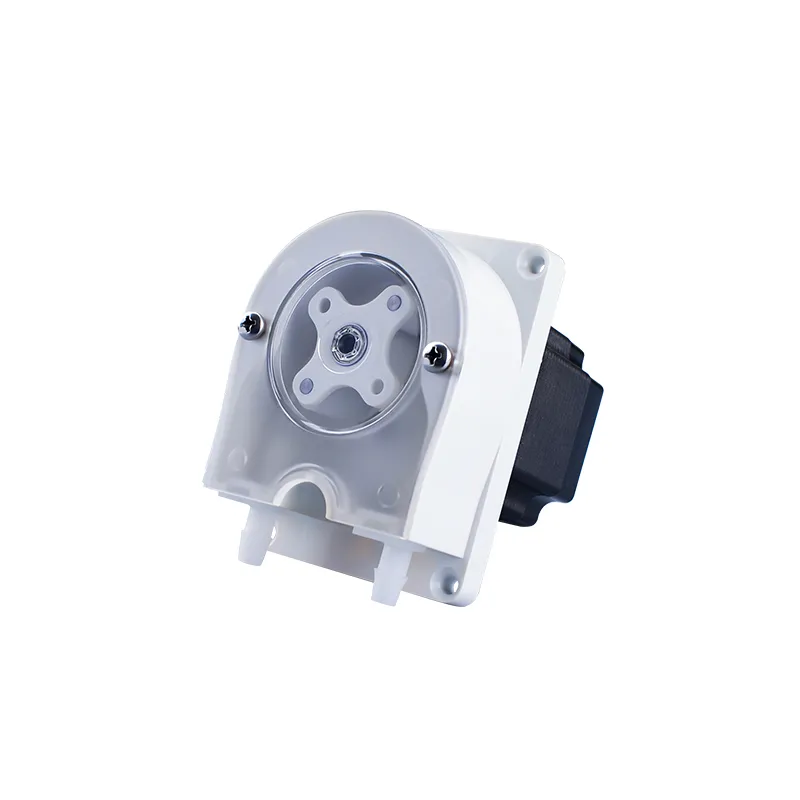

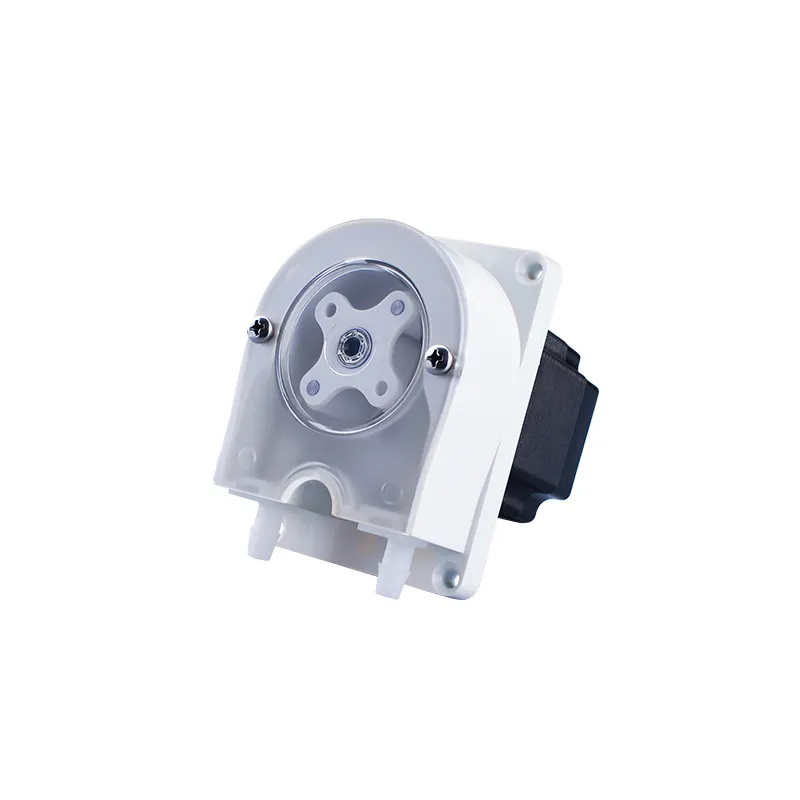

The WP300 pump head housing adopts new special engineering plastics, which have outstanding stability and corrosion resistance. It can be designed with a visual window to facilitate the transmission situation. The knob loading and unloading pump cover is easier, the fluid transportation performance is strong, and the maximum flow can reach 870ml/min.

Features and Benefits:

Special engineering plastic shell, strong and corrosion resistant

Visual window

Knob design, easy to operate and install

Large flow rate can up to 870mL/min

Application:

It is perfect pump for maximizing yield in

- Permentation

- Cell culture

- PH control

- Nutrient transfer

Model	WP300
Max Speed	300rmp
Max Flow	870mL/min
Channel	1
Roller	2
Tube	13#,14#,19#,16#,25#,17#,
Roller Material	PP
Available Motor	42 DC deceleration motor

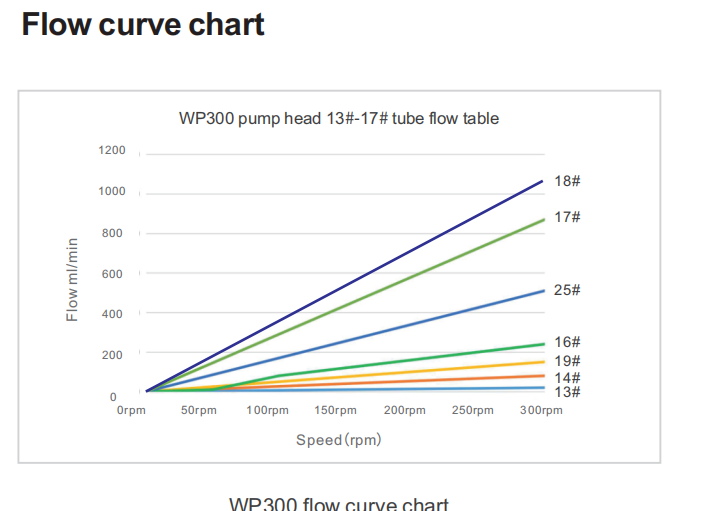

Pump Head	Hose Specifications(Id*Wall Thickness)mm	Max Flow(mL/min)
Pump Head	Hose Specifications(Id*Wall Thickness)mm	50rpm	100rpm	150rpm	200rpm	250rpm	300rpm
WP300	13#/0.8*1.6	3	6	10	13	16	20
	14#/1.6*1.6	13	26	40	53	66	80
	19#/2.4*1.6	25	50	75	100	125	150
	16#/3.2*1.6	40	80	120	160	200	240
	25#/4.8*1.6	85	170	255	340	425	510
	17#/6.4 *1.6	145	290	435	580	725	870
Applicable tube: Silicone tube, PharMedBPT tube. Motor model: 42 DC deceleration motor

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

WP300 Peristaltic Pump Head Brochure - Chonry The product warranty period is one year. If there is a failure during the warranty period, you can enjoy free maintenance and replacement of parts;
