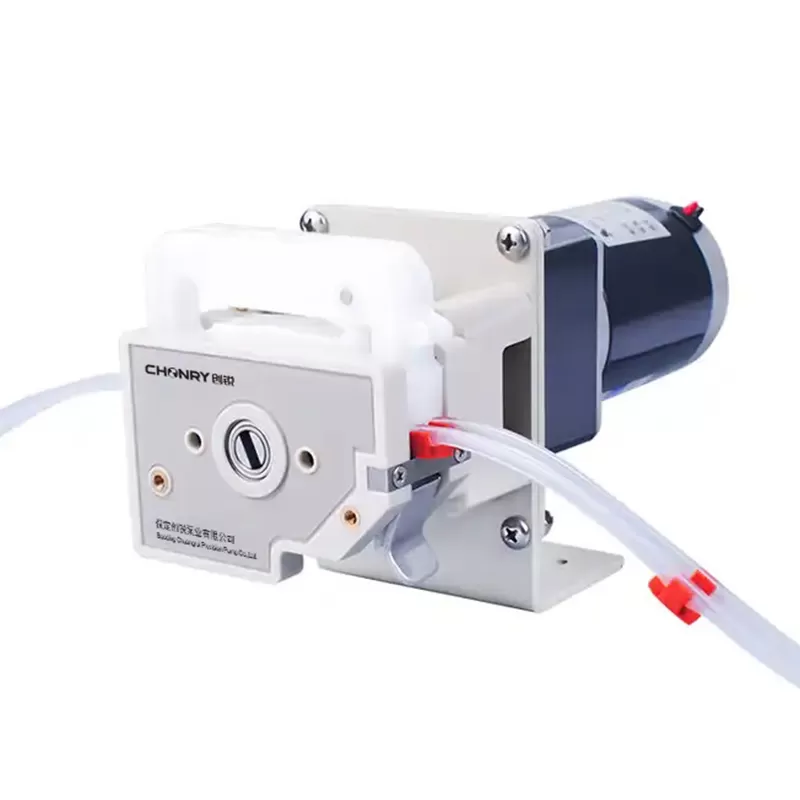

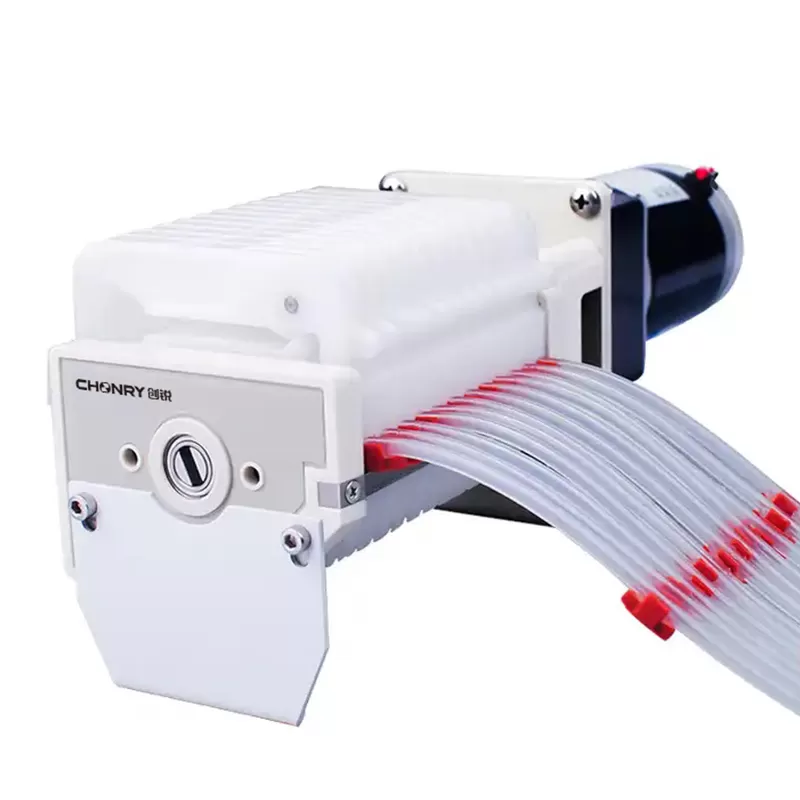

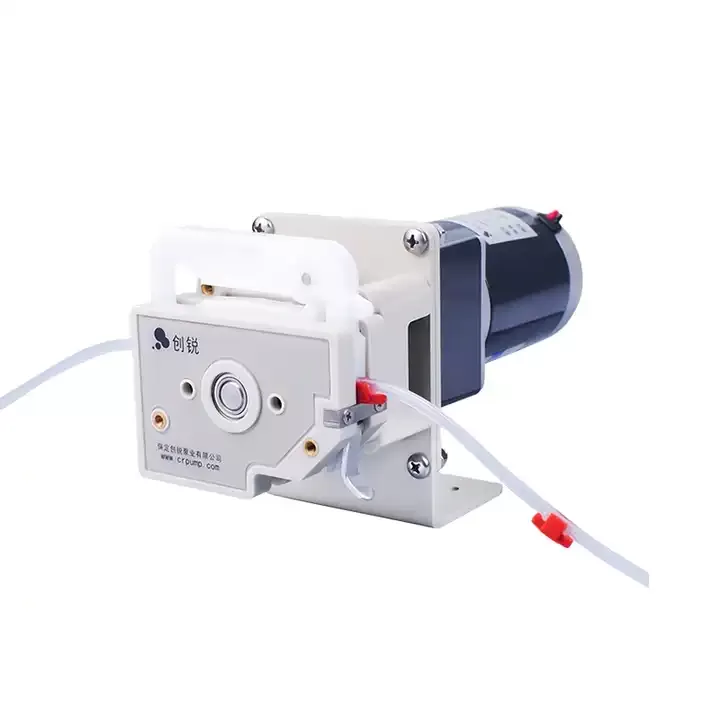

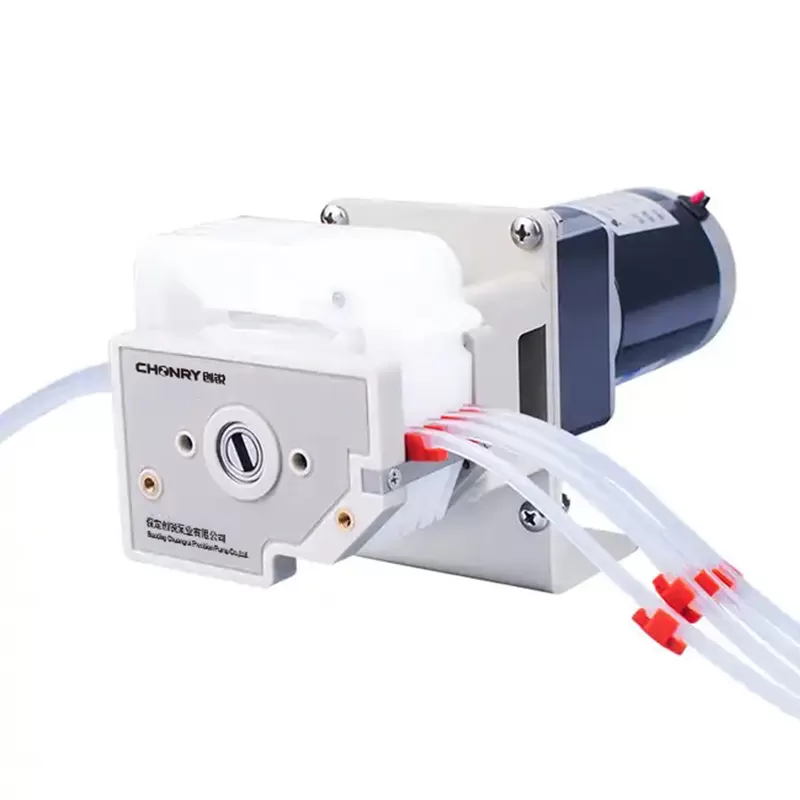

OEM212 Multi -channel Small Peristaltic Pump 12v 24v Peristaltic Dosing Pump

Flow Rate: 36ml/min

Max Channel: 12 channels

OEM212 multi-channel peristaltic pump flow rate 36ml/min/channel. Max channel 12 channel. 12v 24v peristaltic pump. Small size. Used for liquid delivery lab chemical transfer. Inquiry peristaltic pump now!

Inquire Now

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

This multi-channel peristaltic pump can generate an adjustable flow range from 0.0015ml/min to 36ml/min. The high-output torque can drive up to 12 channels.

Features:

- Multi-channel peristaltic pump

- Easy to replace tubing

- Stable flow

- Max flow rate: 36ml/min

Applications:

- Liquid handling and delivery

- Cell culture

- Perfusion system

- Bio-lab applications, microfluidics

- Suitable for laboratory and industrial applications

Model	Tube	ID*wall thickness(mm)	Max Speed(rpm)	Max Flow(mL/min)
DG(6)	0.5*0.8	0.5*0.8	100	2
	1*1	1*1	100	6
	2*1	2*1	100	19
	2.4*0.8	2.4*0.8	100	24
	3*1	3*1	100	36
DG(10)	0.5*0.8	0.5*0.8	100	1.5
	1*1	1*1	100	4
	2*1	2*1	100	13
	2.4*0.8	2.4*0.8	100	17
	3*1	3*1	100	27
