OEM200 Peristaltic Pump Large Flow 12L/min Batch Liquid Transferring

OEM200 Peristaltic Pump Large Flow 12L/min Batch Liquid Transferring

Pump Head	YZ35-13L
Channels	1
Rollers	3
Suitable Tubing	73#,82#
Max Flow	12l/min
Max Speed	600rpm
Matching Motor	DC motor/ stepper motor

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

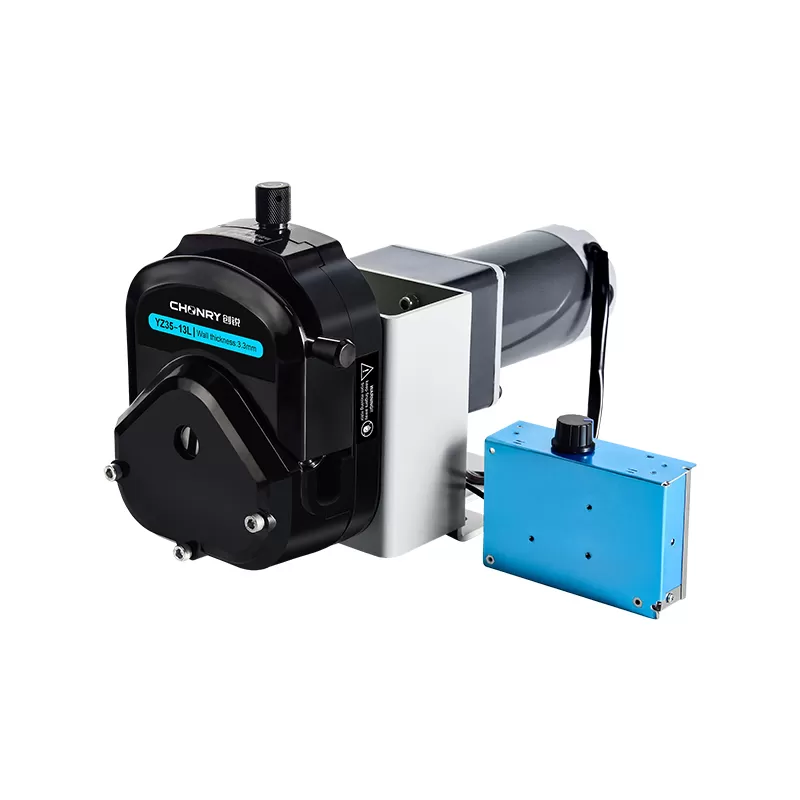

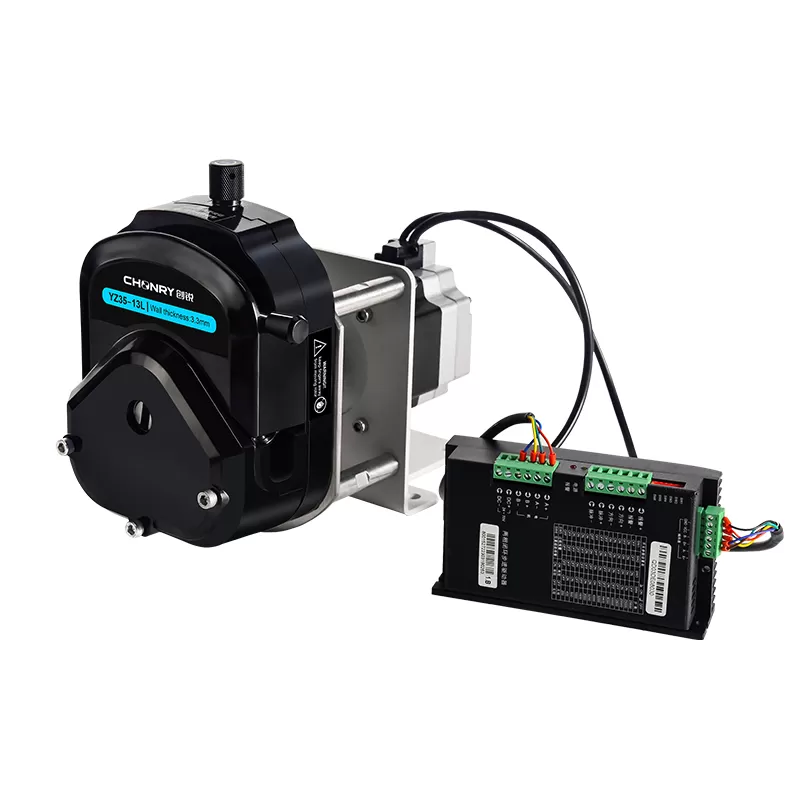

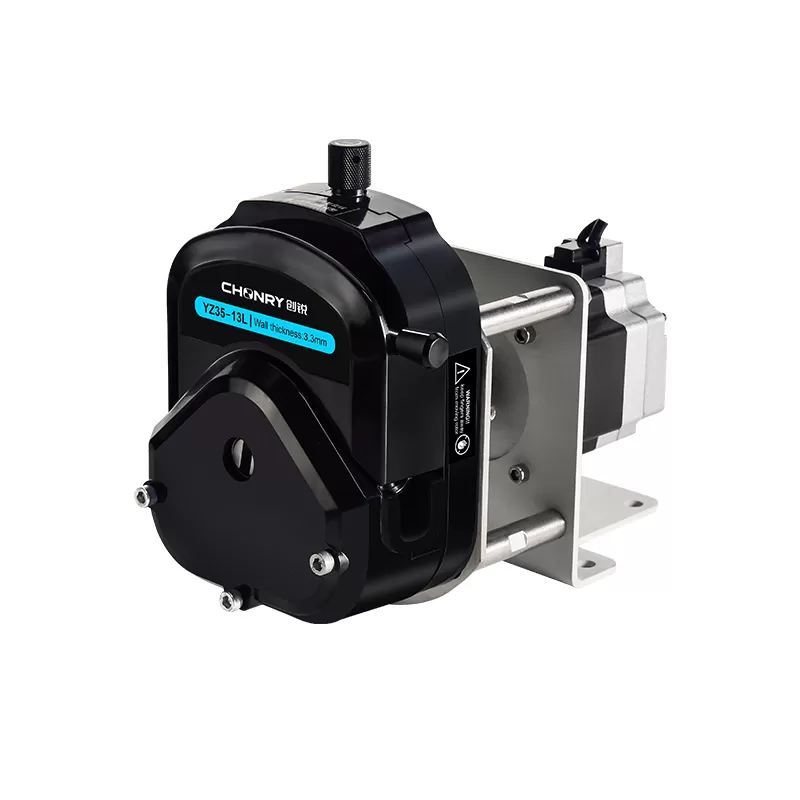

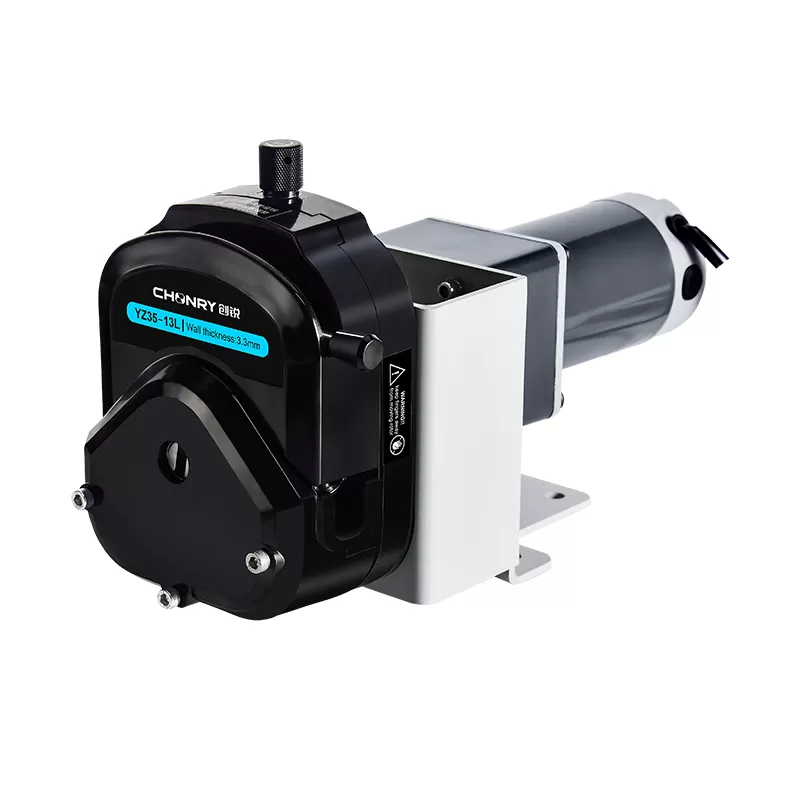

OEM200 large flow peristaltic pump. The flow rate up to 12L/min. There are 3 rollers in the pump heads. Stable flow rate and easy load peristaltic pump tubing. Wear-resistant, corrosion-resistant, and long lifetime. It can be equipped with a DC motor and stepper motor to meet different working requirements.

Applications:

The large flow OEM peristaltic pumps are used for batch transmitting large volume liquid and used in mineral processing, photovoltaic, chemical environmental protection, pharmaceutical equipment, and admixture matching.

Flow Rate Table:

Pump Head	Tube	ID*Wall thickness(mm)	Max Flow(ml/min)	Max Speed(rpm)
YZ35-13L	73#	9.6*3.3	7400	600
YZ35-13L	82#	12.7*3.3	12000	600

None

None

None

None

None
