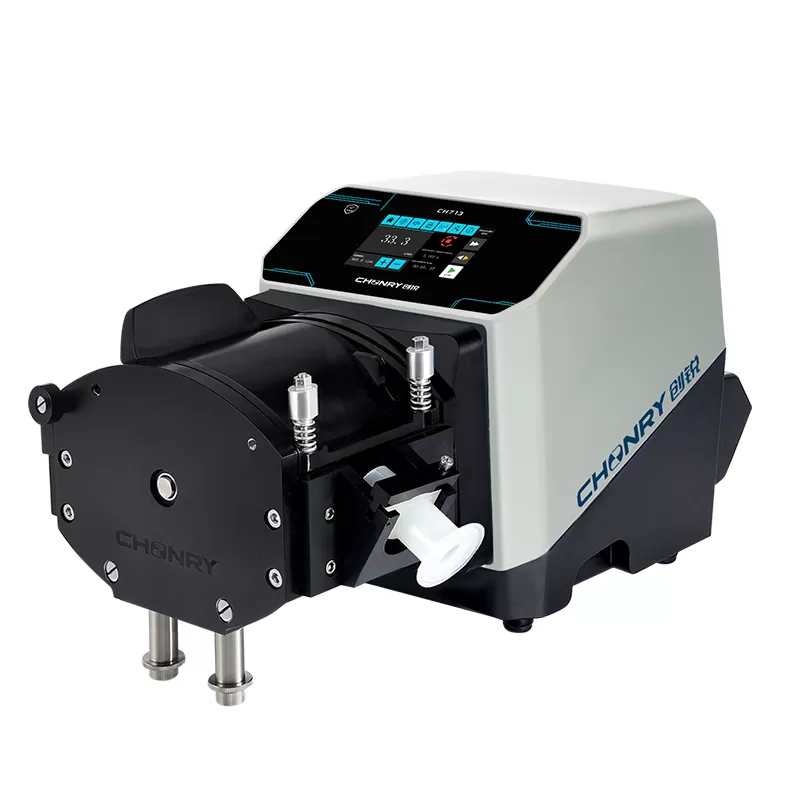

CH713 is an intelligent control high protection peristaltic pump. The intelligent system has transmission mode, timing mode, quantitative mode, and fling mode to meet different application requirements. It has a graphical human-machine interface, intuitive and convenient operation, and lP66 high protection level. It is designed to cope with complex and harsh industrial environments and is suitable for humid, dusty, and other production scenarios to ensure long-term stable operation of the equipment under harsh conditions.

Product Features

1. Die cast aluminum (surface sprayed) shell, dustproof, moisture-proof, corrosion-resistant.

2. IP66 high protection level, suitable for complex and harsh industrial production environments.

3. 5-inch touch screen, clear viewing angle, simple and intuitive operation.

4. Max flow rate up to 18L/min.

5. Transmission mode, filling mode, quantitative/timing mode, one machine for multiple uses to meet different scene requirements.

6. Support RS485-Modbus RTU communication protocol, analog 0-10V,4-20mA can be set.

7. The system has three levels of user access rights to prevent unauthorized access and operation, improve safety efficiency, and comply with GMP requirements.

Technical Parameter
Driver Model	CH713
Adapter Pump Head	KZ50R, KZ50RE
Max Speed	360rpm
Max Flow	33.3L/min
Speed Resolution	0.1rpm
Display Method	5-inch LCD screen, Chinese or English can be set
Control Method	Touch screen control
Work Mode	Transmission mode, timing mode, Quantitative model, Filling mode
Back Suction Angle	0°~3600°(0° means no back suction)
Back Suction Speed	10-265rpm
Rated Power	400W
Driver Size	372x286x308mm
Driver Weight	17.8kg (with sealing components)
Lock Screen Function	Yes
Leakage Detection Function	Yes (customizable)
Supply Voltage	100-120V/200-240V 50/60Hz 1pH(Depends on regional power cord set and power supply)
External Control Interface	RS485-Modbus RTU communication protocol, analog 0-10V, 4-20mA
Storage Temperature	-25°C to 65°C
Ambient Temperature	5°C to 40°C
Protection Level	IP66

Pump Head Flow Parameter Table

Pump Head	Tube Model	Tube Material	Tube Specifications	Max Speed	Max Flow	Max Outlet Pressure
KZ50R	93#	Silicone	9.6x4.8 mm	360rpm	7L/min	0.2Mpa
	88#	Silicone	12.7x4.8 mm	360rpm	13L/min	0.2Mpa
	189#	Silicone	15.9x4.8 mm	360rpm	18.3L/min	0.2Mpa
	191#	Silicone	19.0x4.8 mm	360rpm	25L/min	0.2Mpa
	92#	Silicone	25.4x4.8 mm	360rpm	33.3L/min	0.2Mpa

Continuous Hose, KZ50R (4 rollers)

Pump Head	Tube Model	Tube Material	Tube Specifications	Max Speed	Max Flow	Max Outlet Pressure
KZ50RE	93#	Silicone	9.6x4.8 mm	360rpm	7L/min	0.2Mpa
	88#	Silicone	12.7x4.8 mm	360rpm	13L/min	0.2Mpa
	189#	Silicone	15.9x4.8 mm	360rpm	18.3L/min	0.2Mpa
	191#	Silicone	19.0x4.8 mm	360rpm	25L/min	0.2Mpa
	92#	Silicone	25.4x4.8 mm	360rpm	33.3L/min	0.2Mpa

Tube assemblies, KZ50RE (4 rollers)

Test conditions:

1. Flow data testing environment for room temperature 20-25 °C, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight through tube, suction range of 0.5 meters, the head is not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

The above data is tested under normal temperature and pressure, the test hose is a silicone tube, and the test liquid is water. The data is for reference only, please refer to the actual situation.

For specific needs, please consult technical personnel. Technical parameters are subject to change without prior notice.
