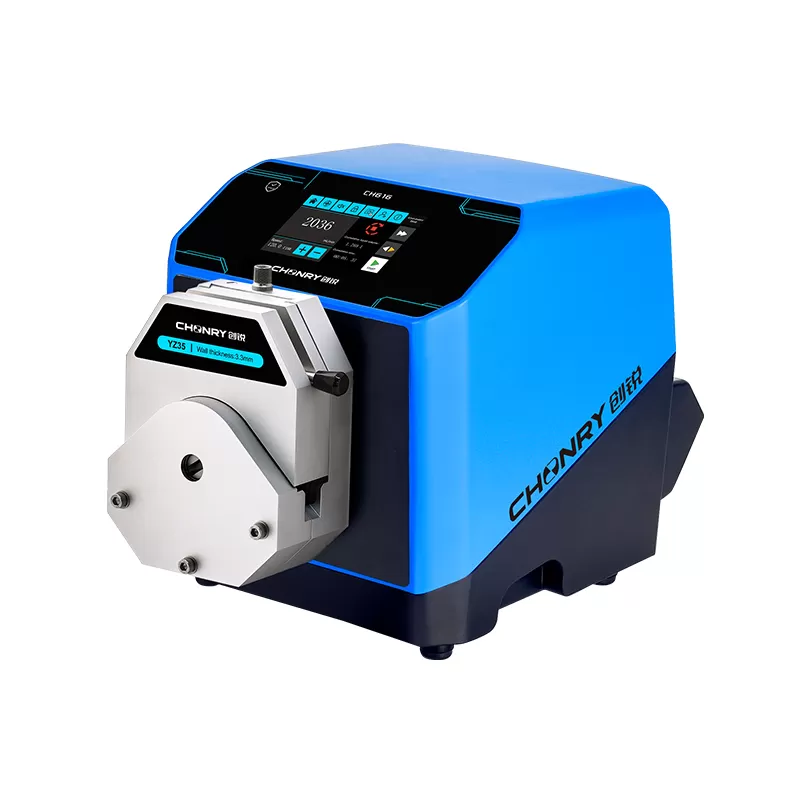

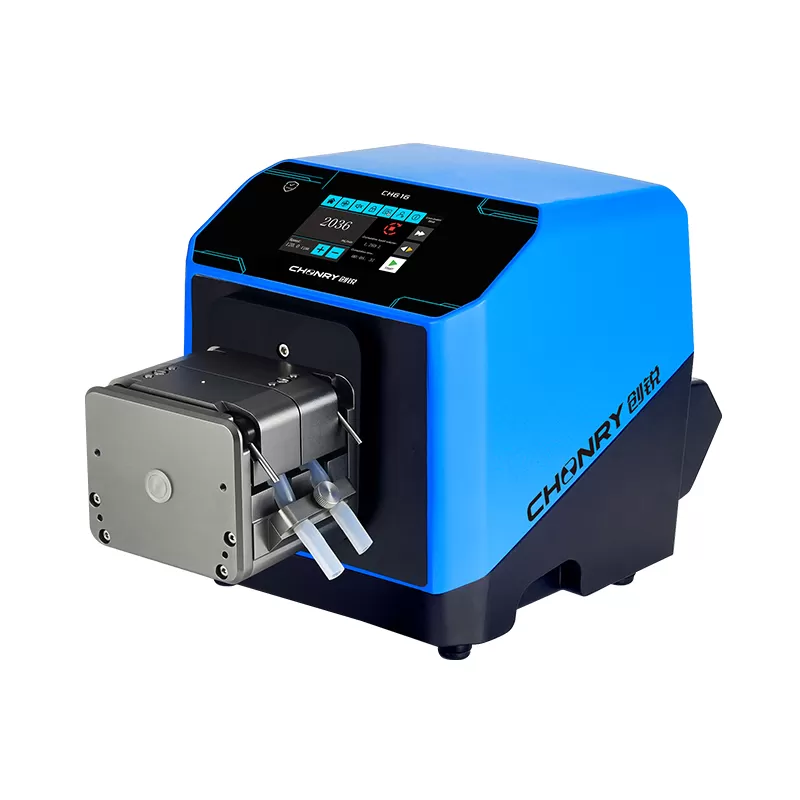

CH616 Industrial Peristaltic Pump High Flow High Protection IP66

CH616 Industrial Peristaltic Pump High Flow IP66

Max Speed: 350rpm ---Max Flow 4500ml/min

Max Speed: 600rpm ---Max Flow 12000ml/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

CH616 industrial peristaltic pump features high protection IP66 and intelligent control. The intelligent system has transmission mode, timing mode, quantitative mode, and filling mode to meet different application requirements. It has a graphical human-machine interface, intuitive and convenient operation. It is designed to cope with complex and harsh industrial environments and is suitable for humid, dusty and other production scenarios to ensure long-term stable operation of the equipment under harsh conditions.

Products Features:

1. Die cast aluminum (surface sprayed) shell, dustproof, moisture-proof, corrosion-resistant.

2. IP66 high protection level, suitable for complex and harsh industrial production environments.

3. 5-inch touch screen, clear viewing angle, simple and intuitive operation.

4. Max flow rate up to 12L/min.

5. Transmission mode, filling mode, quantitative/timing mode, one machine for multiple uses to meet different scene requirements.

6.Support RS485-Modbus RTU communication protocol, anal0g 0-10V,4-20mA can be set.

7. The system has three levels of user access rights to prevent unauthorized access and operation, improve safety efficiency, and comply with GMP requirements.

Technical Parameter
Driver Model	CH616
Adapt Pump Head	LP25-6-H	YZ35,YZ35-13L,YZ35LS
Max Speed	350rpm	600rpm
Max Flow	4500ml/min	12000ml/min
Speed resolution	0.1rpm
Display Method	5-inch LCD screen, Chinese or English can be set
Control Method	Touch Screen control
Work Mode	Transmission mode, timing mode, Quantitative mode, filling mode
Back Suction Angle	0°-3600°(0° means no back suction)
Back Suction Speed	10-265rpm
Rated Power	400W
Driver Size	372x286x308mm
Drive Weight	17.8 kg (with sealing components)
Lock screen function	Yes
Leakage detection function	Yes (Customizable)
Supply voltage	100-120V / 200-240V 50/60Hz 1pH(Depends on regional power cord set and power supply)
External Control interface	RS485-Modbus RTU communication protocol, analog 0-10V, 4-20mA
Storage Temperature	-25°C to 65°C
Ambient Temperature	5°C to 40°C
Protection Level	IP66

Pump Head Flow Parameter Table

Pump Head	Tube	ID(mm)	Wall Thickness(mm)	Max Speed(rpm)	Max Flow(mL/min)
LP25-6-H	2.4*2.4	2.4	2.4	350	455
	2.4*2.4	3.2	2.4	350	700
	15#	4.8	2.4	350	1505
	24#	6.4	2.4	350	2345
	35#	7.9	2.4	350	3255
	36#	9.6	2.4	350	4500
YZ35	73#	9.6	3.3	600	7400
YZ35	82#	12.7	3.3	600	12000
YZ35-13L	73#	9.6	3.3	600	7400
YZ35-13L	82#	12.7	3.3	600	12000
YZ35LS	73#	9.6	3.3	600	7400
YZ35LS	82#	12.7	3.3	600	12000

Test conditions:

1.Flow data testing environment for room temperature 20-25°C, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight through tube, suction range of 0.5 meters, the head is not more than 0.5 meters, the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

The above data is tested under normal temperature and pressure, the test hose is a silicone tube, and the test liquid is water. The data is for reference only, please refer to the actual situation.

For specific needs, please consult technical personnel. Technical parameters are subject to change without prior notice
