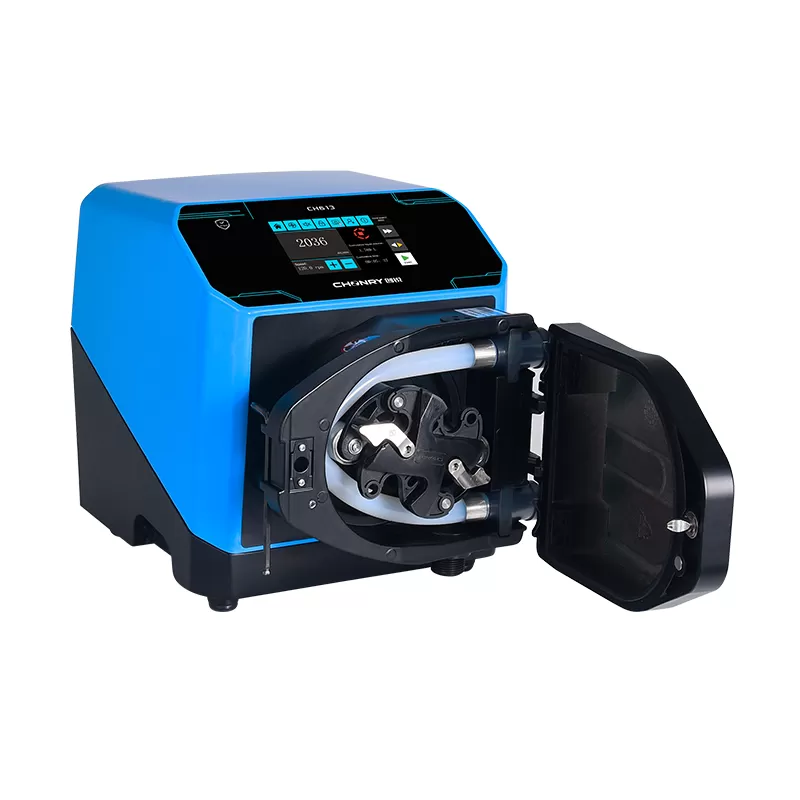

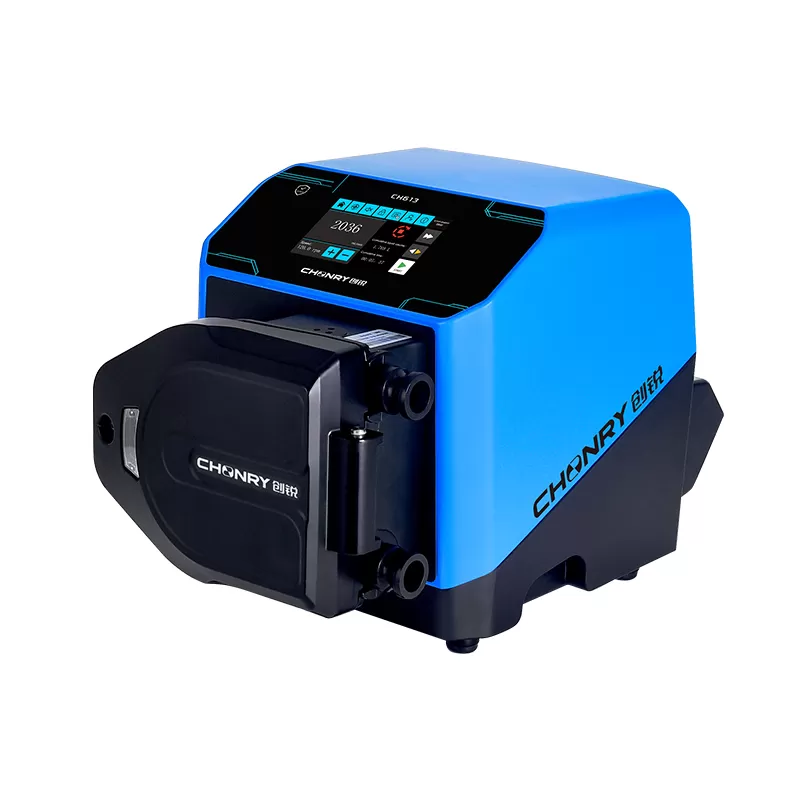

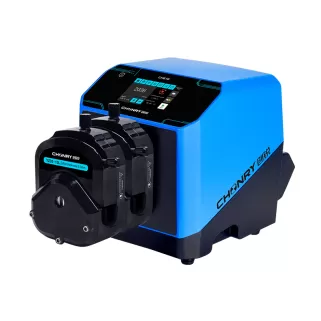

CH613 is an intelligent control high protection peristaltic pump. The intelligent system has transmission mode, timing mode, quantitative mode, and filling mode to meet different application requirements. It has a graphical human-machine interface, intuitive and convenient operation, and IP66 high protection level. It is designed to cope with complex and harsh industrial environments and is suitable for humid, dusty and other production scenarios to ensure long-term stable operation of the equipment under harsh conditions.

Products Features:

1. Die cast aluminum (surface sprayed) shell, dustproof, moisture-proof, corrosion-resistant.

2.IP66 high protection level, suitable for complex and harsh industrial production environments.

3.5-inch touch screen, clear viewing angle, simple and intuitive operation.

4. Max flow rate up to 18L/min.

5. Transmission mode, filling mode, quantitative/timing mode, one machine for multiple uses to meet different scene requirements.

6.Support RS485-Modbus RTU communication protocol, anal0g 0-10V,4-20mA can be set.

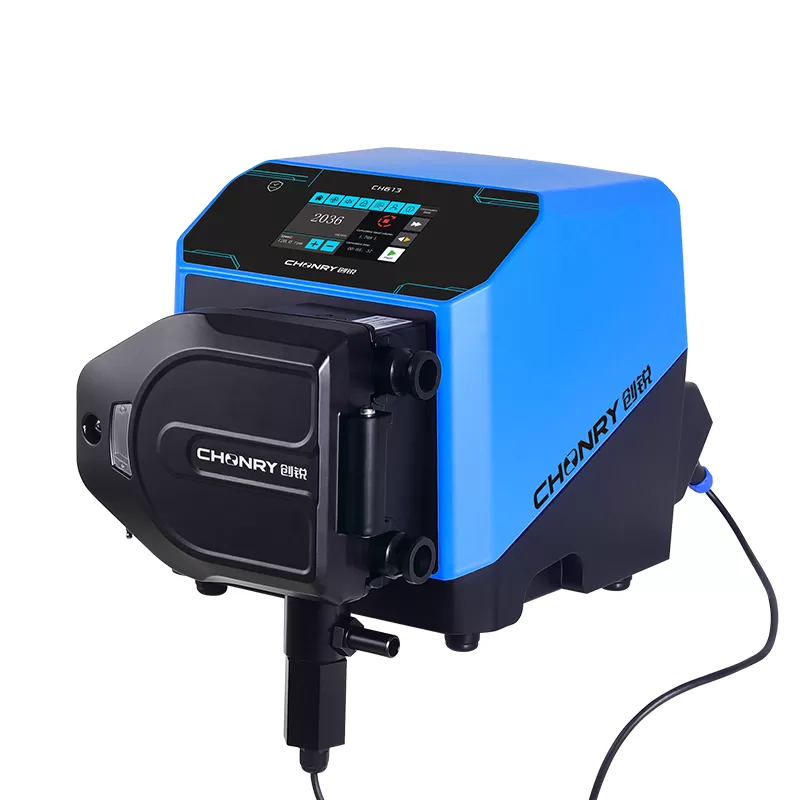

7. Equipped with id opening shutdown, liquid leakage detection, and drive failure alarm sensing technology to prevent failures in the process.

8. The system has three levels of user access rights to prevent unauthorized access and operation, improve safety efficiency, and comply with GMP requirements.

Technical Parameter
Driver Model	CH613
Adapter Pump Head	GY3512R、GY4012RE、GY4014RE、LP40-6
Max Speed	265rpm
Max Flow	18L/min
Speed Resolution	0.1rpm
Display Method	5-inch LCD screen, Chinese or English can be set
Control Method	Touch screen control
Work Mode	Transmission mode, timing mode, Quantitative model, Filling mode
Back Suction Angle	0°~3600°(0° means no back suction)
Back Suction Speed	10-265rpm
Rated Power	400W
Driver Size	372x286x308mm
Driver Weight	17.8kg (with sealing components)
Lock Screen Function	Yes
Leakage Detection Function	Yes (optional)
Supply Voltage	100-120V/200-240V 50/60Hz 1pH(Depends on regional power cord set and power supply)
External Control Interface	RS485-Modbus RTU communication protocol, analog 0-10V, 4-20mA
Storage Temperature	-25°C to 65°C
Ambient Temperature	5°C to 40°C
Protection Level	IP66

Pump Head Flow Parameter Table

Pump Head	Tube Model	Tube Material	Tube Specification	Max Speed	Max Flow	Max outlet Pressure
GY312R	26#	Silicone	6.4x3.2 mm	265rpm	3.2L/min	0.2MPa
	73#	Silicone	9.6x3.2 mm	265rpm	6.8L/min	0.2MPa
	82#	Silicone	12.7x3.2 mm	265rpm	10.6L/min	0.2MPa
	184#	Silicone	15.9x3.2 mm	265rpm	16.6L/min	0.2MPa

Continuous Hose, GY315R (2 rollers)

Pump Head	Tube Model	Tube Material	Tube Specification	Max Speed	Max Flow	Max outlet Pressure
GY4012RE	186#	Silicone	12x4 mm	265rpm	9L/min	0.2MPa
	188#	Silicone	17x4 mm	265rpm	16L/min	0.2MPa
	188#	Pharmed	17x4 mm	265rpm	18L/min	0.4MPa

Tube Assembly, GY4012RE (2 rollers)

Pump Head	Tube Model	Tube Material	Tube Specification	Max Speed	Max Flow	Max outlet Pressure
GY4014RE	186#	Silicone	12x4 mm	265rpm	8.7L/min	0.2MPa
	188#	Silicone	17x4 mm	265rpm	11L/min	0.2MPa
	188#	Pharmed	17x4 mm	265rpm	11L/min	0.4MPa

Tube Assembly, GY4014RE (4 rollers)

Pump Head	Tube Model	Tube Material	Tube Specification	Max Speed	Max Flow	Max outlet Pressure

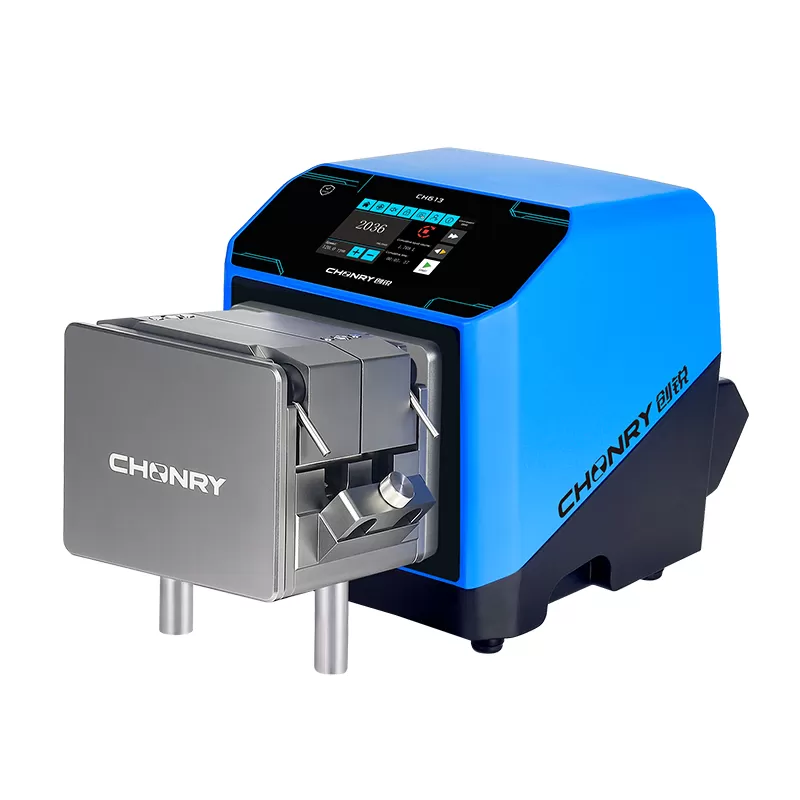

LP40-6	185#	Silicone	8x4 mm	265rpm	4.6L/min	0.2MPa
	185#	Pharmed	8x4 mm	265rpm	4.6L/min	0.2MPa
	186#	Silicone	12x4 mm	265rpm	8.5L/min	0.2MPa
	186#	Pharmed	12x4 mm	265rpm	8.5L/min	0.2MPa
	187#	Silicone	16x4 mm	265rpm	11.5L/min	0.2MPa
	187#	Pharmed	16x4 mm	265rpm	11.5L/min	0.2MPa

Note:The above data is tested under normal temperature and pressure, the test hose is a silicone tube, and the test liquid is water. The data is for reference only, please refer to the actual situation.
