Good sealing performance, reverse flow of fluid, low maintenance cost, and can be used with other equipment.
OEM Peristaltic Pump 12v-24v Stepper Motor Peristaltic Dosing Pump Compact Size, Small Flow Peristaltic Metering Pump
Chonry dispensing filling system peristaltic pumps are designed for medicine and chemical filling or be a part of filling machines. Support the multi channel peristaltic metering pumps.
The R&D team can carry out customized development according to different design schemes.
LCD touch screen, which can realize high-precision, smooth and pulsation-free liquid transmission.
Targeted production of products according to market demand, including adding pumps, gear pumps, etc.
Provide peristaltic pump hose options, such as platinum vulcanized silicone hose, the hose for cell research, etc.

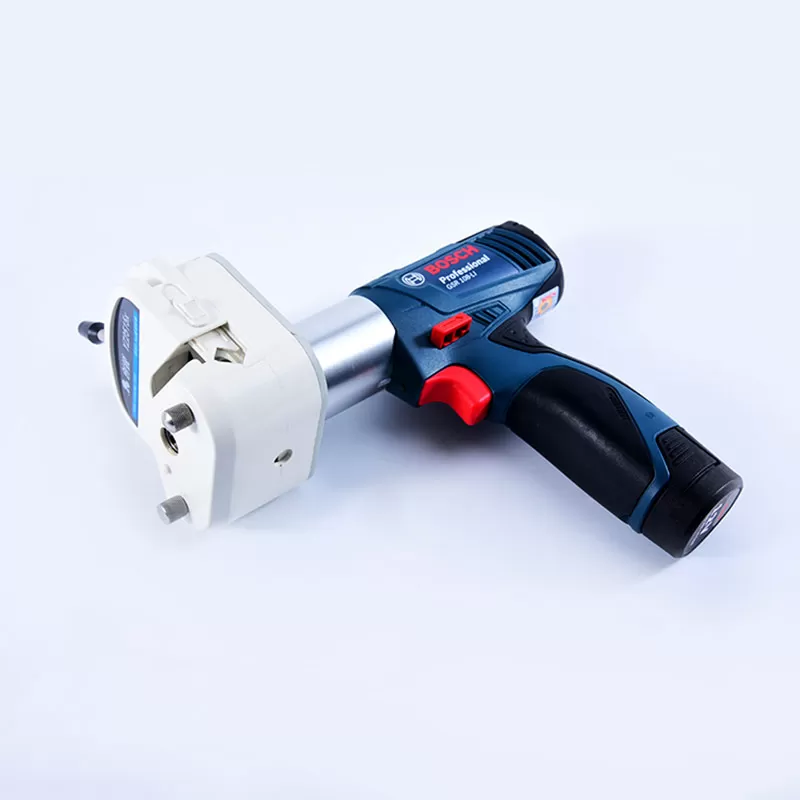

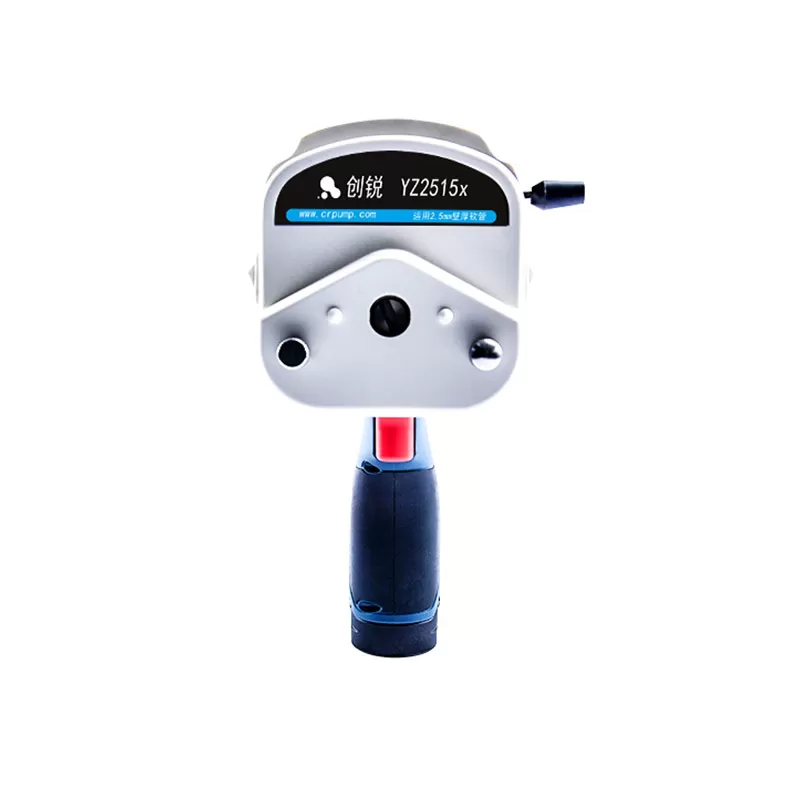

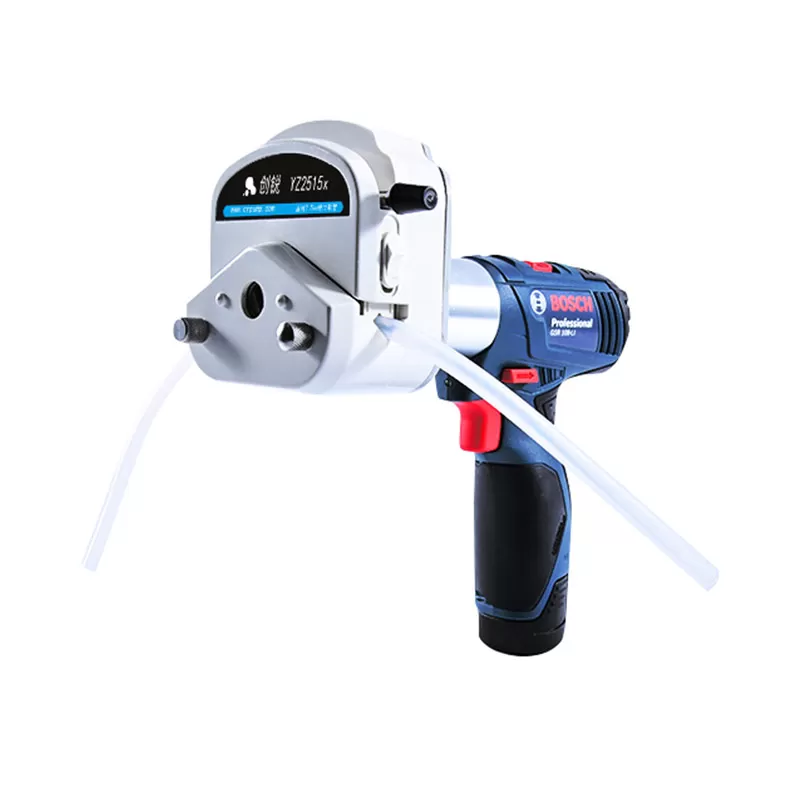

Chonry SC600 handle water sampling pump is applied for groundwater tests and stratified water quality. Compact in size and an easy-to-carry case. Various liquids can be transferred. Reversible forward and reverse.
Chonry SC600 pump is a handle water sampling peristaltic pump that is used for environmental water tests, river water sampling, stratified water quality, and well purging. It is a type of portable peristaltic pump. It supports the replaceable rechargeable meet outdoor and indoor applications. Chonry SC600 water sampling pump transfers the various liquids and speed control from low to high. The maximum lift of groundwater sampling is around 8m at sea level.
Features and Benefits
Small size and lightweight, easy to carry case
Powerful motor, adjustable high and low speed to meet different work needs
Reversible forward and reverse
Adapt to multiple pump heads such as YZ series, and suitable for various pump tubing
Suitable for various liquids, viscosity liquids, suspended liquids
Samples from depths of up to 26.25 ft (8 m)
Standard 2 batteries, rechargeable batteries, satisfy indoor and outdoor applications.
Portable peristaltic pump
Chonry SC600 water sampling peristaltic pump is widely applied to
- Environmental water test
- Sewage treatment
- Stratified water quality sampling
- Sampling of the suspended liquid containing tiny particles
|Sampling Pump Model||SC600|
|Suction Lift||8m (the medium is water, the suction below the water surface is not counted)|
|Working Environment||Outdoor, indoor|
|Voltage||DC10.8V rechargeable battery|
|Battery Life||20-30min (the specific time varies according to different pump heads/hose)|
|Total Weight||1.55kg (only body and pump head)|
|Pump Head||Gear||Max Speed||13#(0.8*1.6)||14#(1.6*1.6)||19#(2.4*1.6)||16#(3.1*1.6)||25#(4.8*1.6)||17#(6.4*1.6)||18#(7.9*1.6)|
|Pump Head||Gear||Max Speed||15#(4.8*2.4)||24#(6.4*2.4)|
