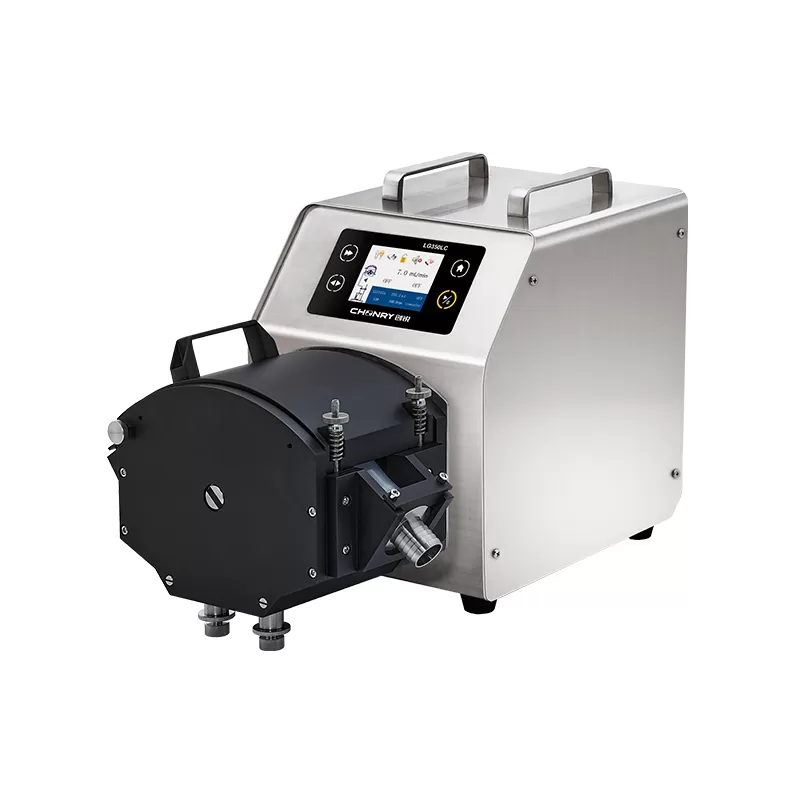

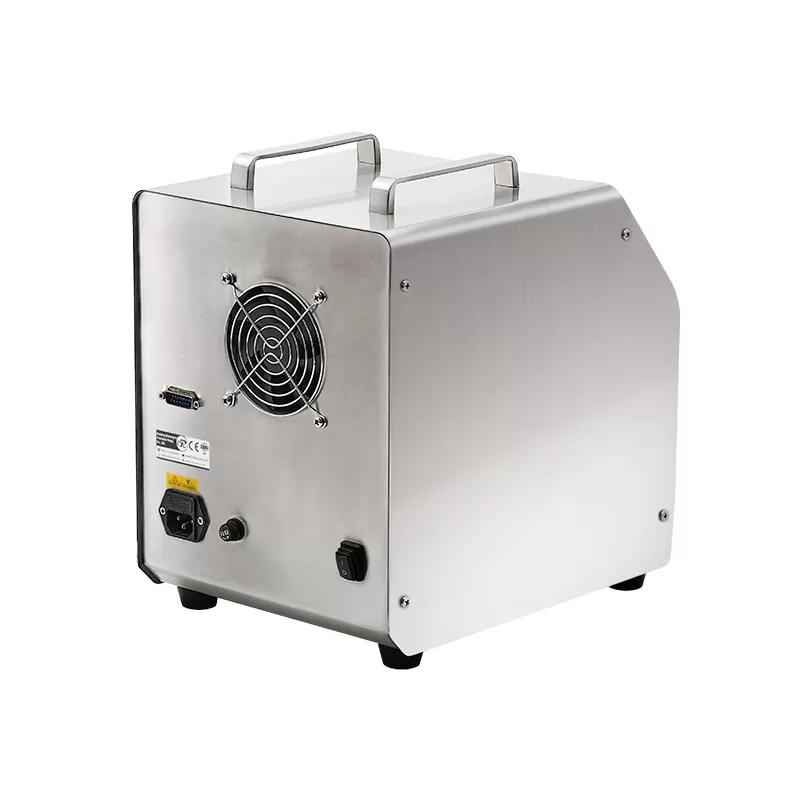

LG350LC Industrial Large Flow Peristaltic Pump

Flow rate: 2800-33000mL/min

LG350LC is a large-flow industrial peristaltic pump. The flow rate is from  2800 to 33000mL/min. It can be loaded with the KZ50 pump heads. IWidely used for food and beverage dispensing and filling and mining industry.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

LG350LC is a large-flow industrial peristaltic pump. The flow rate is from  2800 to 33000mL/min. It can be loaded with the KZ50 pump heads. It adopts a 3.5-inch screen. Easy touch operation. The shell is stainless, with corrosion and high-temperature resistance. Supporting various remote control modes such as RS485/MODBUS.Widely used for food and beverage dispensing and filling and mining industry.


Specification

• 3.5-inch color LCD, Chinese and English display, touch screen control. It has two working modes of transmission and distribution, and can perform repeated timing and quantitative filling.

• Can automatically save the control parameters when the last power failure.

• Compatible with KZ50 pump head, the maximum transmission flow can reach 33L/min.

• 9 sets of data can be stored for users.

• Support RS485/MODBUS communication protocol, analog control, foot switch control.


Application

Used in food industry, fluidized bed liquid supply, liquid medicine filtration, photovoltaic, chemical industry and other fields

Drive modelLG350LC
Max speed350rpm (reversible)
Max flow33000mL/min
Speed resolution0.1rpm
Speed modeTouch screen adjustment
Display methodColor LCD (Chinese and English optional)
Timing range0.1s-9999min
Quantitative range0.001mL-9999L
Back suction angle10°-720°(0° means no back suction)
Back suction speed10-300rpm
Power<750W
Drive size368X242X342.5(mm)
Drive Weight27kg
Power supplyAC220+10% (Standard) orAC110V+10% (optional)
External control interfaceDB-15
External control methodStart control/direction control/speed control (0-5V. 0-10V, 4-20mA optional) RS485 serial communication
Ambient temperature0-40℃
Protection class

IP31 (indoor use, avoid prolonged exposure to UV rays)



Pump HeadModelHoseID(mm)Wall Thickness(mm)Max Flow(ml/min)Max Speed(rpm)
KZ50LG350LC92#25.44.833000350
KZ50-SSLG350LC92#25.44.833000350


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
