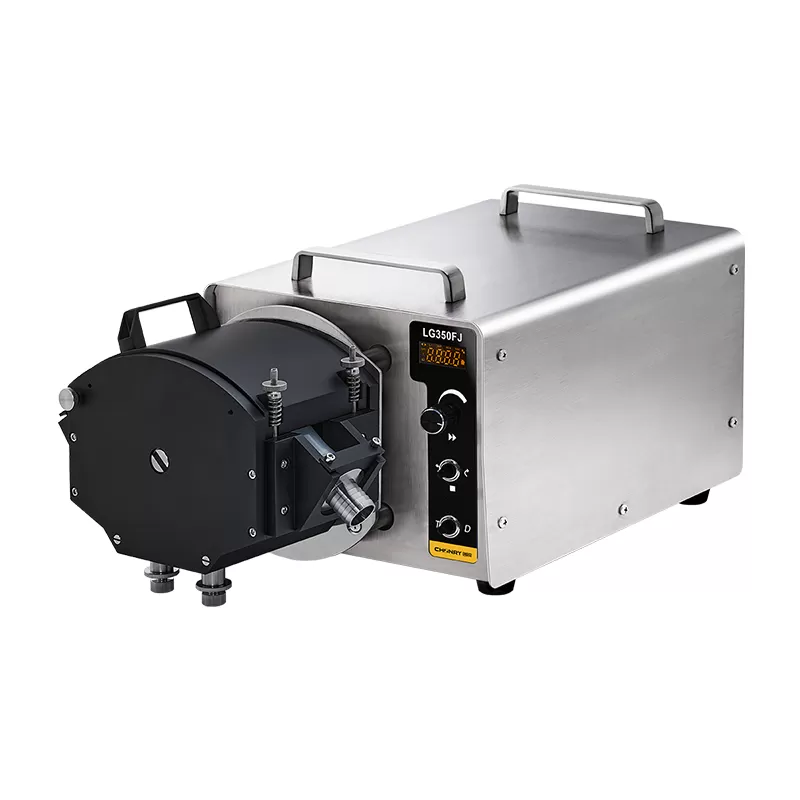

LG350FJ High Flow Peristaltic Pump

2800-33000mL/min

LG350FJ is a high-flow peristaltic pump. It can switch the transmission mode and distribution mode by adjusting the key position, adapting to different working environments, and installing a KZ50 pump head, the maximum flow can reach 33L, digital knob adjustment, and two-way large torque.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

LG350FJ is a peristaltic pump with a high large flow. It can switch the transmission mode and distribution mode by adjusting the key position and adapting to different working environments. It is installed with a KZ50 pump head and the maximum flow can reach 33L. Digital knob adjustment, and two-way large torque. The current flow or speed is displayed through a 4-digit LED, and the liquid volume can be calibrated. It supports the RS485/MODBUS communication protocol, and the knob adjusts the parameters. The operation is simple and convenient.


Specification

• By adjusting the key position, the two modes of transmission or distribution can be switched.

• Quick cleaning, filling and emptying of pipes.

• It can automatically save the control parameters when the last power fails.

• After setting the target flow, input the actual flow value, and the system will automatically perform flow correction.

• Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs.

• KZ50 pump head can be installed, the maximum transmission is 33L.


Application

It is used in industrial fermentation, fluid transportation such as superplasticizers and admixtures, and is suitable for large-flow sub-packaging environments.


Drive model: LG350FJ
Max speed:350rpm (reversible)
Max flow:33000mL/min
Speed resolution:0.1rpm
Display method:Four-digit LED displays current speed or flow
Speed mode:Digital knob to adjust the speed
Timing range0.1s-9999min
Quantitative range
0.001mL-9999L
Filling times0-9999t
Back suction angle10°-720°(0° means no back suction)
Back Suction speed10-300rpm
Power<750W
Drive size: 303X374X281(mm)
Drive weight27kg
Power supplyAC220+10% (Standard) orAC110V+10% (optional)
External control methodStart control/direction control/speed control (0-5V. 0-10V, 4-20mA optional) RS485 serial communication


Pump HeadModelHoseID(mm)Wall Thickness(mm)Max Flow(ml/min)Max Speed(rpm)
KZ50LG350FJ92#25.44.833000350
KZ50-SSLG350FJ92#25.44.833000350

Test conditions:

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the head is not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
