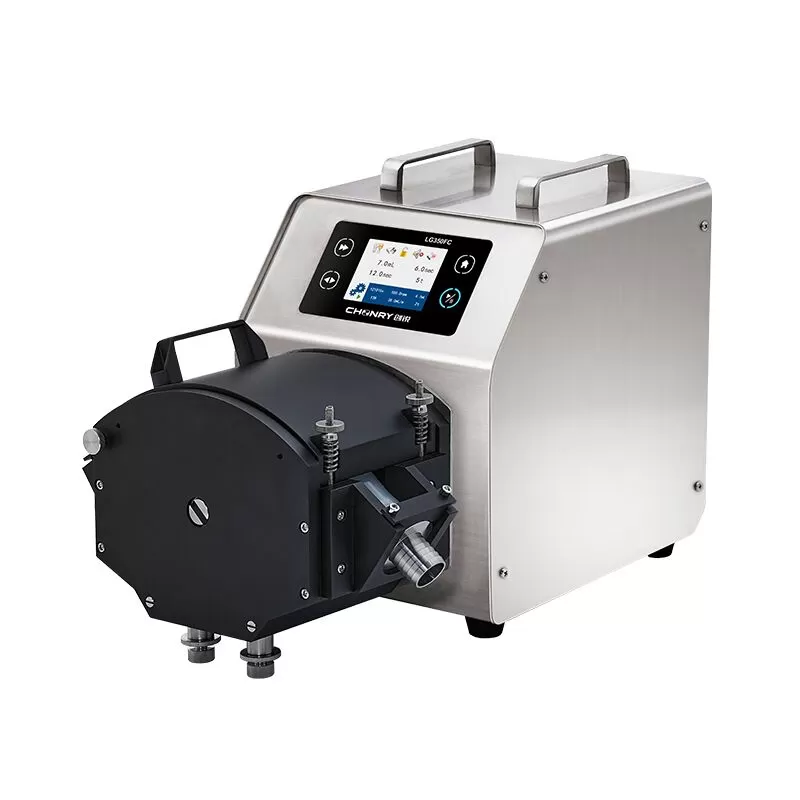

LG350FC High Volume Peristaltic Pump

Flow Rate: 33000mL/min

LG350FC is a type of industrial peristaltic pump with a high volume and dispensing peristaltic dosing pump.


Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

LG350FC is a type of industrial peristaltic pump with a high volume and dispensing peristaltic dosing pump.  It adopts a 3.5-inch color LCD touchscreen display. The operation is simple and intuitive. It has two working modes of liquid transmission and liquid distribution. It can be intelligently set according to different work needs. The motor torque is strong, and suitable for the KZ50 pump. The maximum flow can reach 33L, and it supports various remote control modes such as RS485-MODBUS RTU.


Specification

• 3.5-inch color LCD, Chinese and English display, touch screen control. It has two working modes of transmission and dispensing, and can perform repeated timing and quantitative filling.

• Can automatically save the control parameters when the last power fails.

• Compatible with the KZ50 pump head, the maximum transmission flow can reach 33L/min.

• 8 sets of data can be stored for users.

• Support RS485-MODBUS RTU communication protocol, analog control, foot switch control.


Application

Used in food industry, fluidized bed liquid supply, liquid medicine filtration, photovoltaic, chemical industry and other fields


Drive modelLG350FC
Max speed350rpm (reversible)
Max flow33000mL/min
Speed resolution0.1rpm
Speed modeTouch screen adjustment
Display methodColor LCD display (Chinese and English optional)
Timing Range0.1s-9999min
Quantitative range0.001mL-9999L
Filing times 0-9999t
Back Suction angle10°-720°( 0° means no back suction)
Back  Suction speed10-300rpm
Power supplyAC220+10% or AC110V+10% (optional)
Power<750W
External control interfaceDB-15
External control methodStart control/direction control/speed control (0-5V. 0-10V, 4-20mA optional) RS485 serial communication
Ambient temperature0-40℃
Drive size368X242X342.5(mm)
Drive weight27kg
Protection class IP31 (indoor use, avoid prolonged exposure to UV rays)


Pump HeadModelHoseID(mm)Wall Thickness(mm)Max Flow(ml/min)Max Speed(rpm)
KZ50LG350FC92#25.44.833000350
KZ50-SSLG350FC92#25.44.833000350


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
