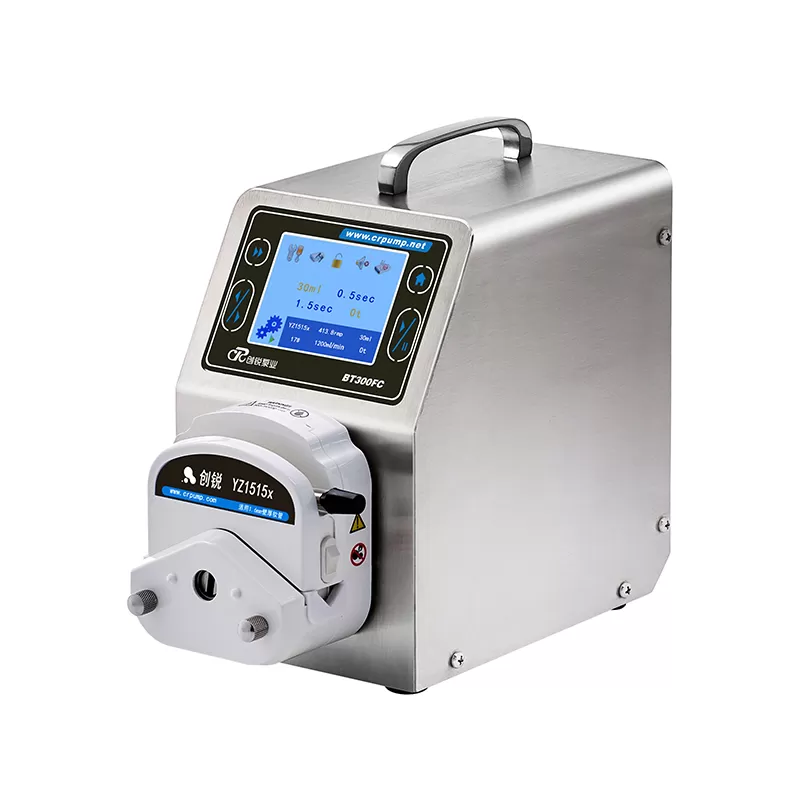

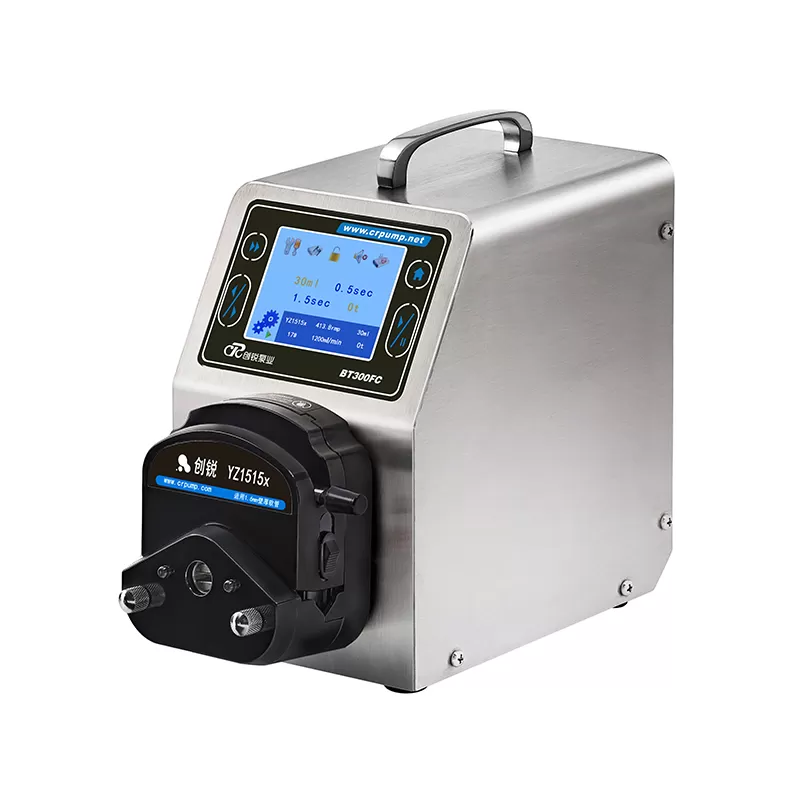

FC series is an intelligent distribution type peristaltic pump, which adopts 3.5-inch touch screen operation, intuitive data display, provides a variety of function settings, has two working modes of transmission and distribution, and can realize repeated timing and quantitative distribution. The stainless steel all-inclusive design is strong Durable, can store 9 sets of filling data, realize fast filling, and support various external control methods such as RS485/MODBUS communication protocol.

Specification

LCD touch

3.5-inch color LCD, Chinese and EnglishDisplay, touch screen control.

Flow calibration

With flow calibration function, it is suitable for transferring liquids with higher precision

Data storage

9 sets of data can be stored for users

Multiple working modes

Transmission mode, timing mode,

Quantitative mode, timed quantitative mode

Adapt to multiple pump heads

YZ, DG, TX series pump heads can be installed,Pump heads can be cascaded.

Support external control

Support RS485/MODBUS communication protocol, analog control, foot switch control

Application

It is mostly used in testing reagents, oral liquids, veterinary drugs and other pharmaceutical filling, or in chemical, food and other fields

Drive model: BT300FC

Max Speed: 300rpm(reversible)

Speed resolution: 0.1rpm

Power: <35W

Max flow: 1440mL/min

Display method: LCD(EN and CN)

Speed mode:

Touch screen + keypad

Timing range: 0.1s-9999min

Quantitative range: 0.001mL-9999L

Drive size: 212*142*238mm

Power supply: AC220±10% (standard) or AC110V±10% (optional)

External control method:

Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump head	Model	Max Speed	13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	BT100FC	100	7	27	51	82	170	290	380
YZ1515X	BT300FC	300	21	81	153	246	510	870	1140
YZ1515X	BT600FC	600	42	162	306	492	1020	1740	2280
Pump head	Model	Max Speed	15#(4.8*2.4)			24#(6.4*2.4)
YZ2515X	BT100FC	100	170			290
YZ2515X	BT300FC	300	510			870
YZ2515X	BT600FC	600	1020			1740
Pump head	Model	Max Speed	0.5*0.8	1*1	2*1	2.4*0.8		3*1
DG	BT100FC	100(10)	1.5	4	13	17		27
DG	BT100FC	100(6)	2	6	19	24		36

Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.

FC Series Brochure FC series is an intelligent distribution type peristaltic pump, which adopts 3.5-inch touch screen operation, intuitive data display, provides a variety of function settings, has two working modes of transmission and distribution, and can realize repeated timing and quantitative distribution.
