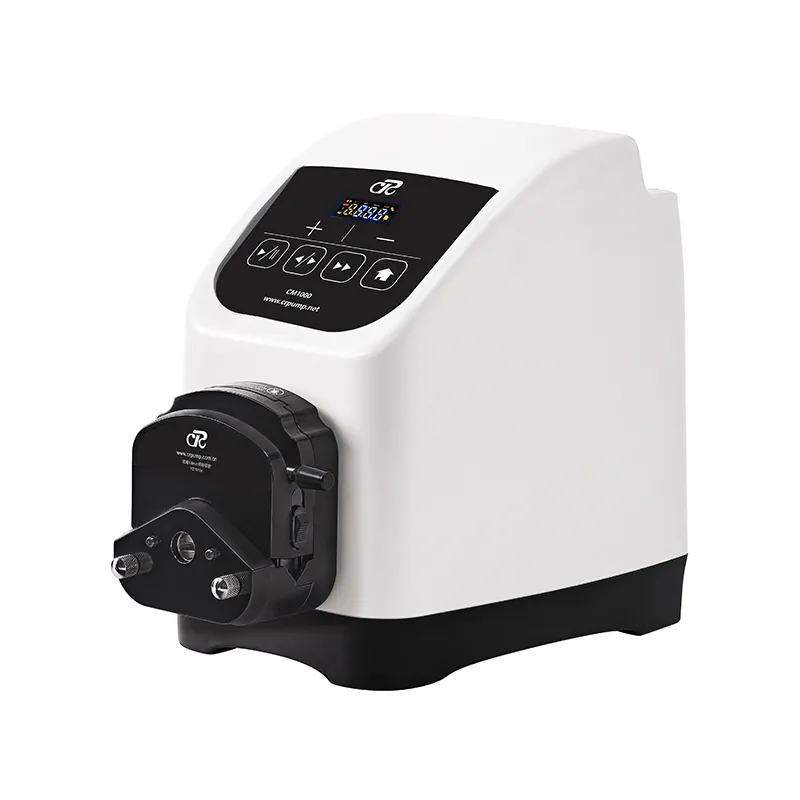

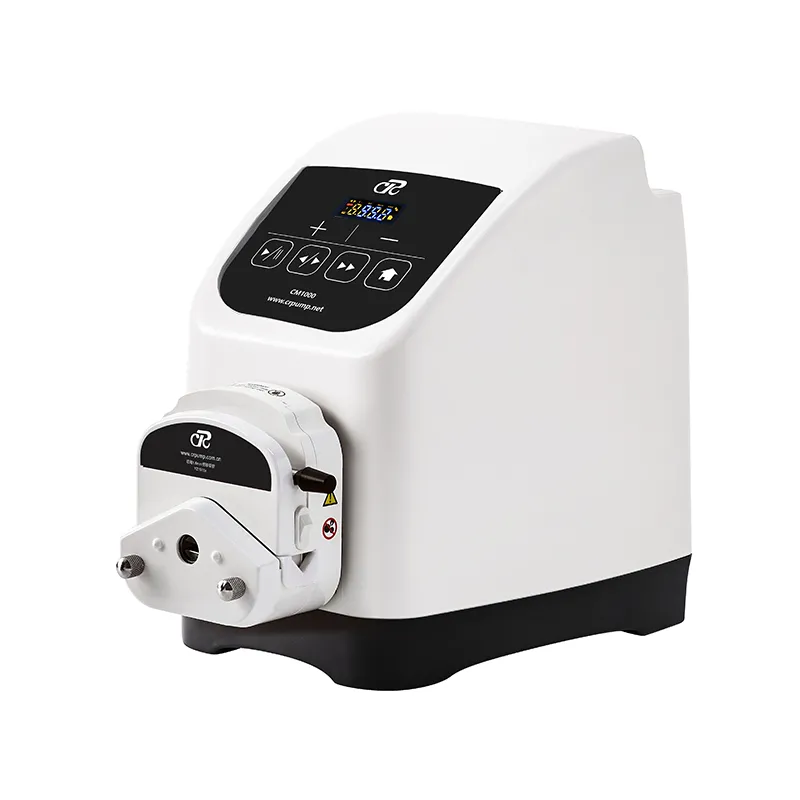

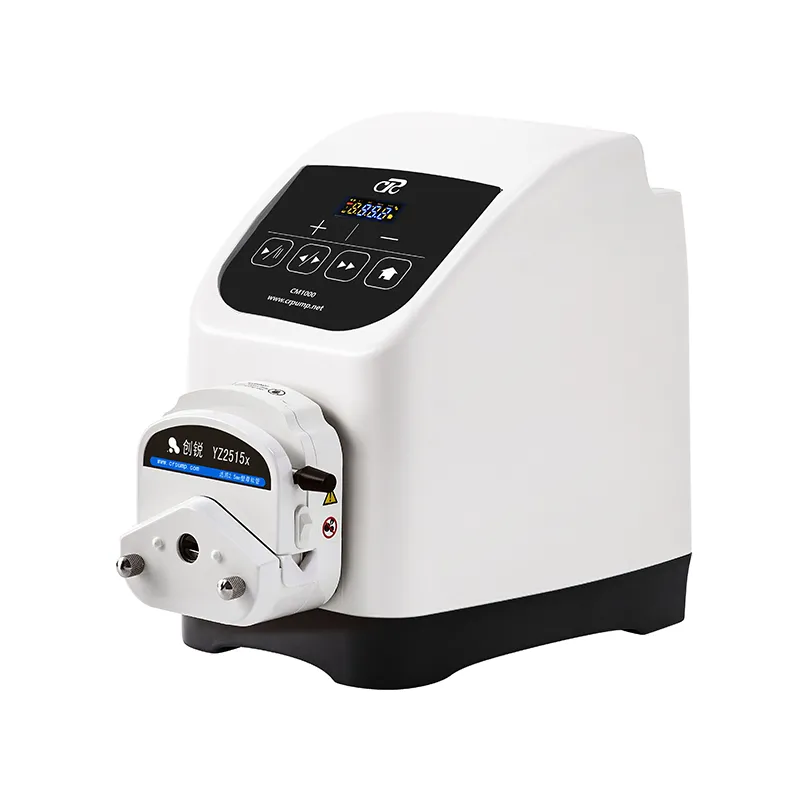

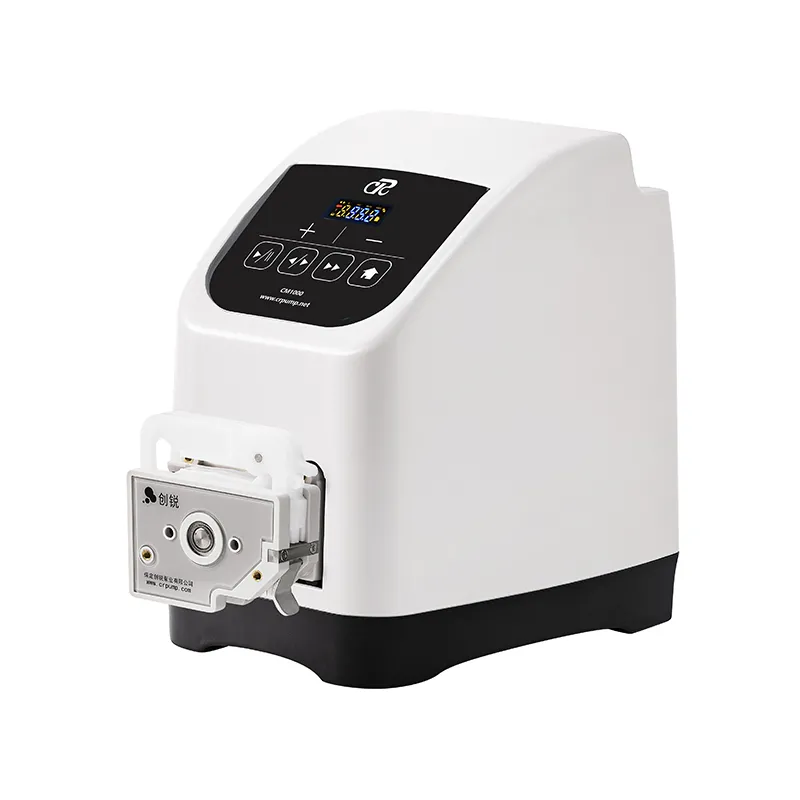

CM series is a digital button-type peristaltic pump, using button operation, 4-digit LED digital display of current flow or speed, with multiple functions such as power-off saving, flow calibration, one-button full speed, etc.
CM series is a digital button-type peristaltic pump, using button operation, 4-digit LED digital display of current flow or speed, with multiple functions such as power-off saving, flow calibration, one-button full speed, etc. It supports different external controls such as RS485/MODBUS communication protocol. It is suitable for a variety of pump heads such as YZ series, TX series, DG series, etc., to meet different work needs.
Easy to operate
Simple appearance, key operation, 4 positionsLED display flow or speed more intuitive
Power off save
Can automatically save the last power-downcontrol parameter
External control function
Support RS485/MODBUS communication protocol, analog control, foot switch control
Liquid volume calibration
The flow correction is carried out according to the target value and the actual value, Ensure transmission accuracy
One key full speed
Features a convenient full speed button forFill or empty pipes quickly
Adapt to multiple pump heads
Various pump heads such as YZ series, DG series and TX series can be installed
Used in photovoltaic, environmental protection, mineral processing, mechanical packaging, solvent extraction and other industries.
Drive model: CM1000
Max speed: 100rpm(reversible)
Speed resolution: 0.1rpm
Max flow: 480mL/min
Display method: 4-LED display
Speed mode: Membrane keys
Timing range: 0.1s-9999min
Quantitative range: 0.001mL-9999L
Drive size: 225*185*248mm
Power supply: AC220V±10% (standard) or AC110V±10% (optional)
External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
|Pump head||Model||Max Speed||13#|
|Pump head||Model||Max Speed||15#(4.8*2.4)||24#(6.4*2.4)|
|Pump head||Model||Max Speed||0.5*0.8||1*1||2*1||2.4*0.8||3*1|
Flow unit: (mL/min) hose model: (mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
For specific needs, please consult Chuangrui Company.
