MH series is a dual-mode push-button peristaltic pump, the button operation is simple and convenient, 4-digit LED displays the current flow or speed
MH series is a dual-mode push-button peristaltic pump, the button operation is simple and convenient, 4-digit LED displays the current flow or speed, with liquid volume calibration, power-off memory, one-button full speed and other functions, can be installed YZ series, DG series, TX series and other pump heads, support RS485/MODBUS communication protocol, analog control, foot control.
Specification
Easy to use
Simple appearance, key operation, intuitive interface
Power off save
Can automatically save the control parameters when the last power failure
Clear interface
4-digit LED display flow or speed
One key full speed
Features a convenient full speed button for quickly filling or emptying the tube
External control function
Support RS485/MODBUS communication protocol, analog control, foot switch control
Adapt to multiple pump heads
Various pump heads such as YZ series, DG series and TX series can be installed
Application
It is used in universities and laboratories, water treatment sampling, chromatography liquid supply matching, industrial raw material addition, etc.

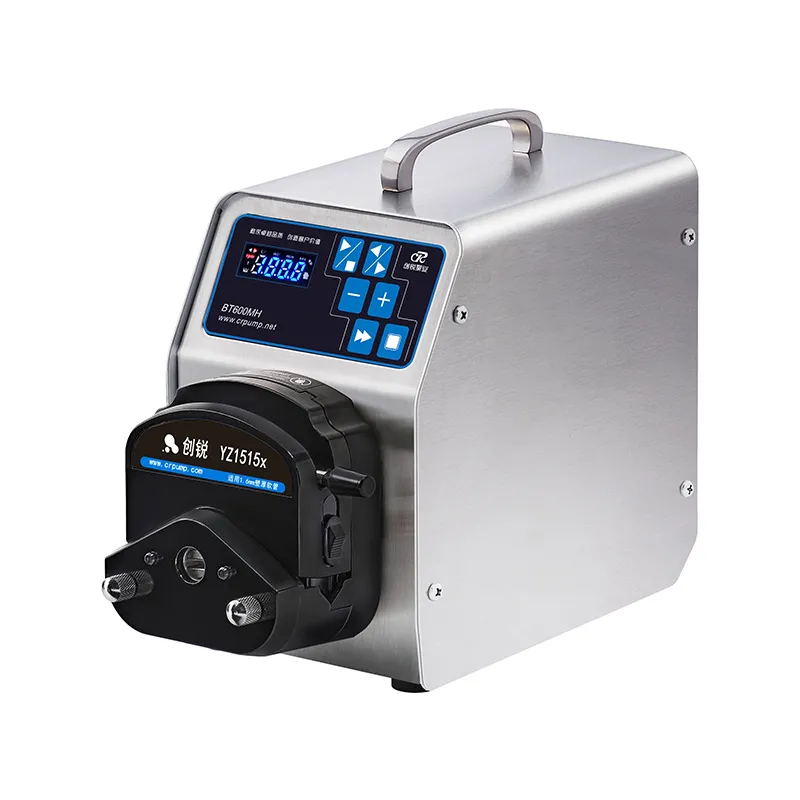

Drive model: BT600MH
Max Speed: 600rpm(reversible)
Max Flow: 2280mL/min
Power: <50w
Speed mode: Membrane key speed regulation
Display method: 4-digit LED displays the current speed/flow
Suction angle: 10°-720°
Suction speed: 10-300rpm

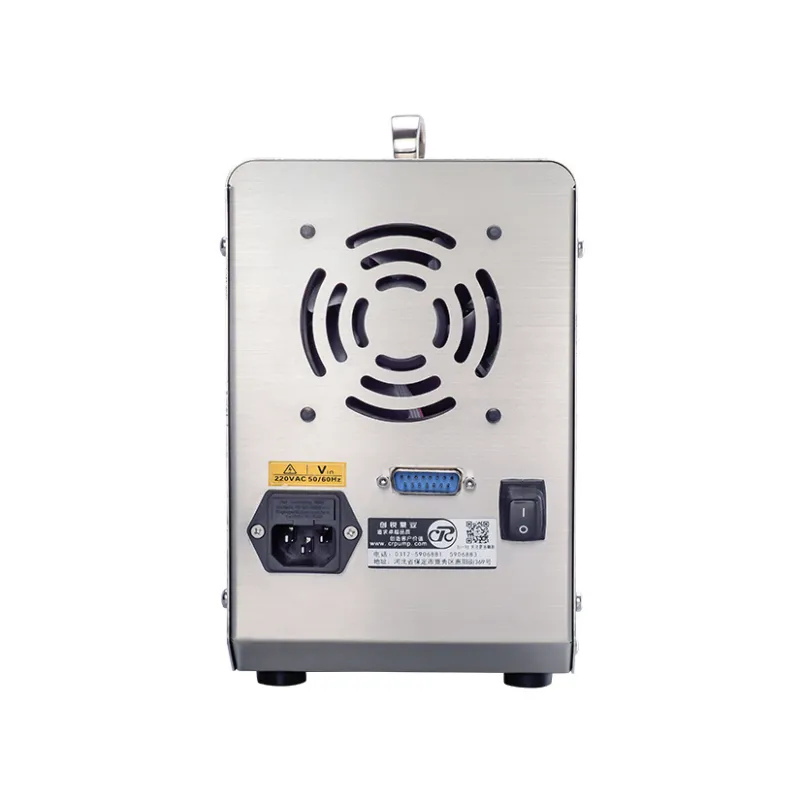

Power supply: AC220V±10% (standard) or AC110V±10% (optional)
External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Drive weight: 3.98kg
Pump head | Model | Max Speed | 13#(0.8*1.6) | 14# (1.6*1.6) | 19# (2.4*1.6) | 16# (3.1*1.6) | 25# (4.8*1.6) | 17# (6.4*1.6) | 18# (7.9*1.6) |
YZ1515X | BT100MH | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 |
YZ1515X | BT300MH | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 |
YZ1515X | BT600MH | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 |

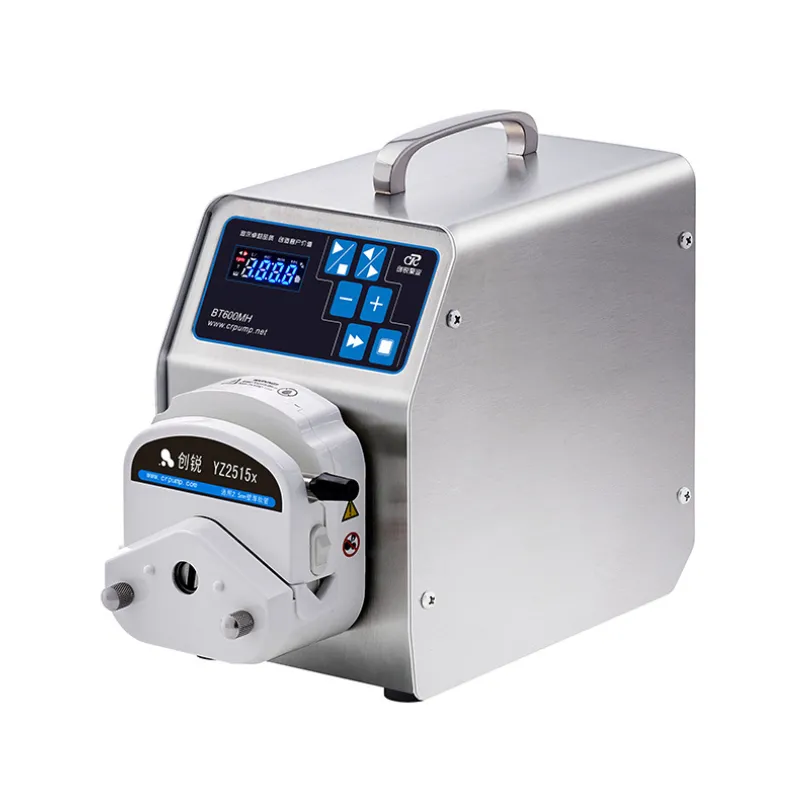

Pump head | Model | Max Speed | 15#(4.8*2.4) | 24#(6.4*2.4) | |||||
YZ2515X | BT100MH | 100 | 170 | 290 | |||||
YZ2515X | BT300MH | 300 | 510 | 870 | |||||
YZ2515X | BT600MH | 600 | 1020 | 1740 | |||||
Pump head | Model | Max Speed | 0.5*0.8 | 1*1 | 2*1 | 2.4*0.8 | 3*1 | ||
DG | BT100MH | 100(10) | 1.5 | 4 | 13 | 17 | 27 | ||
DG | BT100MH | 100(6) | 2 | 6 | 19 | 24 | 36 |
Flow unit: (mL/min) hose model: (mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
For specific needs, please consult Chuangrui Company.
