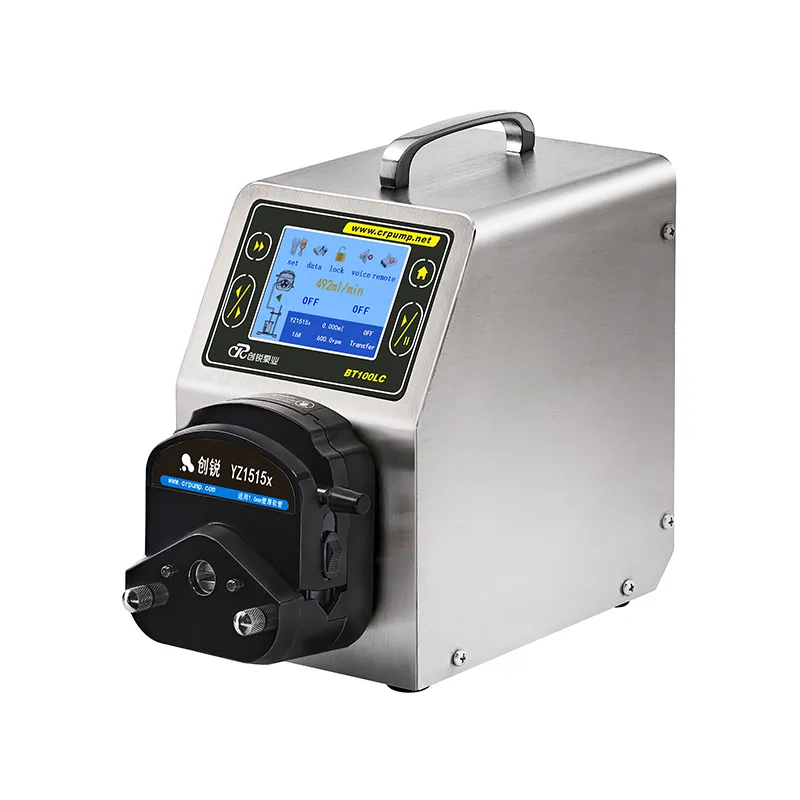

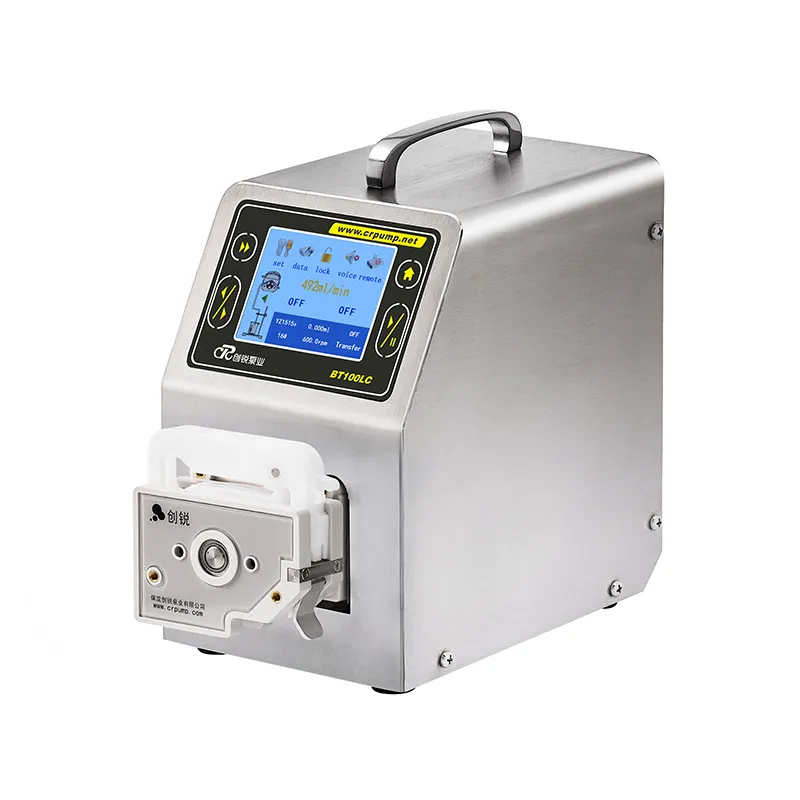

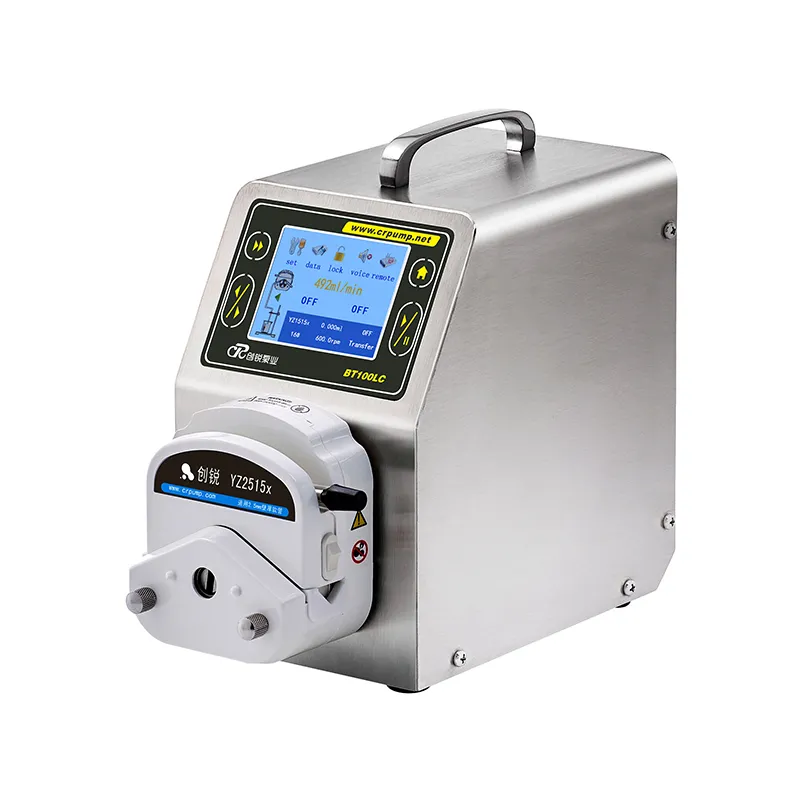

BT100LC Intelligent Flow Type Peristaltic Pump

The LC series is an intelligent flow type peristaltic pump. The stainless steel all-inclusive design is sturdy and durable. The 3.5-inch color LCD screen is touch-controlled and has a variety of working modes.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

The LC series is an intelligent flow type peristaltic pump. The stainless steel all-inclusive design is sturdy and durable. The 3.5-inch color LCD screen is touch-controlled and has a variety of working modes. It can display the transmission status, flow data, setting parameters, and transmission direction with animation on the same screen., The storage function can save 9 groups of filling data, realize fast filling, and support various external control methods such as RS485/MODBUS communication protocol.


Specification

LCD touch

3.5-inch color LCD, Chinese and EnglishDisplay, touch screen control.


Flow calibration

With flow calibration function, it is suitable for transferring liquids with higher precision


Data storage

9 sets of data can be stored for users


Multiple working modes

Transmission mode, timing mode, Quantitative mode, timed quantitative mode


Adapt to multiple pump heads

YZ, DG, TX series pump heads can be installed,Pump heads can be cascaded.


Support external control

Support RS485/MODBUS communication protocol, analog control, foot switch control


Application

Used in laboratories, biopharmaceuticals, printing, mineral processing and other fields.

Drive model: BT100LC

Max Speed: 100rpm(reversible)

Speed resolution: 0.1rpm

Max flow: 480mL/min

Display method: LCD(EN and CN)

Speed mode:

Touch screen + keypad

Timing range: 0.1s-9999min

Quantitative range: 0.001mL-9999L

Power: <22W

Drive size: 212*142*238mm

Power supply: AC220±10% (standard) or AC110V±10% (optional)

External control method:

Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional)

Pump headModelMax Speed13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XBT100LC1007275182170290380
YZ1515XBT300LC30021811532465108701140
YZ1515XBT600LC60042162306492102017402280
Pump headModelMax Speed15#(4.8*2.4)24#(6.4*2.4)
YZ2515XBT100LC100170290
YZ2515XBT300LC300510870
YZ2515XBT600LC60010201740
Pump headModelMax Speed0.5*0.81*12*12.4*0.83*1
DGBT100LC100(10)1.54131727
DGBT100LC100(6)26192436


Flow unit: (mL/min) hose model: (mm)


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
