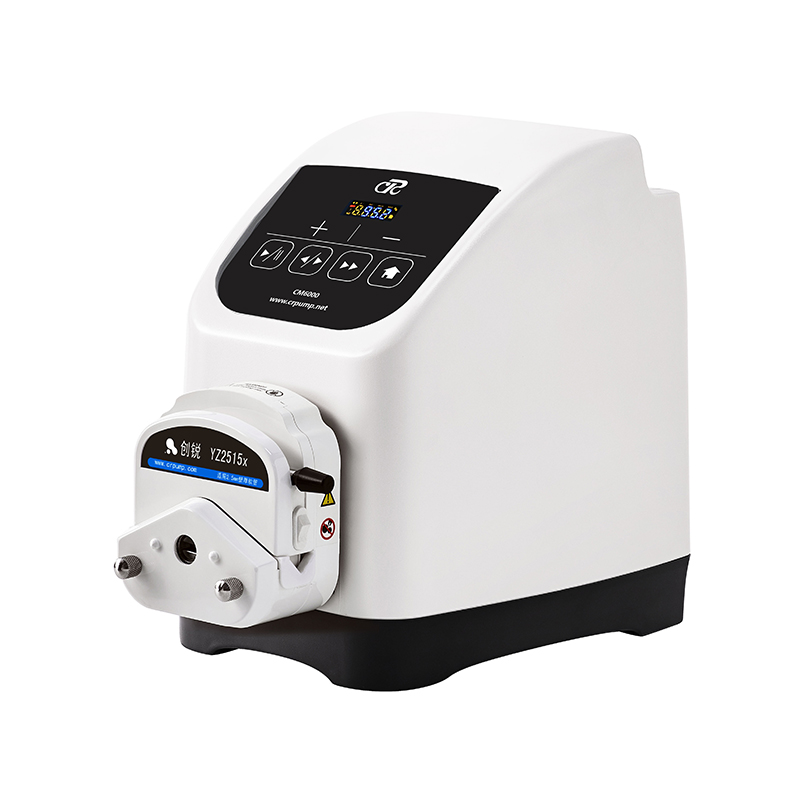

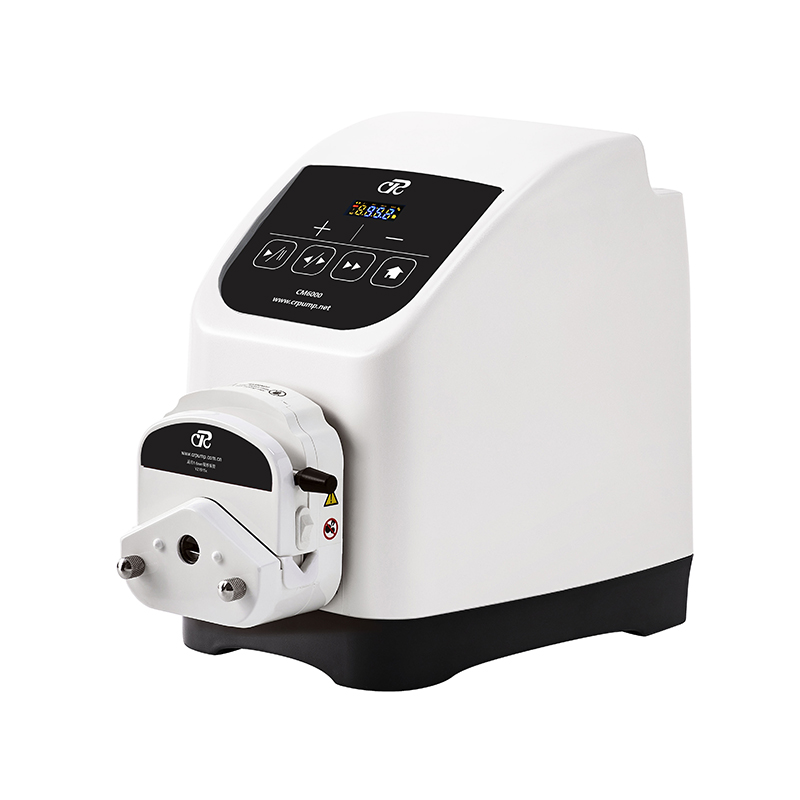

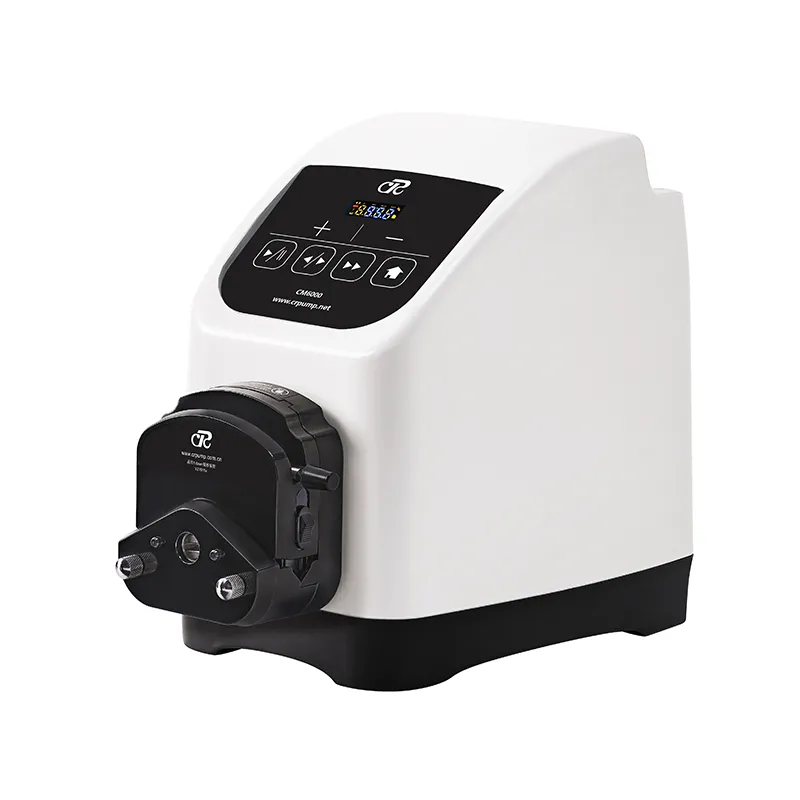

CM6000 Digital Button Type Peristaltic Pump

CM6000 Digital Button Type Peristaltic Pump

CM series is a digital button-type peristaltic pump, using button operation, 4-digit LED digital display of current flow or speed, with multiple functions such as power-off saving, flow calibration, one-button full speed, etc.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

CM series is a digital button-type peristaltic pump, using button operation, 4-digit LED digital display of current flow or speed, with multiple functions such as power-off saving, flow calibration, one-button full speed, etc. It supports different external controls such as RS485/MODBUS communication protocol. It is suitable for a variety of pump heads such as YZ series, TX series, DG series, etc., to meet different work needs.


Specification

Easy to operate

Simple appearance, key operation, 4 positionsLED display flow or speed more intuitive


Power off save

Can automatically save the last power-downcontrol parameter


External control function

Support RS485/MODBUS communication protocol, analog control, foot switch control


Liquid volume calibration

The flow correction is carried out according to the target value and the actual value, Ensure transmission accuracy


One key full speed

Features a convenient full speed button forFill or empty pipes quickly


Adapt to multiple pump heads

Various pump heads such as YZ series, DG series and TX series can be installed


Application

Used in photovoltaic, environmental protection, mineral processing, mechanical packaging, solvent extraction and other industries.

Drive model: CM6000

Max speed: 600rpm(reversible)

Speed resolution: 0.1rpm

Max flow: 2280mL/min

Display method: 4-LED display

Speed mode: Membrane keys

Timing range: 0.1s-9999min

Quantitative range: 0.001mL-9999L

Power: ＜50W

Drive size: 225*185*248mm

Power supply: AC220V±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump headModelMax Speed13#
(0.8*1.6)		14#
(1.6*1.6)		19#
(2.4*1.6)		16#
(3.1*1.6)		25#
(4.8*1.6)		17#
(6.4*1.6)		18#
(7.9*1.6)
YZ1515XCM10001007275182170290380
YZ1515XCM300030021811532465108701140
YZ1515XCM600060042162306492102017402280
Pump headModelMax Speed15#(4.8*2.4)24#(6.4*2.4)
YZ2515XCM1000100170290
YZ2515XCM3000300510870
YZ2515XCM600060010201740
Pump headModelMax Speed0.5*0.81*12*12.4*0.83*1
DGCM1000100(10)1.54131727
DGCM1000100(6)26192436


Flow unit: (mL/min) hose model: (mm)


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.

CM Series Brochure
CM Series Brochure CM series is a digital button-type peristaltic pump, using button operation

CT1000 Series Peristaltic Pump

None

Tags:

Peristaltic Pump
Related Products

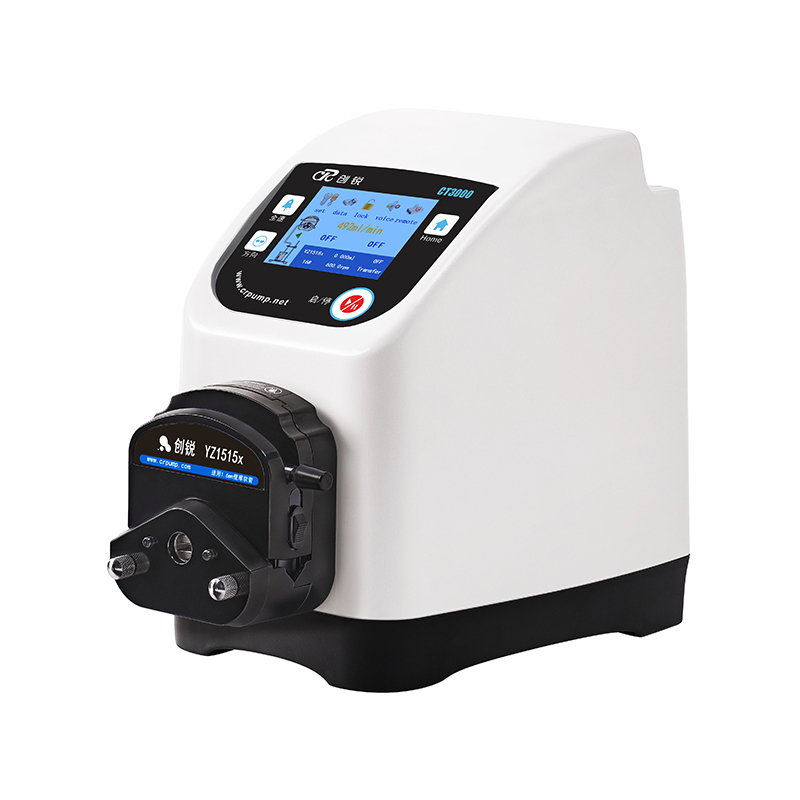

CT3000 Lab Intelligent Flow Peristaltic Pump CT3000 Lab Intelligent Flow Peristaltic Pump CT series is a Lab intelligent flow type peristaltic pump with beautiful appearance, 3.5-inch color touch screen with dual display in Chinese and English, can perform flow calibration

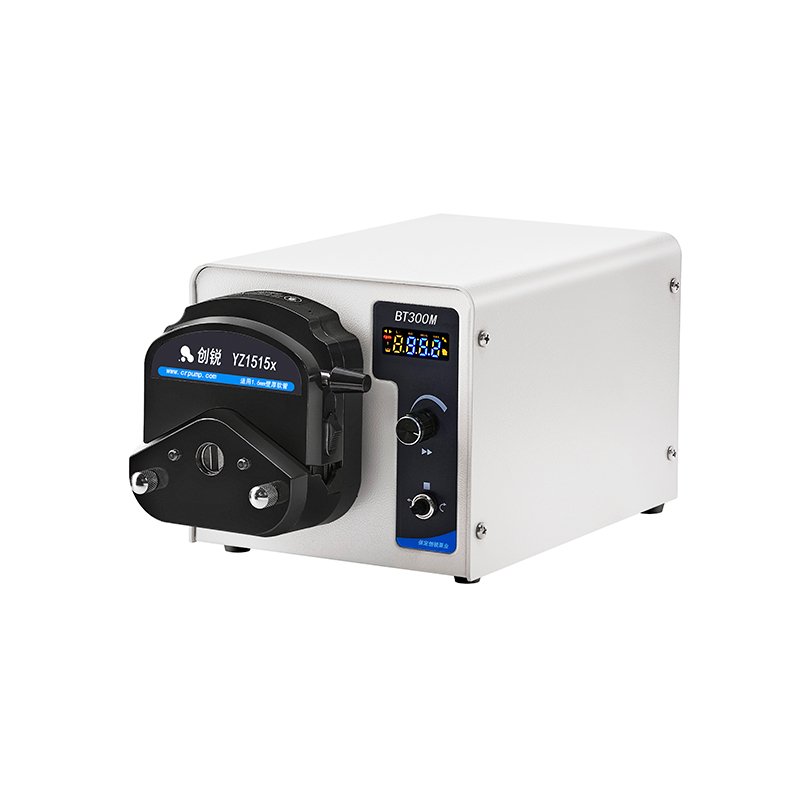

BT300M Digital Speed Peristaltic Pump BT300M Digital Speed Peristaltic Pump The M series is a digital speed type peristaltic pump. It displays the current flow or speed through a 4-digit LED, and can perform liquid volume calibration.
CM3000 Digital Button Series Peristaltic Pump CM3000 Digital Button Series Peristaltic Pump CM series is a digital button-type peristaltic pump, using button operation, 4-digit LED digital display of current flow or speed, with multiple functions such as power-off saving, flow calibration, one-button full speed, etc.

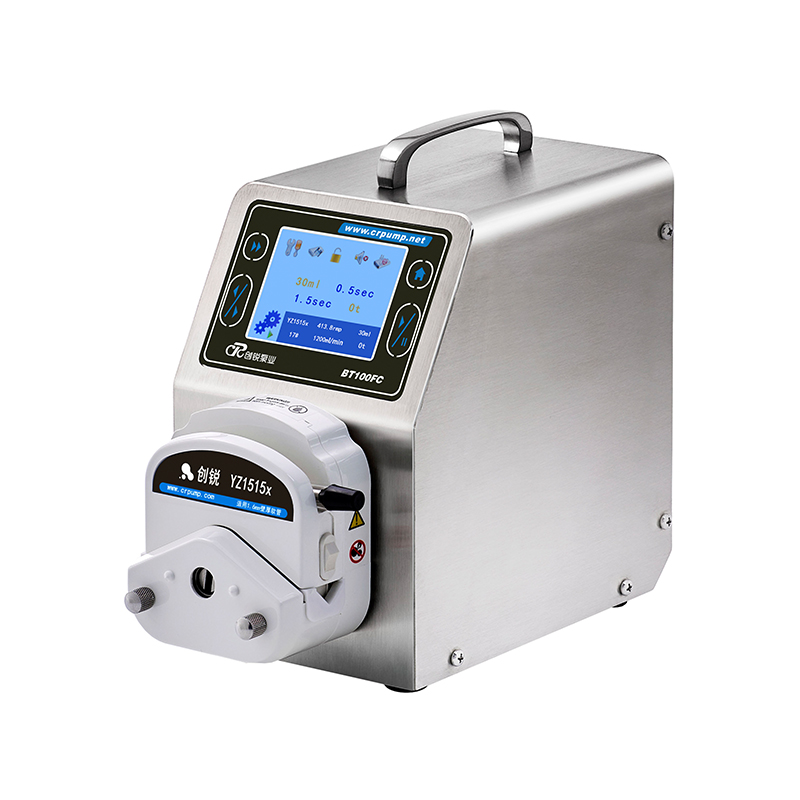

BT100FC Intelligent flow type peristaltic pump BT100FC Intelligent flow type peristaltic pump FC series is an intelligent dispensing type peristaltic pump. It has two working modes of filling and dispensing, and can realize repeated timing and quantitative distribution.
