BT300M Peristaltic Pump Liquid Constant Transfer 0.007-1440mL/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

BT300M is a type of mid flow peristaltic pump. The flow rate range is from 0.007 to 1440mL/min. It is the best solution for medical liquids and chemical metering. Self-primming and compact size. Easy to used drives offer precise speed control and a digital display of rpm. BT300M adopts easy knob operation. Smart flow calibration function offers precise flow delivers. Fewer tubing changes. It can be loaded with YZ1515X, YZ2515X and DG series pump heads. Support RS485/MODBUS communication protocol, simple operation, and convenience.

Features:

Minimalist operation: Low power consumption motor, the digital knob is easy to operate, long life

External control operation: With RS485/MODBUS communication protocol, analog control

Flow calibration: Multiple calibrations can be performed to reduce flow rate errors and ensure flow accuracy

Adapt to multiple pump heads: Various pump heads such as YZ series, DG series and TX series can be installed

Power-off memory: Can automatically save the control parameters when the last power failure

Full-speed function: Features a convenient full-speed button for quickly filling or emptying the hose

Application

It can be used in Used for Laboratory liquid analysis/sapphire grinding liquid/ Polishing fluid transfer/liposuction pump

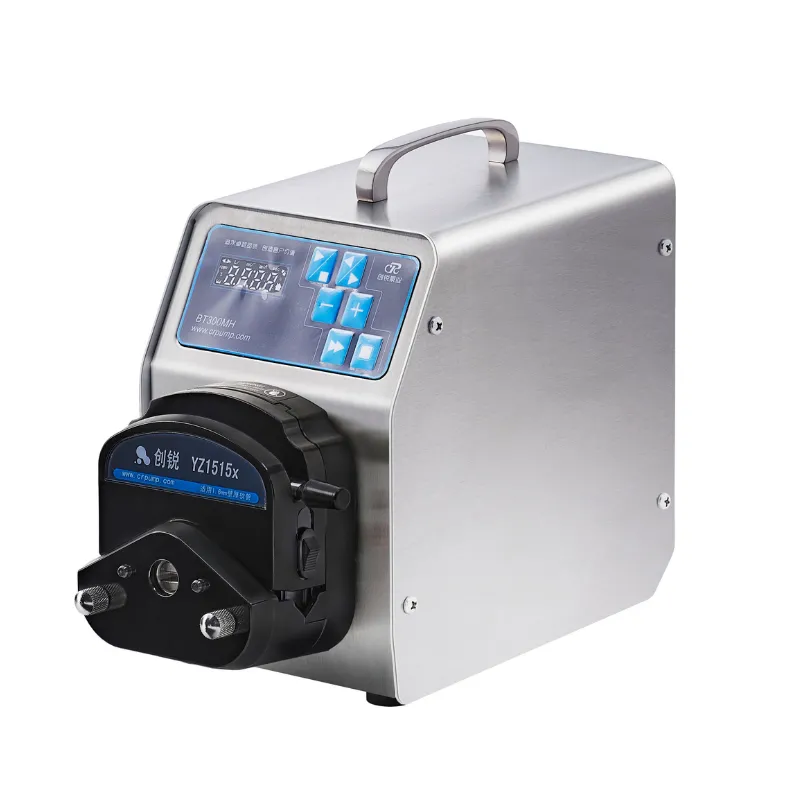

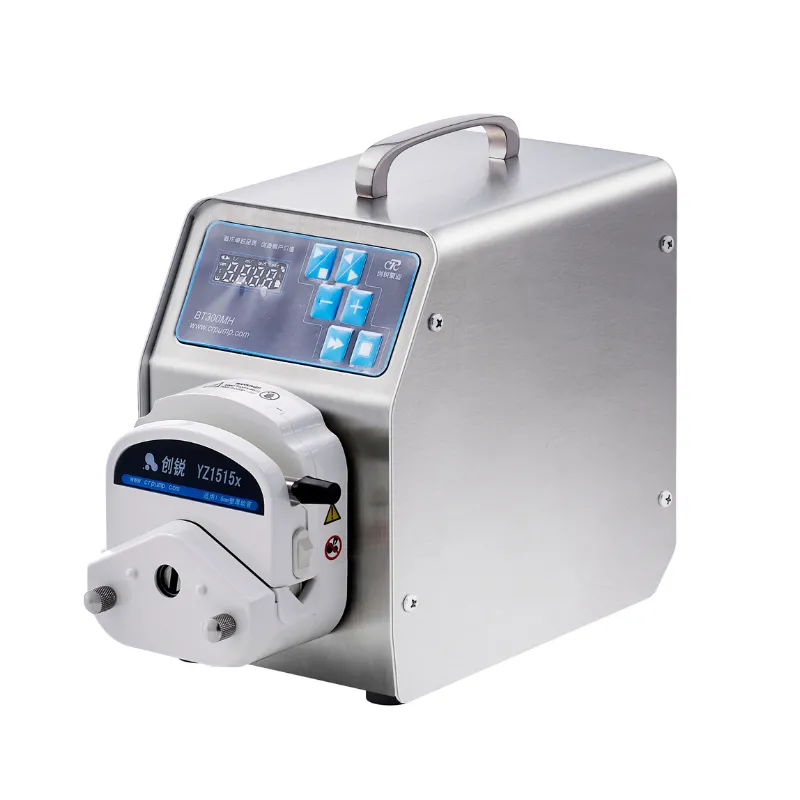

BT300M Mid Flow Peristaltic Pump

Drive model: BT300M

Max Speed: 300rpm(reversible)

Max Flow: 1440mL/min

Drive size: 234*154*143mm

Drive weight: 4.3kg

Display method: 4-digit LED displays the current speed/flow

Speed mode: Digital knob to adjust the speed

Power supply: AC220V±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump head	Model	Max Speed	13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	BT100M	100	7	27	51	81	170	290	380
YZ1515X	BT300M	300	21	81	153	246	510	870	1140
YZ1515X	BT600M	600	42	162	306	492	1020	1740	2280
Pump head	Model	Max Speed	15#(4.8*2.4)			24#(6.4*2.4)
YZ2515X	BT100M	100	170			290
YZ2515X	BT300M	300	510			870
YZ2515X	BT600M	600	1020			1740
Pump head	Model	Max Speed	0.5*0.8	1*1	2*1	2.4*0.8		3*1
DG	BT100M	100(10)	1.5	4	13	17		27
DG	BT100M	100(6)	2	6	19	24		36

Flow unit: (mL/min) hose model:(mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.
