BT100FJ Easy Load Peristaltic Pump 480mL/min Knob Operation

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

BT100FJ easy load peristaltic tube pump. Compact size. Variable speed 0-100rpm. Easy Knob Operation. Chonry is the leading peristaltic pumps manufacturer in China, specializing in providing a wide range of flow-rate peristaltic pumps for the past 14 years. BT100FJ can preset the number of times of distribution, distribution time, etc., which is convenient for users to use. It adopts a digit LED to display the current flow or speed. It has a suction function and is powered off. Memory, intelligent calibration, and other functions. BT100FJ can be installed with YZ series, DG series, TX series, and other pump heads, support RS485/MODBUS communication protocol, analog control, and foot control.

Specification

Multiple modes: Provides distribution and transfer modes for ease of use

Power off save: This can automatically save the control parameters when the last power failure

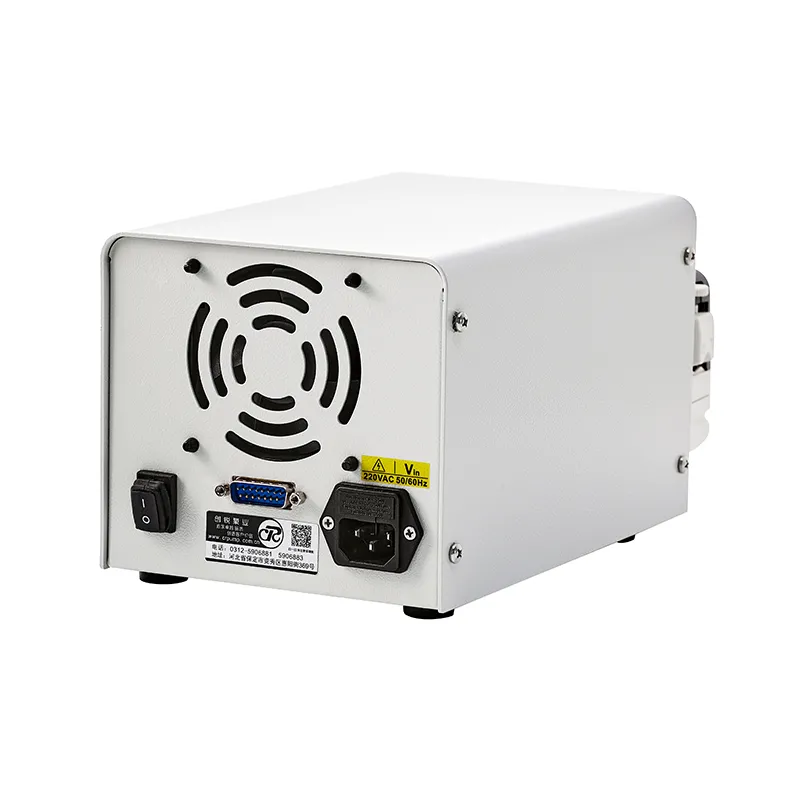

External control function: Support RS485/MODBUS communication protocol, analog control, foot switch control

Suction function: In dispensing mode, the pump can be customized to reverse after shutdown to prevent liquid dripping

Full speed function: Full speed at the push of a knob for quick emptying or filling of pump tubing

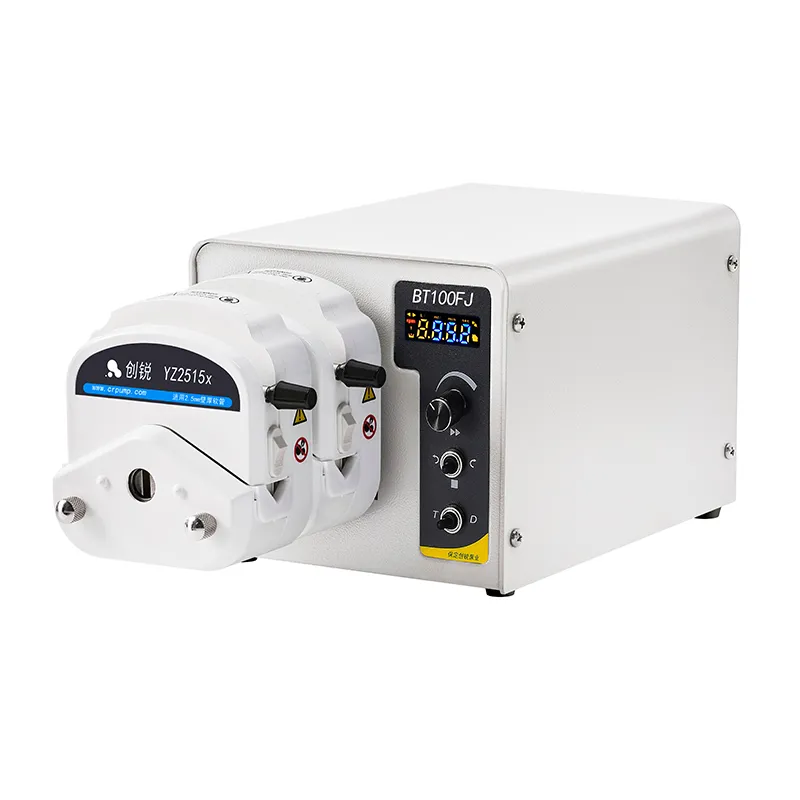

Adapt to multiple pump heads: YZ series, TX series, DG series and other pump heads can be installed to meet different flow requirements

Application

It can be used for the food industry, the mining industry transferring abrasive slurry, and the chemical industry transferring of corrosive and abrasive chemicals.

Drive model	BT100FJ
Max speed	100rpm（reversible）
Max flow	480mL/min
Speed resolution	0.1rpm
Speed mode	Digital knob adjust the speed
Display method	4-digit LED displays current speed/flow
Timing range	0.1s-9999min
Quantitative range	0.001ml-9999L
Filling times	0-9999t
Suction angle	10°-720°(0° means no bacj suction)
Suction speed	10-100rpm
Power	＜22W
Drive sizes	243x154x144.3mm
Drive weight	3.98kg
Power supply	AC220±10% (standard) or AC110V±10% (optional)
External control method	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump head	Model	Max Speed(rpm)	Peristaltic Pump Tubing *(IDWall thickness)mm**
			13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)

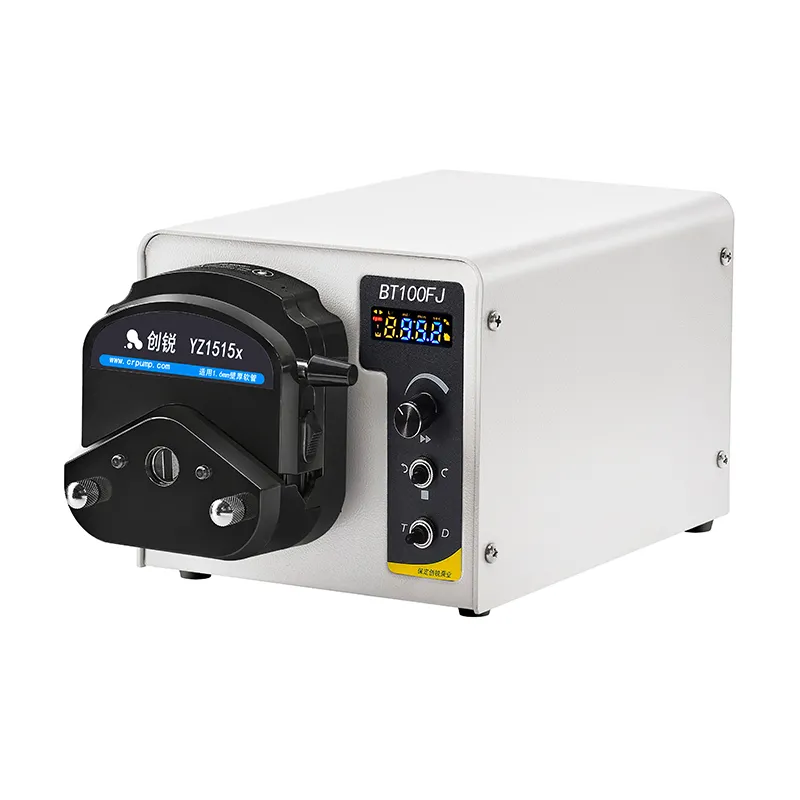

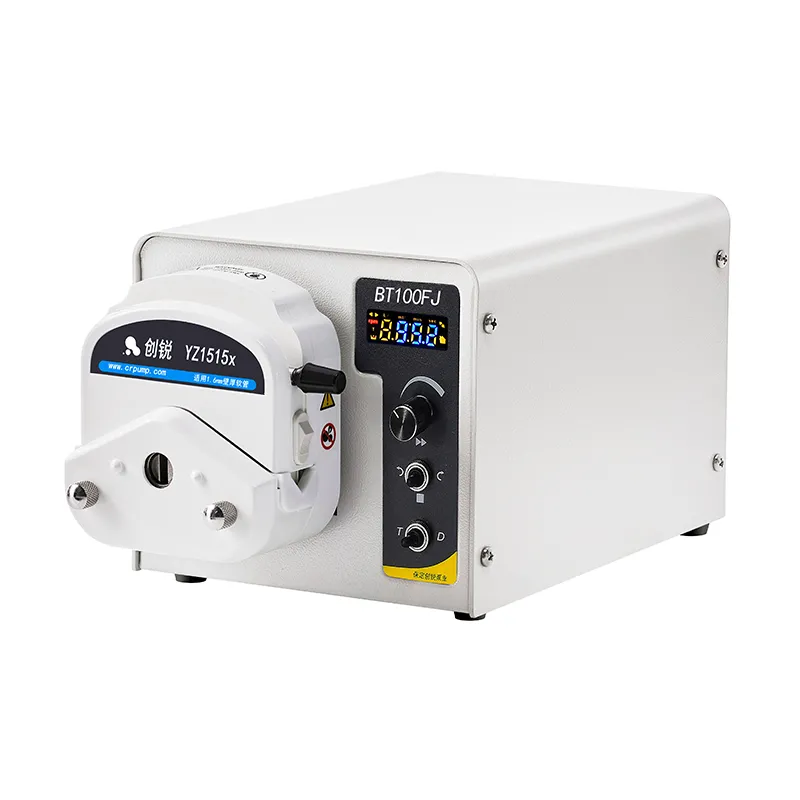

YZ1515X	BT100FJ	100	7	27	51	82	170	290	380
YZ15m		100	7	27	51	82	170	290	380
YZ15ma		100	7	27	51	82	170	290	380
			*15#(4.82.4)**			*24#(6.42.4)**
YZ2515X	BT100FJ	100	170			290
			*0.50.8**	*11**	*21**	*2.40.8**		*31**

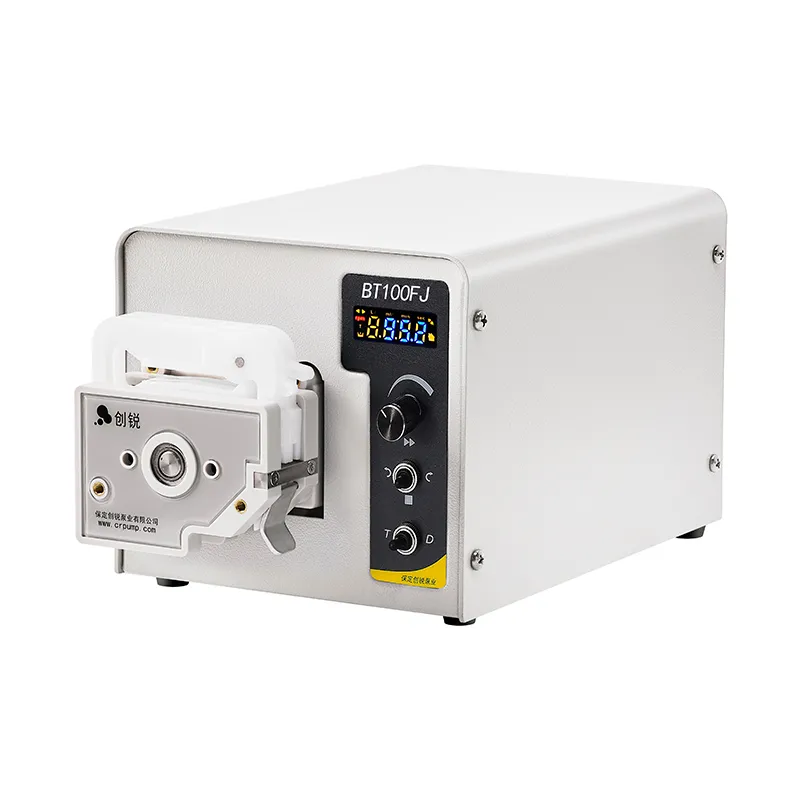

DG	BT100FJ	100(10)	1.5	4	13	17		27
DG		100(6)	2	6	19	24		36
			*14#(1.61.6)**			*16#(3.11.6)**		*25#(4.81.6)**
ZN15	BT100FJ	100	27			82		170
			*24#(6.42.4)**
ZN25	BT100FJ	100	290

Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.

FJ Series Brochure FJ series is a digital distribution type peristaltic pump, which has dual working modes of distribution and transmission.

FJ Series Pump Head/Tube Flow Parameter Table

None
