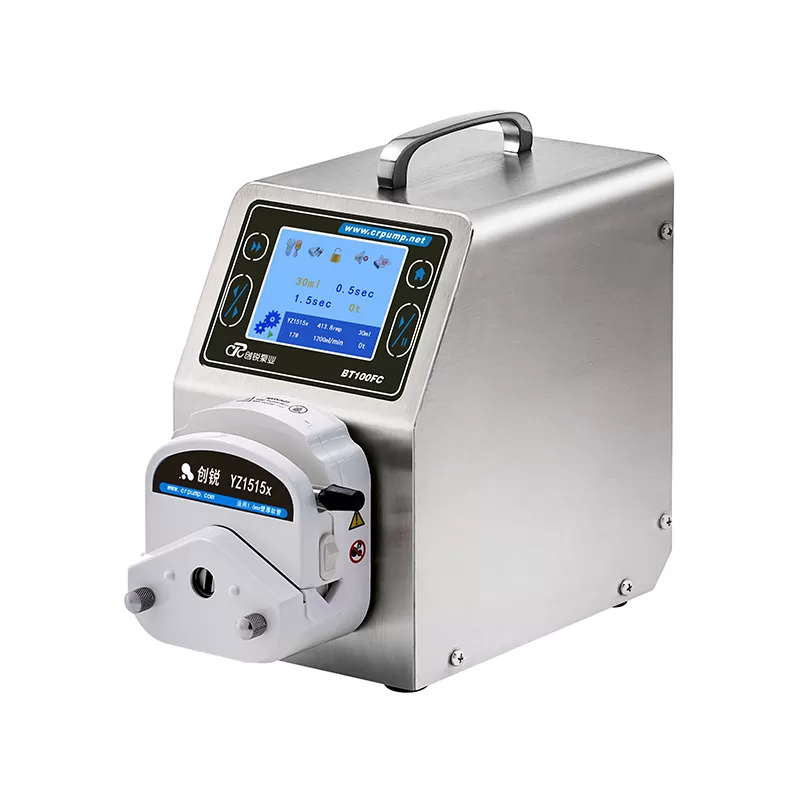

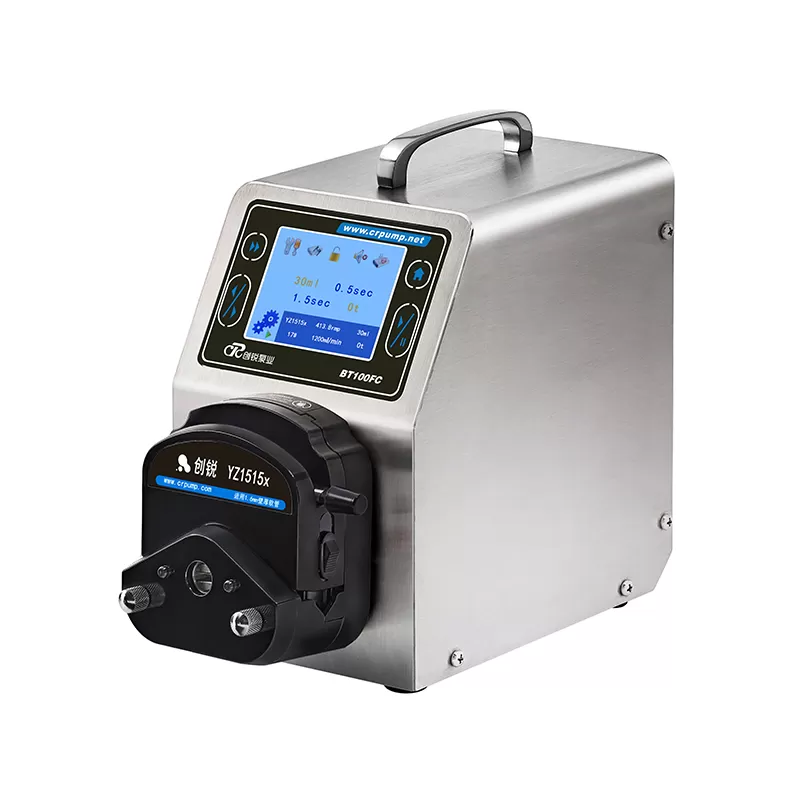

FC series is an intelligent dispensing type peristaltic pump, which adopts 3.5-inch touch screen operation, intuitive data display, provides a variety of function settings, has two working modes of filling and dispensing, and can realize repeated timing and quantitative distribution.
FC series is an intelligent distribution type peristaltic pump, which adopts 3.5-inch touch screen operation, intuitive data display, provides a variety of function settings, has two working modes of transmission and distribution, and can realize repeated timing and quantitative distribution. The stainless steel all-inclusive design is strong Durable, can store 9 sets of filling data, realize fast filling, and support various external control methods such as RS485/MODBUS communication protocol.
Specification
LCD touch
3.5-inch color LCD, Chinese and EnglishDisplay, touch screen control.
Flow calibration
With flow calibration function, it is suitable for transferring liquids with higher precision
Data storage
9 sets of data can be stored for users
Multiple working modes
Transmission mode, timing mode,
Quantitative mode, timed quantitative mode
Adapt to multiple pump heads
YZ, DG, TX series pump heads can be installed,Pump heads can be cascaded.

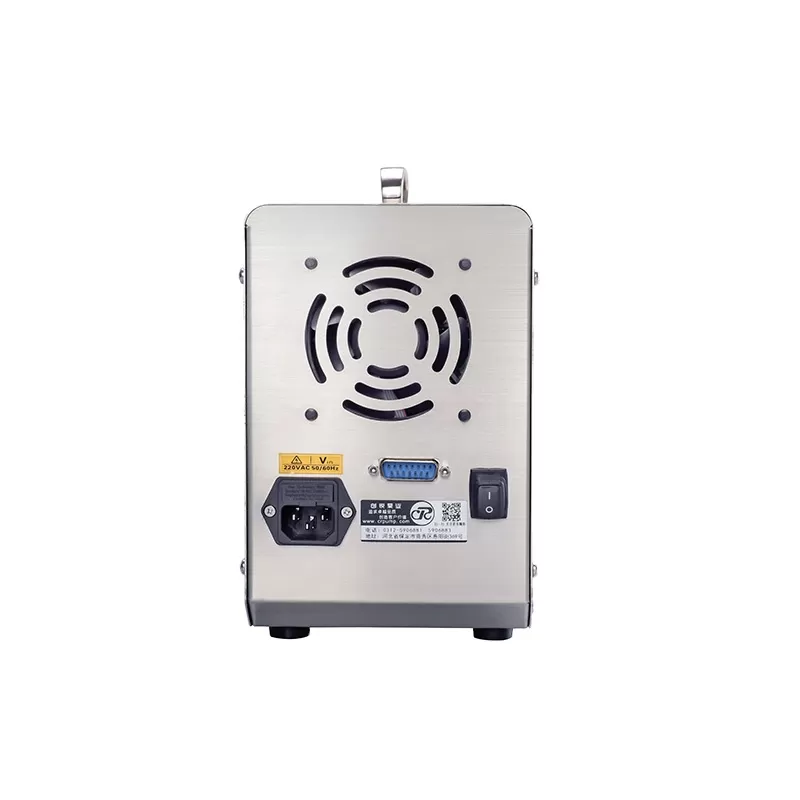

Support external control
Support RS485/MODBUS communication protocol, analog control, foot switch control
Application
It is mostly used in testing reagents, oral liquids, veterinary drugs and other pharmaceutical filling, or in chemical, food and other fields
Drive model: BT100FC
Max Speed: 100rpm(reversible)
Speed resolution: 0.1rpm
Max flow: 480mL/min
Display method: LCD(EN and CN)
Speed mode:
Touch screen + keypad
Timing range: 0.1s-9999min
Quantitative range: 0.001mL-9999L
Power: <22W
Drive size: 212*142*238mm
Power supply: AC220±10% (standard) or AC110V±10% (optional)
External control method:
Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Pump head | Model | Max Speed | 13# (0.8*1.6) | 14# (1.6*1.6) | 19# (2.4*1.6) | 16# (3.1*1.6) | 25# (4.8*1.6) | 17# (6.4*1.6) | 18# (7.9*1.6) |
YZ1515X | BT100FC | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 |
YZ1515X | BT300FC | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 |
YZ1515X | BT600FC | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 |
Pump head | Model | Max Speed | 15#(4.8*2.4) | 24#(6.4*2.4) | |||||
YZ2515X | BT100FC | 100 | 170 | 290 | |||||
YZ2515X | BT300FC | 300 | 510 | 870 | |||||
YZ2515X | BT600FC | 600 | 1020 | 1740 | |||||
Pump head | Model | Max Speed | 0.5*0.8 | 1*1 | 2*1 | 2.4*0.8 | 3*1 | ||
DG | BT100FC | 100(10) | 1.5 | 4 | 13 | 17 | 27 | ||
DG | BT100FC | 100(6) | 2 | 6 | 19 | 24 | 36 |
Flow unit: (mL/min) hose model: (mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
For specific needs, please consult Chuangrui Company.
