Peristaltic Pump for Bioreactor Fermentation


Conventional bio-fermentation reactors are fed to the fermentation medium by manual metering and fed during the fermentation. Due to the inevitable error in manual feeding, and the use of manual feeding also wastes a lot of human resources, especially in the fermentation process, it is necessary to continuously feed according to the ratio and time. If the operator is slightly careless, Fermentation failure can result from inaccurate matching or missed timing of optimal feeding.

The peristaltic pump, which is a precision transfer liquid, is a perfect substitute for manual feeding, saving labor costs and improving work efficiency. And can meet the requirements of timely feeding and precise control.

The Advantages of peristaltic pump for bioreactors

- Provide precise and consistent flow rates

- Clean and sterilize. That is essential for maintaining the integrity of the bioreactor environment. Their simple design also reduces the risk of contamination, ensuring the purity of the cultured cells or microorganisms.

- Gentle transmission, and low shear force, preserve the integrity of the material.

The feeding port of the silicone tubing is connected to the feeding bottle, the outlet of the silicone tube is connected to the fermenting tank, and the CHONRY precision peristaltic pump is located in the middle of the peristaltic pump tube. The control terminal of the precision peristaltic pump is connected to the PLC by the programmable controller PLC. Control the operation of precision peristaltic pumps. The automatic peristaltic pump is used for automatic feeding or feeding. The peristaltic pump is capable of calculating the volume and weight of the material flowing through the unit time and squeezing the hose to allow the liquid to flow for automatic feeding. At the same time, the customer added a programmable controller PLC and connected with the peristaltic pump to the matching ingredients and different feeding times of the medium, which greatly improved the accuracy and timeliness of the addition.

Recommend Bioreactors Peristaltic Pump

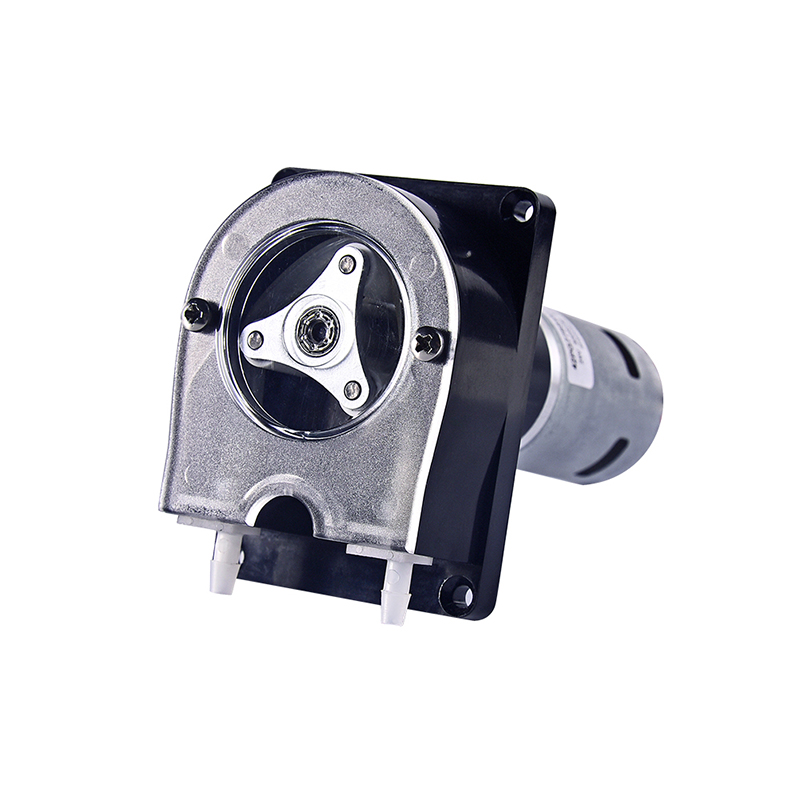

OEM206  12-24V Peristaltic Pump

- Flow rate: 870mL/min

- Channel: 1

- Rollers: 3

- Right peristaltic pump: 13#,14#,19#16#,25#,17#

Peristaltic Pump for Bioreactor Fermentation

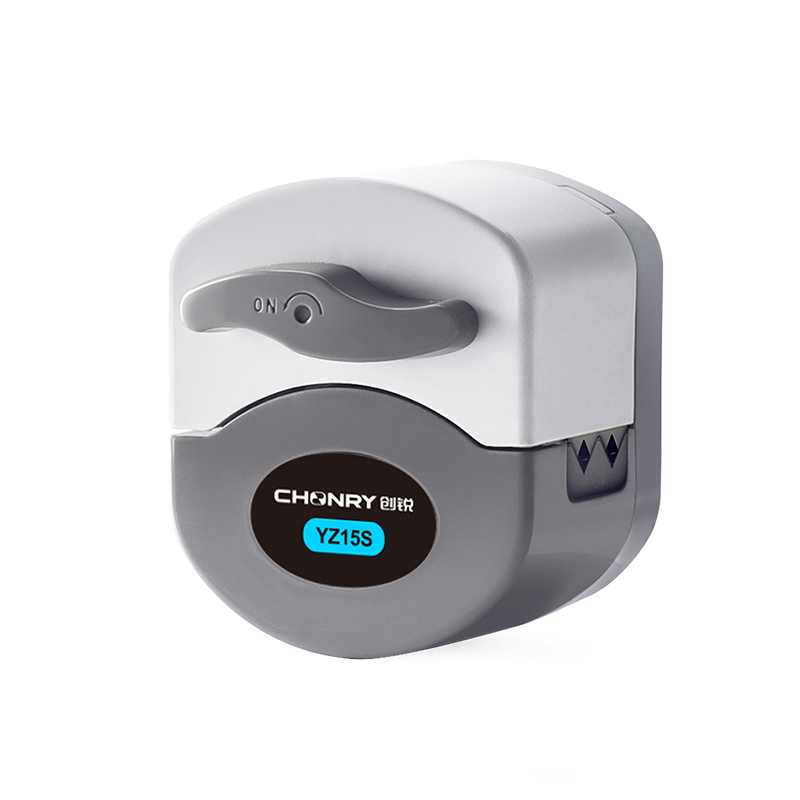

YZ15S Small Peristaltic Pump

- Flow rate: 185mL/min/channel

- Channel: 2

- Rollers: 3

- Right peristaltic pump: 13#,14#,19#16#,

Peristaltic Pump for Bioreactor Fermentation

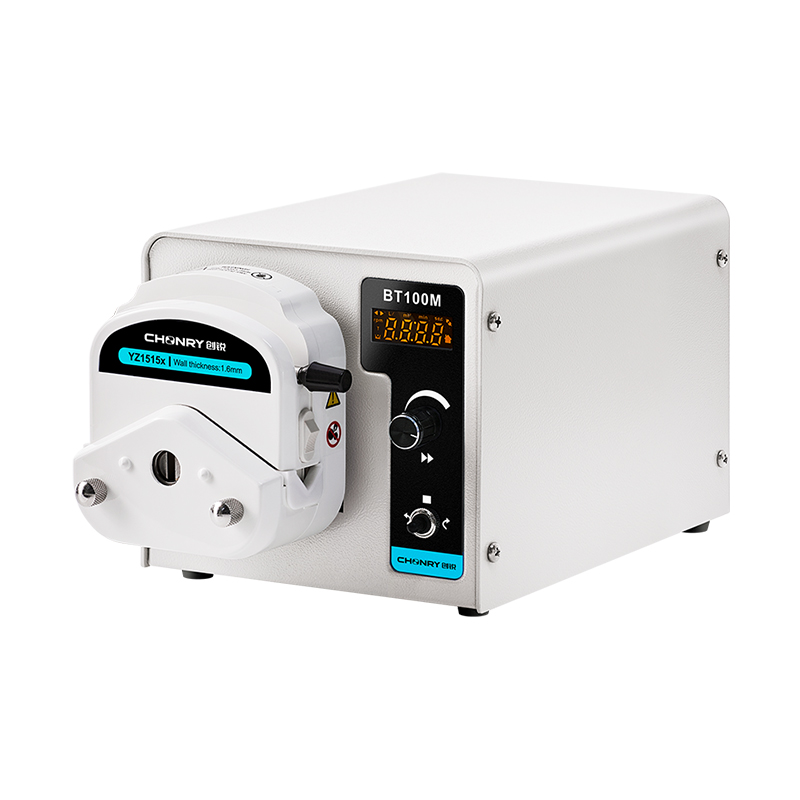

BT100M Basic Peristaltic Pump

- Flow rate: 0.0015-480mL/min

- Speed: Variable speed 0-100rpm

- Easy knob operation. RS485/MODBUS communication protocol.

- Support multi-channel

- High precise less than ±0.2%

Peristaltic Pump for Bioreactor Fermentation
