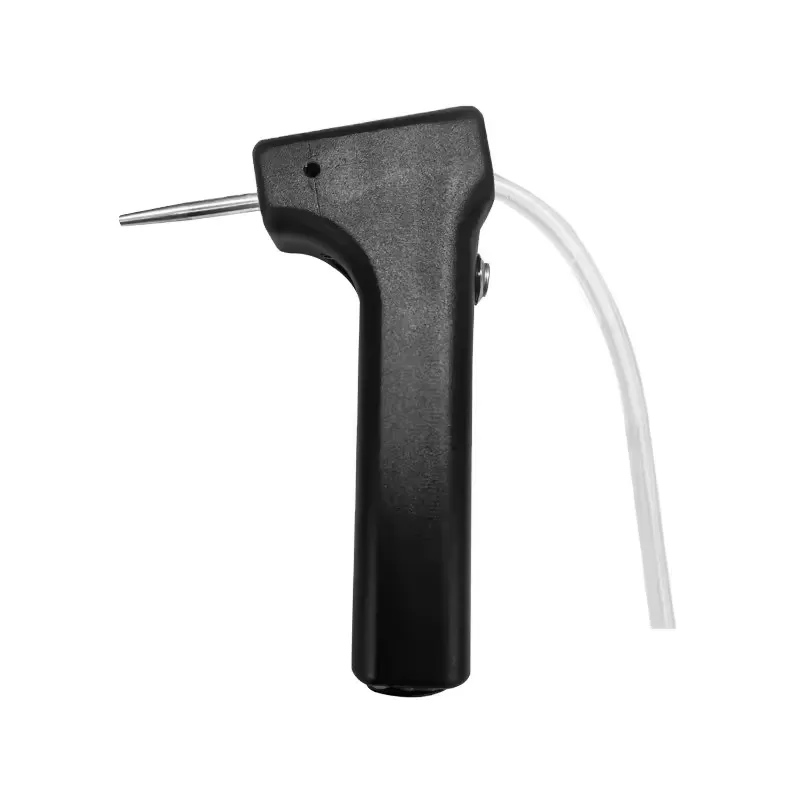

Peristaltic Pump Liquid Filling Handle Dispenser

Special designed for liquid filling and transmission, lightweight and convenient.

Start-stop button, press to fill, flexible and convenient operation.

It can match four sizes of filling nozzle with a wide flow rate range.

Support level signal transmission operation and pulse signal transmission operation.


Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

Chonry peristaltic pump liquid filling handle dispensers are designed for manual and semi-automatic liquid filling and dispensing. Connected to the external control. This liquid filling handle dispenser supports to load of different sizes of filling nozzle which offers a wide flow rate. And the maximum liquid filling volume can reach 12000ml/min. The peristaltic pump liquid filling handle dispenser is used in the chemical liquid filling, E-liquid filling, food filling, reagents filling, and cosmetics filling. With this handling dispenser, the liquid transmission process is stable and has precision flow control. It is a light and convenient operation. It is the ideal choice for manually filling liquid.


Features:

Special designed for liquid filling and transmission, lightweight and convenient.

Start-stop button, press to fill, flexible and convenient operation.

Small size, easy to use.

It can match four sizes of filling nozzle with a wide flow rate range.

Support customized cable length, and meet the requirements of customers' applications.

Connected to the external control interface of the peristaltic pump.

Support level signal transmission operation and pulse signal transmission operation.


Applications:

This liquid filling handle dispenser is mainly suitable for manual and semi-automatic liquid filling of peristaltic pumps. It is mostly used in liquid filling and transmission working environments.

- Reagents filling

- Lab chemical filling

- Food filling

- E-liquid filling

-Cosmetics filling


Button working models for options:

There are two types of buttons for options: self-locking button/ normal button.

Self-locking button

- Set the drive to external control “start and stop”, select “single mode”

- Level mode: single press for start, single press for stop

- Pulse mode: double press for start, double press stop (to prevent misoperation)

Normal button

- Set the drive to external control “start and stop”, select “single mode”

- Level mode: continuous press to enter and maintain the running state, release the button to stop.

- Pulse mode: single press for start, single press for stop.


Filling Nozzle16#17#36#82#
Set screwM4X8M4X8M4X5M4X5
Tube(ID*Wall thickness)16#17#36#73#82#
Pump head ModelYZ1515xYZ1515xKZ25YZ35/YZ35-13YZ35/YZ35-13



None

Peristaltic Pump Liquid Filling Handle Dispenser

None
