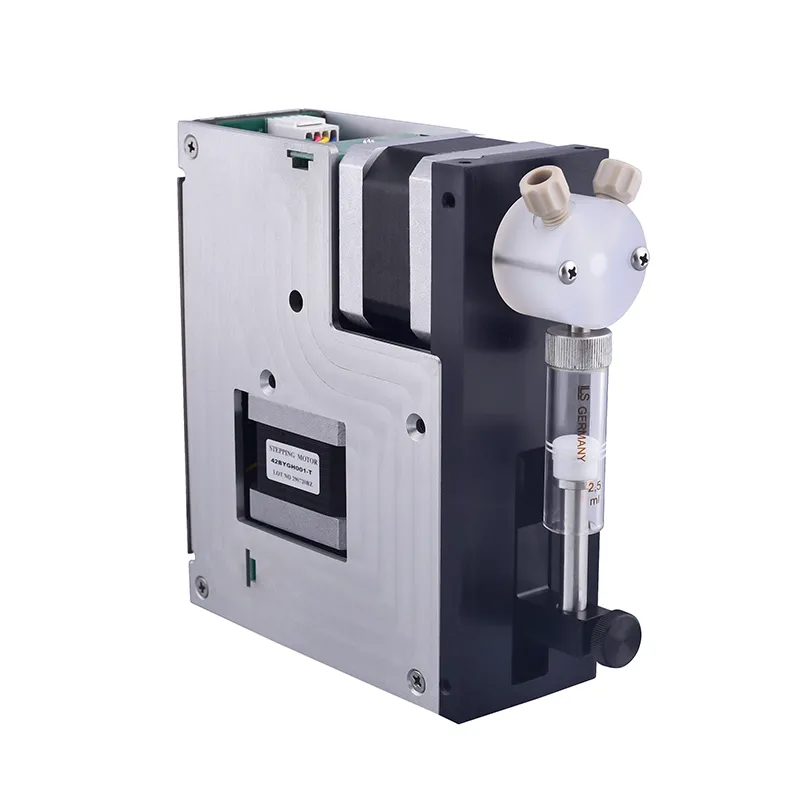

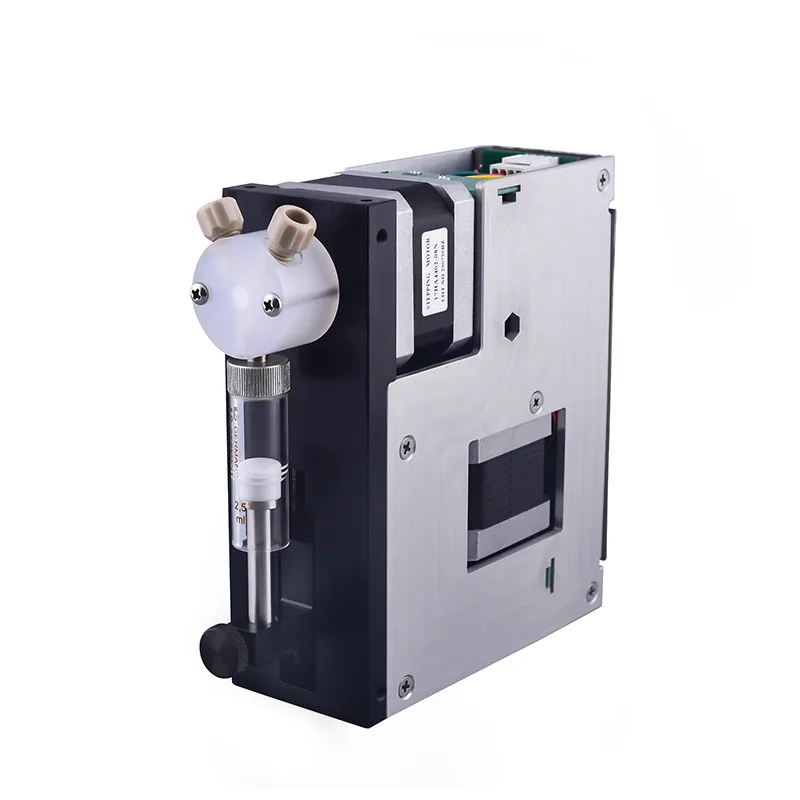

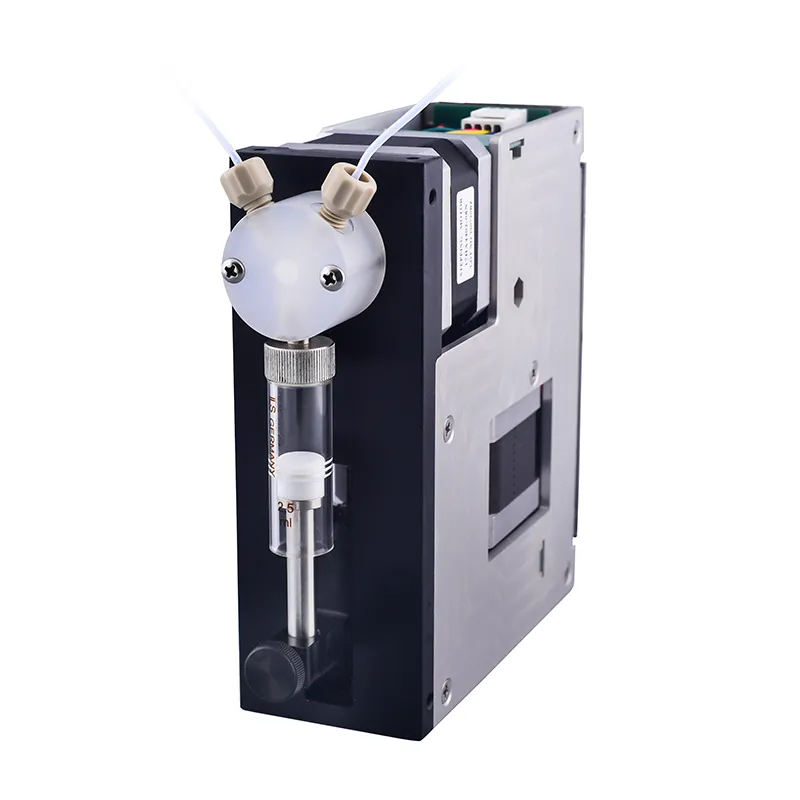

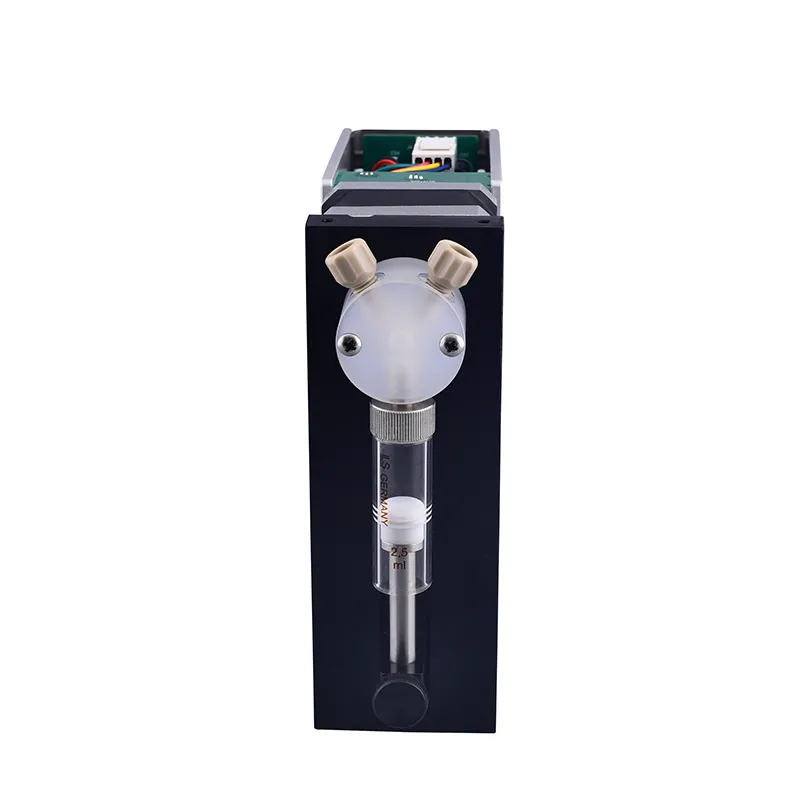

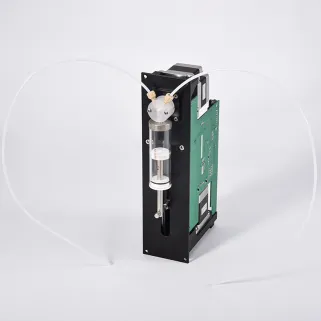

IZS30-1A is an industrial syringe pump independently developed by Chonry Pump Industry. It is driven by a stepper motor and ground ball screw transmission piston. It provides a variety of sample injectors to choose from, suitable for different work requirements, originally imported parts, durable Corrosion durable, long life, good anti-interference, suitable for industrial environment, provide RS232, and RS485 communication control, and support OEM customization.
Features and Benefits:
- Driven by a stepper motor, the ground ball screw drive piston ensures continuous and stable high-precision transmission.
- Various types of syringes can be replaced, with a wide range of linear speeds and diverse applications.
- Provide anti-collision alarm, error report, photoelectric encoder out-of-step detection and other functions.
- Open integration, small size, easy matching, support customization
- Excellent electromagnetic compatibility and anti-interference, safer and more reliable operation, suitable for industrial environment
- The sampler,value body and other wetted parts are imported with original, corrosion-resistant and durable, long service life.
The ZS30-1A syringe pump is the best solution for industrial fluid transfer. It has high precision control and a wide linear speed range. It can be widely used in
- OEM equipment and instrument for sample preparation
- Auto sampling
- bacterial culture, sampling detection
- Biological analysis
- Chip automated pick
- Chromosome analysis
- DNA sequencing
|Working principle||Stepper motor drive, ball screw drive, rotary encoder to monitor displacement, with 0-bit detection|
|Rated stroke||30mm corresponds to 3000 steps|
|Linear speed range||50μm/sec – 5mm/sec (ie: 20 minutes slower for full stroke; 1.2 seconds faster for full stroke)|
|Control resolution||1 step or 0.01mm|
|Stroke control accuracy||When the stroke is greater than or equal to 30%, the error is less than or equal to 5‰|
|Piston driving force||Maximum driving force ≥ 7kg; secondary driving force ≥ 3kg|
|Injector type||50μl ,100μl ,250μl, 500μl, 1ml ,2.5ml ,5ml|
|Valve type||3 Port 120º Valve|
|Transposition time||Transposition time of two adjacent ports≤250ms|
|Valve drive||Stepper motor drive, photoelectric encoder feedback position, out-of-step monitoring|
|Valve material||Spool: Teflon Body: Teflon|
|Valve interface||Tubing fitting: 1/4-28 thread fitting; Injector fitting: 1/4-28 thread fitting|
|External control interface|
|Communication Interface||RS485 communication interface, communication rate: 9600 baud rate/38400 baud rate optional|
|RS232 communication interface, communication rate: 9600 baud rate/38400 baud rate optional|
|External input interface||2 external TTL inputs with isolation; used to control start-stop after pause|
|External output interface||3 external TTL outputs with isolation|

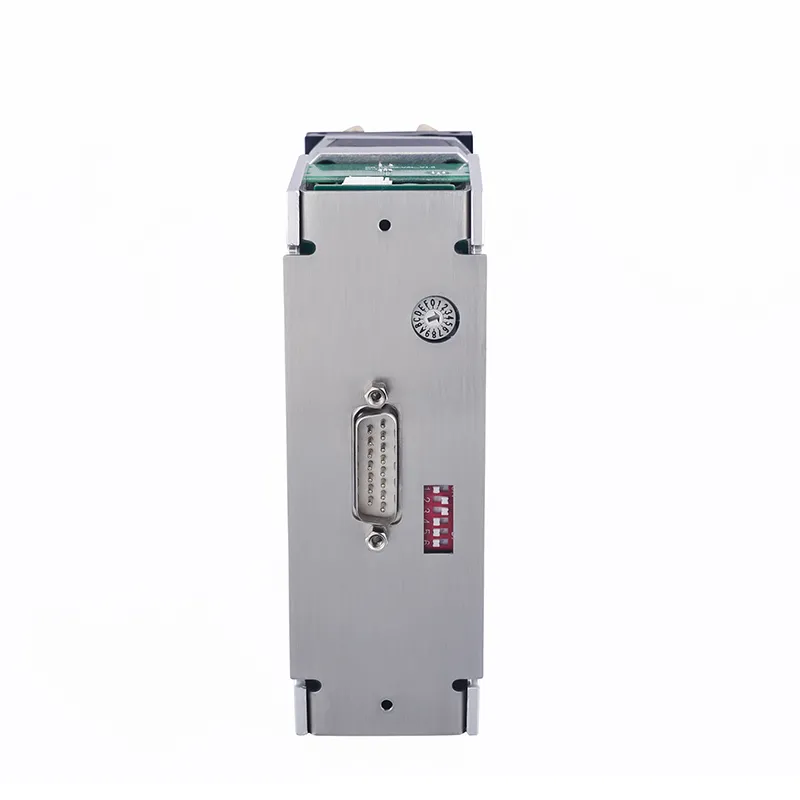

|Device address dial interface||The device address can be set externally through the BCD dial|
|Parameter jumper selection interface||Reserve 6 external jumper selection parameters (valve selection, communication rate selection, communication mode selection)|
|Initialization command series||Complete the initialization state of valve and piston through various commands|
|Parameter setting command series||Complete the setting of parameters such as speed, start slope, relative 0 point position, dead zone volume, etc. through different commands|
|Valve Control Command Series||Complete movement of various valve positions|
|Piston Control Command Series||Accurate displacement of the piston by different commands|
|Control command series||Single, repeated, and delayed execution of single commands, combined command sequences, and stored command sequences through different commands; as well as suspending and terminating tasks, etc.|
|Report command series||Through various commands, the valve position, piston position, piston driving force, piston speed and other states of the equipment can be monitored in real time|
|Power Requirements||Voltage||24V DC|
|Work environment requirements||Temperature||10℃-40℃|
|Humidity||20%-95% at 40℃|
IZS30-1A Syringes Pump Injector Size Parameter
|Injector Size||Max flow (mL/min)|
Pipeline Recommendation Table
|Industrial syringe pump IZS30-1A applicable hose|
|008T16-050-20||1.6mm (1/16") O.D. x 0.5mm (.02") I.D.||20m|
|008T16-050-200||1.6mm (1/16") O.D. x 0.5mm (.02") I.D.||200m|
|008T16-100-20||1.6mm (1/16") O.D. x 1.0mm (.039") I.D.||20m|
|008T16-100-200||1.6mm (1/16") O.D. x 1.0mm (.039") I.D.||200m|
|008T32-150-10||3.2mm (1/8") O.D. x 1.5mm (.059") I.D.||10m|
|008T32-150-100||3.2mm (1/8") O.D. x 1.5mm (.059") I.D.||100m|
