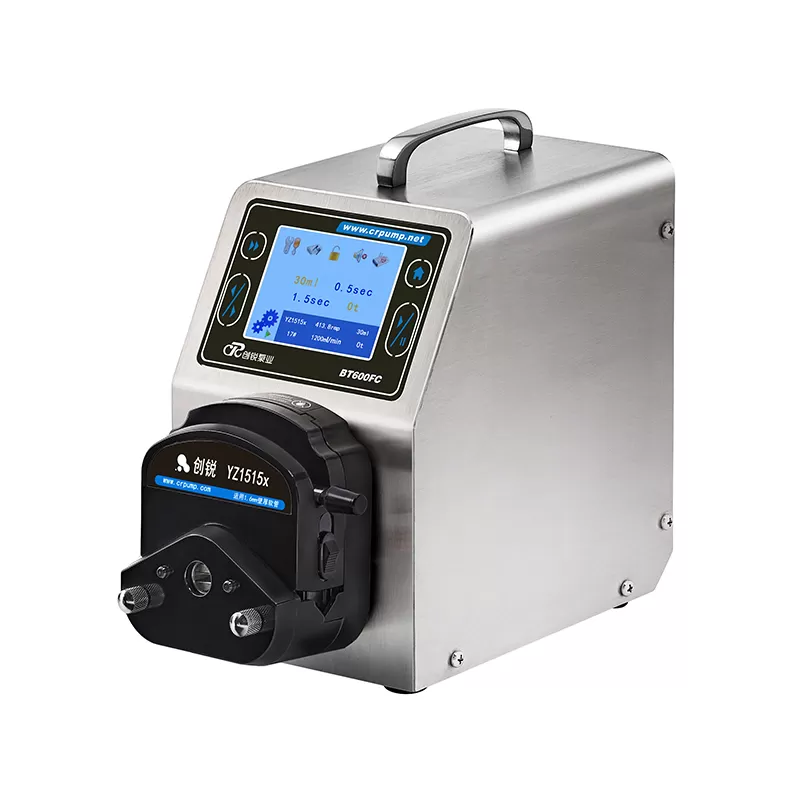

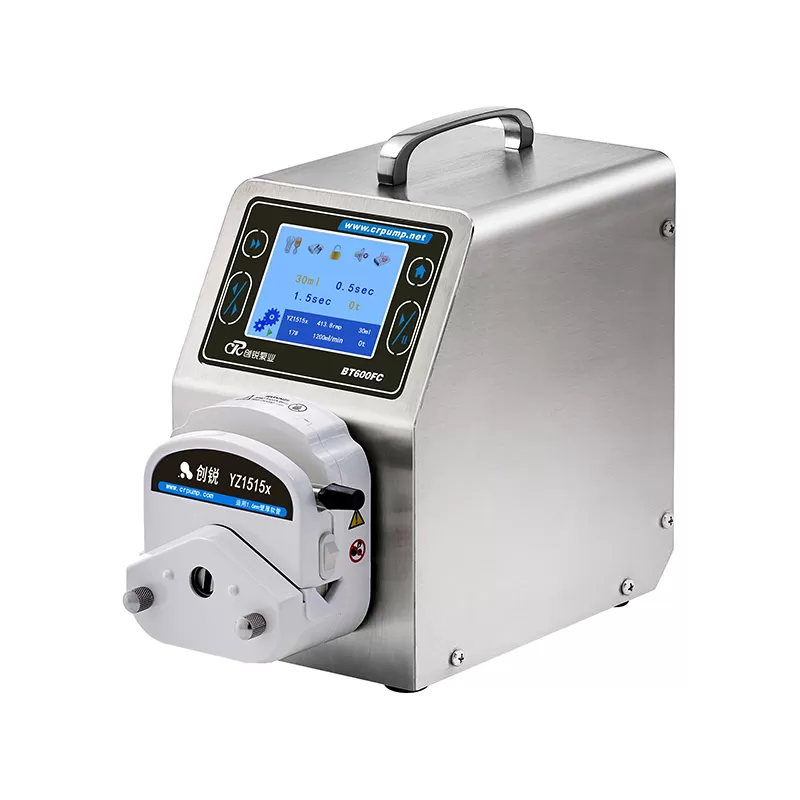

BT600FC peristaltic pump adopts a 3.5-inch LCD to display the flow rate and speed parameters. BT600FC peristaltic tube pumps are used for precision micro liquid dispensing, and filling. Liquid bottle filling work: drinks/wines/perfumes/essential oils/cosmetics.etc.The flow rate is up to 2280ml/min. Accurate flow rate control. Long time life and low maintenance.
The membrane keypad is easy to operate. The stainless steel all-inclusive design is strong and durable. It can store 8 sets of filling data, realizing fast filling. The BT600FC peristaltic dosing pumping provides manual, remote analog or RS485/MODBUS communication protocol control.
Specification
LCD touch:3.5-inch color LCD, Chinese, and English Display, touch screen control.
Flow calibration: With the flow calibration function, it is suitable for transferring liquids with higher precision
Data storage: 8 sets of data can be stored for users
Multi-working modes: transmission and distribution, can perform repeated timing and quantitative filling.
Acceptable pump heads: YZ, DG, and TX series pump heads can be installed, and Pump heads can be cascaded.
Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control
Application
-Food industry
-Laboratory research institute
-Filling and dispensing
-Medical equipment
Drive model | BT600FC |
Max Speed | 600rpm(reversible) |
Speed resolution | 0.1rpm |
Max flow | 2280mL/min |
Display method | Color LCD display(Chinese and English optional) |
Speed mode | Touch screen adjustment |
Timing range | 0.1s-9999min |
Quantitative range | 0.001mL-9999L |
Filling times | 0-9999t |
Back suction angle | 10°-720° (0° means no back suction) |
Back suction Speed | 10-300rpm |
Power | <50W |
Drive size | 215*136.4*236.7mm |
Drive weight | 4.94kg |
Power supply | AC220V±10% (standard) or AC110V±10% (optional) |
External control method | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication |
Pump head | Model | Max Speed | Tube Mode(ID* Wall thickness)mm | ||||||
13# (0.8*1.6) | 14# (1.6*1.6) | 19# (2.4*1.6) | 16# (3.1*1.6) | 25# (4.8*1.6) | 17# (6.4*1.6) | 18# (7.9*1.6) | |||
YZ1515X | BT600FC | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 |
YZ15m | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 | |
YZ15ma | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 | |
15#(4.8*2.4) | 24#(6.4*2.4) | ||||||||
YZ2515X | BT600FC | 600 | 1020 | 1740 | |||||
14#(1.6*1.6) | 16#(3.1*1.6) | 25#(4.8*1.6) | |||||||
ZN15 | BT600FC | 600 | 162 | 492 | 1020 | ||||
24#(6.4*2.4) | |||||||||
ZN25 | BT600FC | 600 | 1740 |
Flow unit: (mL/min) hose model: (mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
For specific needs, please consult Chuangrui Company.
