Model | GP300FC |
Max Flow | 2700mL/min |
Max Speed | 3000rpm |

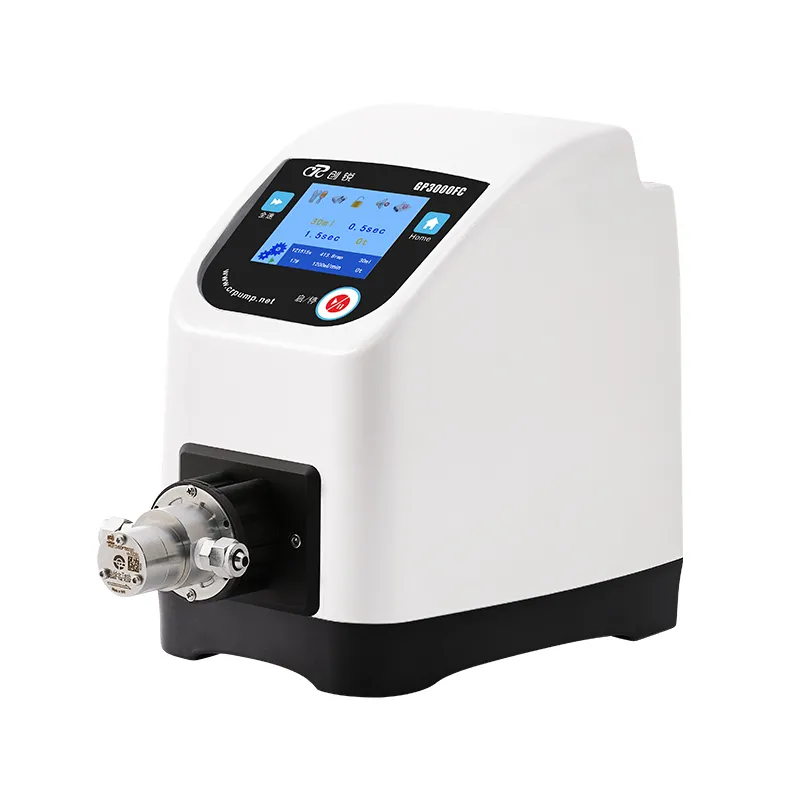

GP3000FC is an intelligent miniature gear pump with a 3.5-inch color LCD touch screen display and a unique magnetic coupling design, which can accurately handle fluids without leakage/pollution/pulsation. It has two working modes of transmission and distribution. Work needs to be intelligently set, data storage can be carried out, and various remote control modes such as RS485/MODBUS are supported.
Features and Benefits:
3.5-inch LCD display in Chinese and English, smart operation
9 sets of filling data can be stored for users
Full-speed function at the touch of a button for fast cleaning, filling and emptying of pipes
Support RS482/Modbus communication protocol, analog control, foot switch control
The flow calibration function reduces flow rate errors and ensures flow accuracy
Multiple modes, transferring and dispensing working models for option
Application:
Liquid transfer or circulation in the laboratory or industrial applications
- Permentation
- Cell culture
- PH control
- Nutrient transfer
Drive model | GP300FC |
Max speed | 3000rpm |
Running direction | Clockwise rotation |
Max flow | 2700mL/min |
Transfer Liquid Particle Restriction | Particle diameter≤10μm (pre-filter recommended) |
Transfer liquid viscosity | ≤200cst |
Transfer liquid temperature | PEEK gear: -45~120℃ PTFE gear: -45~50℃ |
Speed resolution | 1rpm |
Speed mode | Touch screen adjustment |
Display method | Color LCD display (Chinese and English optional) |
Power supply | AC220V±10% (Standard)或 AC110V±10%(Optional) |
Power | <100W |
External control interface | DB-15 |
External control method | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication |
Ambient temperature | 0-40℃ |
Drive weight | 4.2KG |
Size | 330x186X251(mm) |
Protection grade | IP31 (indoor use, avoid prolonged exposure to UV rays) |
Pump Head Flow Parameter Table
Flow unit: (mL/min) Tube: ID*wall thickness(mm)
Pump Head | Gear Material | Max Speed(rpm) | Max Flow(mL/min) | Liquid Temperature(℃) | Transmission Pressure(Mpa) |
MG204XD0PT00000 | PEEK | 3000 | 900 | -45~120 | ≤0.8 |
PTFE | 3000 | 900 | -45~50 | ≤0.8 | |
MG209XD0PT00000 | PEEK | 3000 | 1800 | -45~120 | ≤0.8 |
PTFE | 3000 | 1800 | -45~50 | ≤0.8 | |
MG213XD0PT00000 | PEEK | 3000 | 2700 | -45~120 | ≤0.3 |
PTFE | 3000 | 2700 | -45~50 | ≤0.3 | |
MS204XD0PT00000 | PEEK | 3000 | 900 | -45~120 | ≤1.4 |
PTFE | 3000 | 900 | -45~50 | ≤0.8 | |
MS209XD0PT00000 | PEEK | 3000 | 1800 | -45~120 | ≤0.9 |
PTFE | 3000 | 1800 | -45~50 | ≤0.8 | |
MS213XD0PT00000 | PEEK | 3000 | 2700 | -45~120 | ≤0.8 |
PTFE | 3000 | 2700 | -45~50 | ≤0.8 |
Pump Head\Tube | 19#(2.4*1.6) | 19#(3.1*1.6) | 19#(4.8*1.6) | 19#(6.4*1.6) | 19#(7.9*1.6) |
MG204 | 900mL/min | 900mL/min | 900mL/min | 900mL/min | 900mL/min |
MG209 | 900mL/min | 1800mL/min | 1800mL/min | 1800mL/min | 1800mL/min |
MG213 | 900mL/min | 1800mL/min | 2700mL/min | 2700mL/min | 2700mL/min |
MS204 | 900mL/min | 900mL/min | 900mL/min | 900mL/min | 900mL/min |
MS209 | 900mL/min | 1800mL/min | 1800mL/min | 1800mL/min | 1800mL/min |
MS213 | 900mL/min | 1800mL/min | 2700mL/min | 2700mL/min | 2700mL/min |
