Peristaltic Pump Head
Home / Products / Peristaltic Pump / Peristaltic Pump Head / WP200 OEM Peristaltic Pump Head

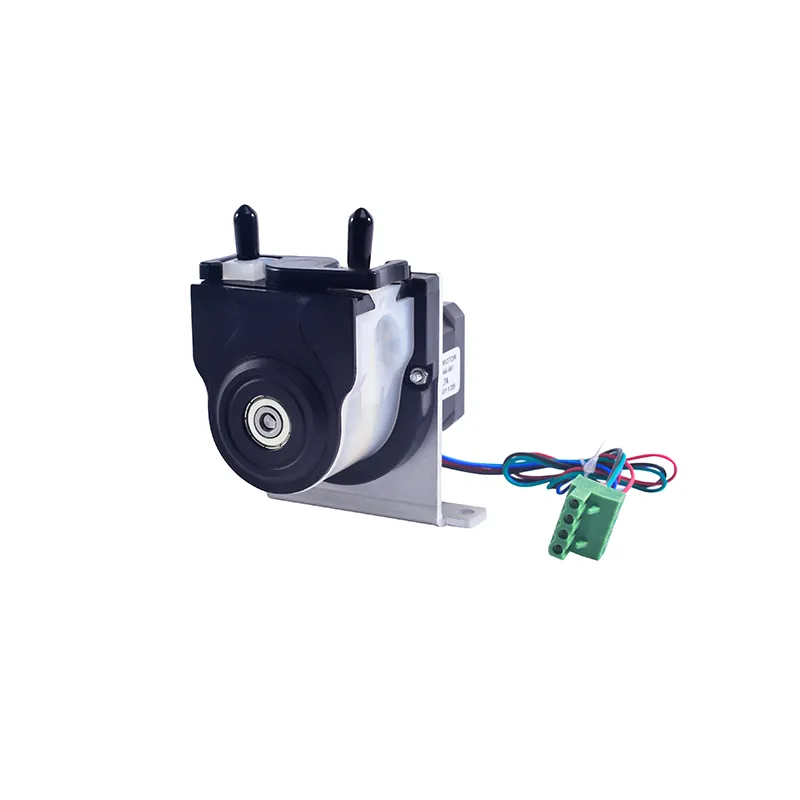

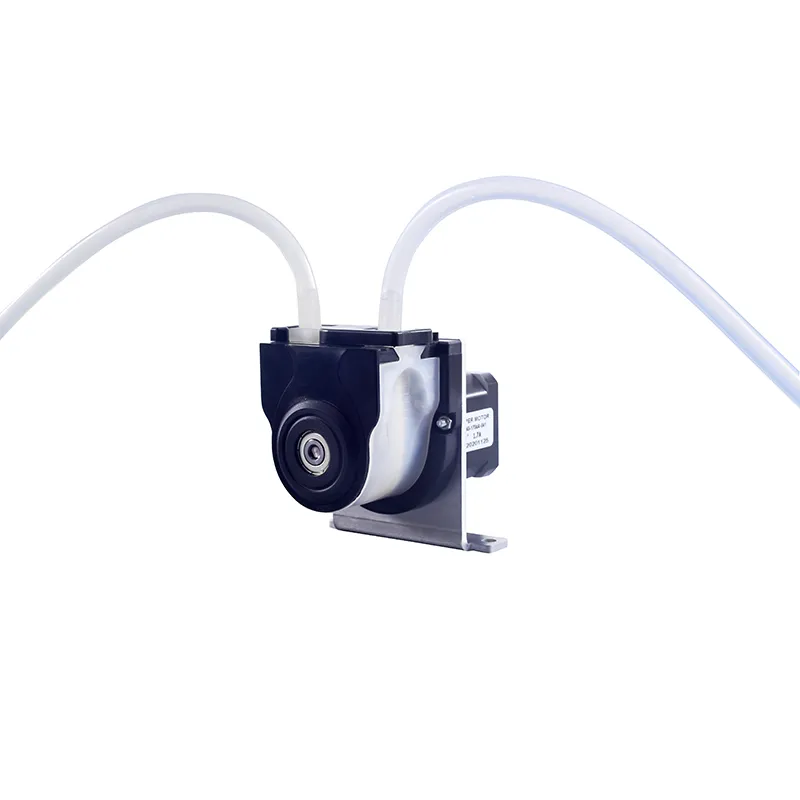

WP200 OEM Peristaltic Pump Head

WP200 OEM Peristaltic Pump Head

ModelWP200
Max Flow420mL/min
Max Speed300rpm
Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

WP200 is one OEM peristaltic pump head and the capable of flow rate up to 420mL/min. It is suitable for supporting the use of online testing instruments such as COD and CEMS. It employs flexible pressure tube structure to prolong the service life of the pump tube. This peristaltic pump head offer high precision of liquid transfer.


Features and Benefits:

Adopts special engineering plastic injection molding for shell, strong and corrosion resistant.

Flexible pressure tubing structure, prolong the service life of hose

Support the use of online testing instruments such as COD and CEMS

Multi-power configuration, meet different flow requirements


Application:

The typical application of WP200 peristaltic pump head:

- Online monitoring, waste liquid discharge

- Vending machine

- Self-service laundry room

Pump HeadChannelsRollersRotating Speed (rpm)Hose Specifications(Id*Wall Thickness)mmMax Flow(mL/min)
WP200121、5、1014# / 1.6X1.619# / 2.4X1.616# / 3.2X1.625# / 4.8X1.614
5、1014
Continuous: 0-100Intermittent: 0-300Continuous: 140Intermittent: 420
245
10、30、80、175
ModelPump HeadMotorVoltageHoseMax Flow(mL/min)
1rpm5rpm10rpm30rpm80rpm175rpm0-100rpm(Continuous)0-300rpm(Intermittent)
ACM114WP200AC synchronous220V14#0.201.02.0




19#0.402.04.0




16#0.703.57.0




25#1.407.014.0




OEM214WP200DC GeardDC24V14#

2.061430

19#

4.0123270

16#

7.02156122

25#

14.042112245

UCP314-A1WP200Stepper14#14#





2056
19#





40120
16#





70210
25#





140420


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

WP200 Pump Head Brochure - Chonry
WP200 Pump Head Brochure - Chonry The shell material of OEM220 series peristaltic pump is made of special engineering plastic injection molding
WP200 Production Selection
WP200 Production Selection The shell material is injection-molded with special engineering plastics, with strong corrosion resistance
