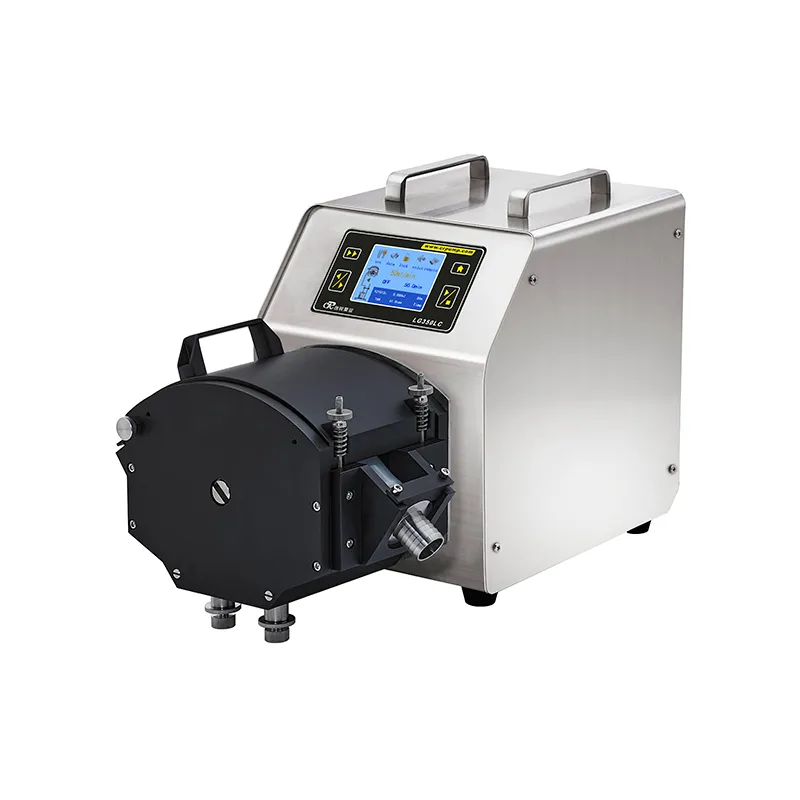

LG350FC is a batch distribution peristaltic pump. It adopts a 3.5-inch color LCD touch screen display. The operation is simple and intuitive. It has two working modes of transmission and distribution. It can be intelligently set according to different work needs. The motor torque is strong, suitable for KZ50 pump. The maximum flow can reach 33L, and it supports various remote control modes such as RS485/MODBUS.

Specification

• 3.5-inch color LCD, Chinese and English display, touch screen control. It has two working modes of transmission and distribution, and can perform repeated timing and quantitative filling.

• Can automatically save the control parameters when the last power failure.

• Compatible with KZ50 pump head, the maximum transmission flow can reach 33L/min.

• 9 sets of data can be stored for users.

• Support RS485/MODBUS communication protocol, analog control, foot switch control.

Application

Used in food industry, fluidized bed liquid supply, liquid medicine filtration, photovoltaic, chemical industry and other fields

Drive model: LG350LC

Max speed: 350rpm (reversible)

Max flow: 33000mL/min

Speed resolution: 0.1rpm

Speed mode: Touch screen adjustment

Display method: Color LCD display (Chinese and English optional)

Suction angle: 10°-720°

Suction speed: 10-300rpm

Power supply: AC220+10% (Standard) orAC110V+10% (optional)

Power: <750W

External control interface: DB-15

External control method: Start control/direction control/speed control (0-5V. 0-10V, 4-20mA optional) RS485 serial communication

Ambient temperature: 0-40C

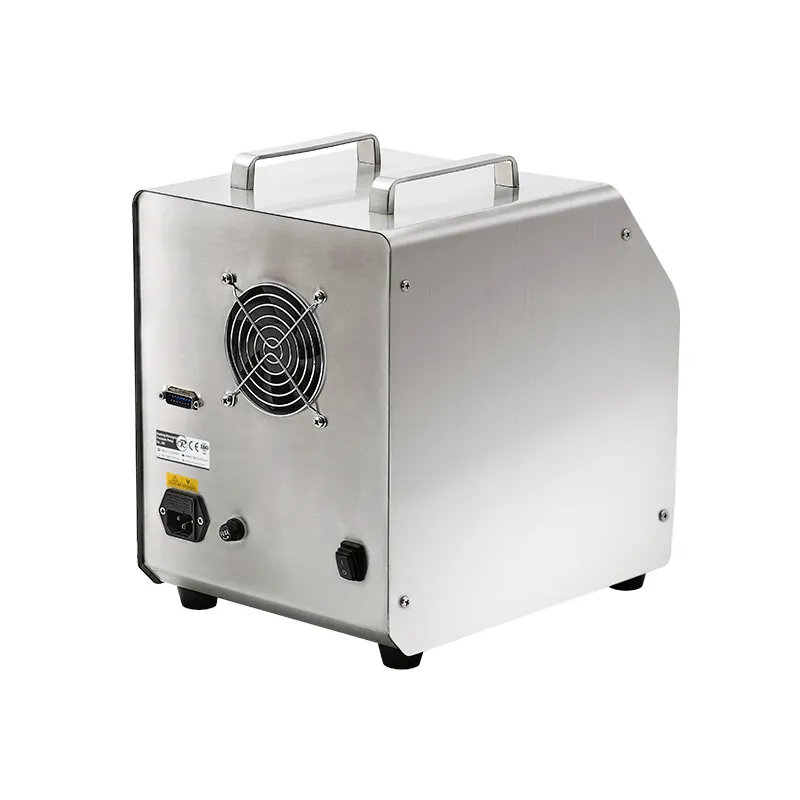

Drive size: 340X242X342.5(mm)

Protection class: IP31 (indoor use, avoid prolonged exposure to UV rays)

Pump Head	Model	Hose	ID（mm）	Wall Thickness（mm）	Max Flow(ml/min)	Max Speed(rpm)
Kz50	LG350LC	92#	25.4	4.8	33000	350

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

LG350LC With timing, quantitative, timing quantitative, transmission four working modes.

LG350LC Brochure LG350LC is a batch transmission type peristaltic pump. It adopts 3.5-inch color LCD touch screen display. The operation is simple and intuitive.
