BW100-WP110 Stepper Microfluidic Peristaltic Pump

BW100-WP110 Stepper Microfluidic Peristaltic Pump

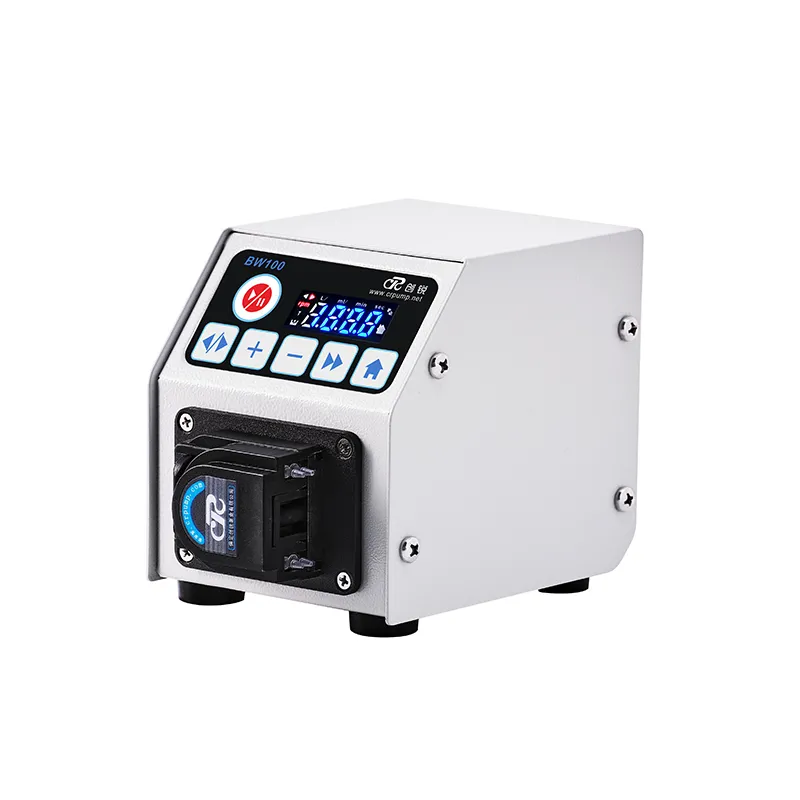

BW100 is a stepping microfluidic peristaltic pump. It adopts LED four-digit display, membrane key control, compact structure, stable transmission

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BW100 is a stepping microfluidic peristaltic pump. It adopts LED four-digit display, membrane key control, compact structure, stable transmission, supports one-key full speed, used for fast cleaning and filling, supports RS485/MODBUS communication protocol, meets the requirements of Different work needs of customers.


Specification

LED digital display

4-digit LED digital display speed and flow,With flow calibration function.


Easy to operate

Button to adjust parameters, can run forward and reverse, easy to operate.


Power off save

Can automatically save the control parameters when the last power failure.


One key full speed

Features a convenient full speed button for quickly filling or emptying the tube.


External control function

Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs.


Flow calibration

Flow calibration is possible, and suction is provided to prevent liquid dripping.


Application

Used in laboratories, chromatography, medical sampling, bioreactors, etc.

Drive model: BW100

Max speed: 100rpm（reversible）

Speed resolution: 0.1rpm

Max flow: 28.25mL/min

Pump head: WP110

Speed mode: Membrane button to adjust the speed

Display method: Four-digit LED displays current speed or flow

Suction speed: 10-100rpm

Power: ＜22W

Drive size: 120x100x108 mm

Power supply: AC220V±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump HeadModelRollerTubeID*wall thickness（mm）Max Speed（rpm）Max Flow（ml/min）
BW100WP11031*11*11005.16
2*12*110017.01
2.5*12.5*110028.25
41*11*11004.63
2*12*110012.34
2.5*12.5*110024.42
61*11*11003.75
2*12*110013.02
2.5*12.5*110017.9


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.


If you have special requirements, you can use 2.5*1, but you do not guarantee life.

For specific needs, please consult Chuangrui Company
