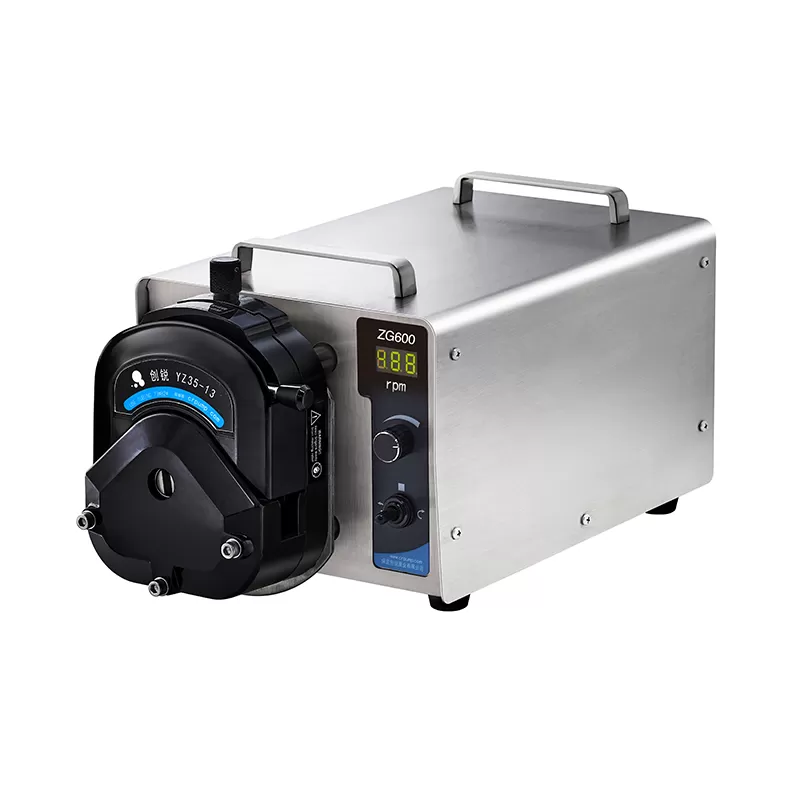

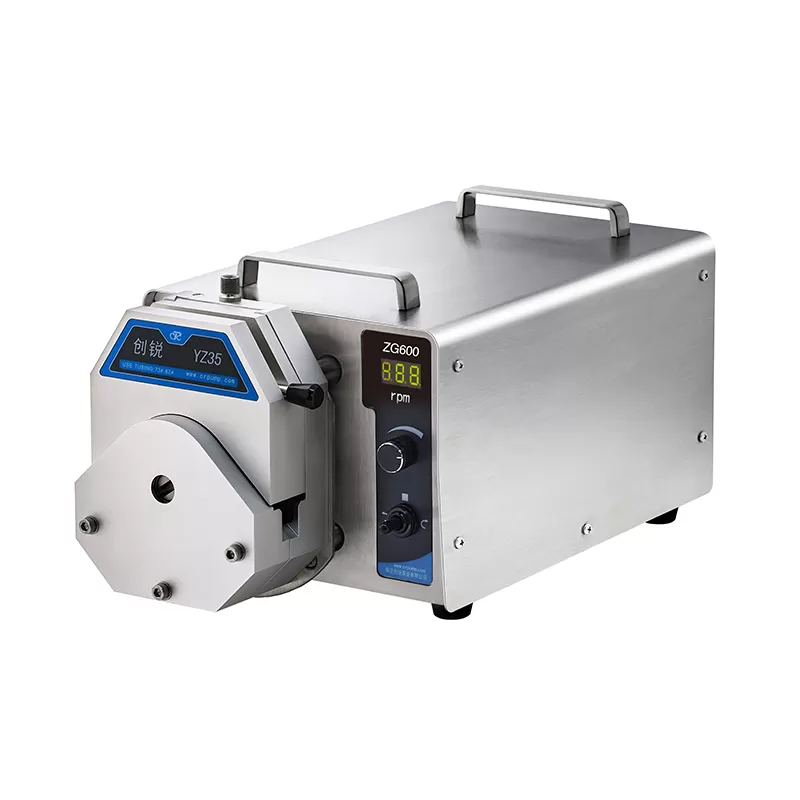

ZG600 is a DC industrial peristaltic pump. It adopts high-power DC motor, two-way high torque, YZ35, YZ35-13 and other pump heads are installed. Multiple pump heads can be cascaded. Digital knob adjustment, using 3-digit LED to display the current flow and speed to meet different application requirements

Specification

Powerful

High-power DC motor drive, strong load capacity

Strong and sturdy

The body shell is made of stainless steel, which is sturdy and durable

Can be cascaded

Two-way high torque, can cascade multiple pump heads.

High traffic transmission

Equipped with large flow YZ35,

YZ35-13 pump head, the maximum transmission capacity is 12L.

Application

Used in food filling, mechanical grinding and polishing liquid, chemical liquid transportation, Large flow transmission such as water treatment

Drive model: ZG600

Max speed: 600rpm

Speed resolution: 1rpm

Max flow: 12000mL/min

Speed mode: Digital knob to adjust the speed

Display method: Three digit LED displays current speed

Power supply: AC220V+10%(standard) or AC110V+10% (optional)

Power: <400W

Drive size: 345X232X226 (mm)

Drive weight: 19kg

Pump Head	Model	Tube	ID(mm)	Wall Thickness（mm）	Max Flow（ml/min）	Max Speed(rpm)
YZ35	YZ35	73#	9.6	3.3	7400	600
YZ35	YZ35	82#	12.7	3.3	12000
YZ35-13	YZ35-13	73#	9.6	3.3	7400
YZ35-13	YZ35-13	82#	12.7	3.3	12000

Flow unit: (mL/min) Tube: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.

ZG600 Brochure ZG600 is a DC industrial peristaltic pump. It adopts high-power DC motor, two-way high torque, YZ35, YZ35-13 and other pump heads are installed. Multiple pump heads can be cascaded.

ZG600 Series Used in food filling, mechanical grinding and polishing liquid, chemical liquid transportation, water treatment and other large flow transmission
