Good sealing performance, reverse flow of fluid, low maintenance cost, and can be used with other equipment.
Support user customization, mature processing technology, high production capacity, and can be mass-produced.
Color touchscreen operation can realize batch filling, and the number of control units can be expanded.
The R&D team can carry out customized development according to different design schemes.
LCD touch screen, which can realize high-precision, smooth and pulsation-free liquid transmission.
Targeted production of products according to market demand, including adding pumps, gear pumps, etc.
Provide peristaltic pump hose options, such as platinum vulcanized silicone hose, the hose for cell research, etc.
Applicable industries: can be used in chemical industry, food industry, medical industry
Motor explosion-proof Grade is EXDII-B-T4 Gb;
Applicable industries: can be used in chemical industry, food industry, medical industry
Motor explosion-proof Grade is EXDII-B-T4 Gb;
Motor protection Grade: The protection level is IP55;
Potentiometer speed regulation: speed regulation is simpler and faster, and the speed regulation range is wider;
Smooth operation: suitable for liquid transmission with high precision;
Wide flow range: a variety of pump heads can be installed and suitable for a variety of hoses;
Desktop structure: more compact structure, easy to operate and use;
External control can be customized: external control start and stop or input analog signal 0-5V, 0-10V, 4-20mA, output analog signal 0-5V, 0-10V, 4-20mA, alarm output function.
Application
Applicated in chemical industry, medical care and other industries

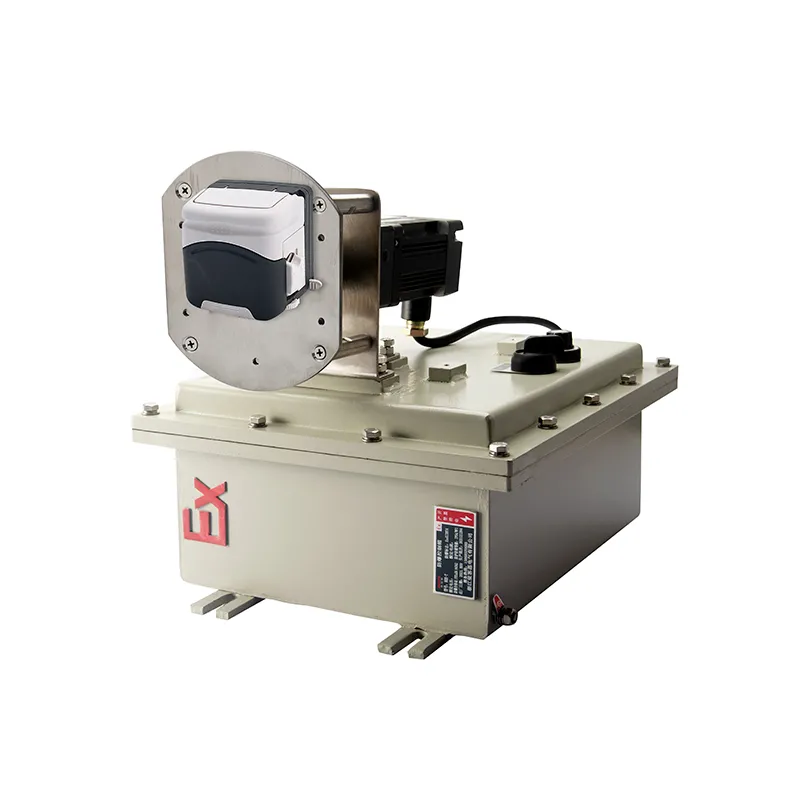

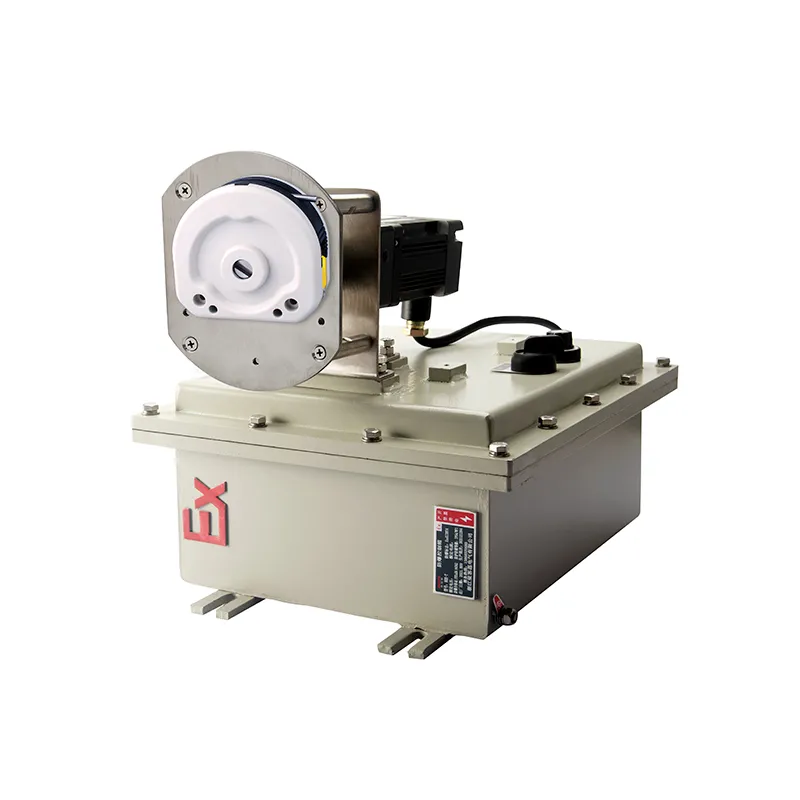

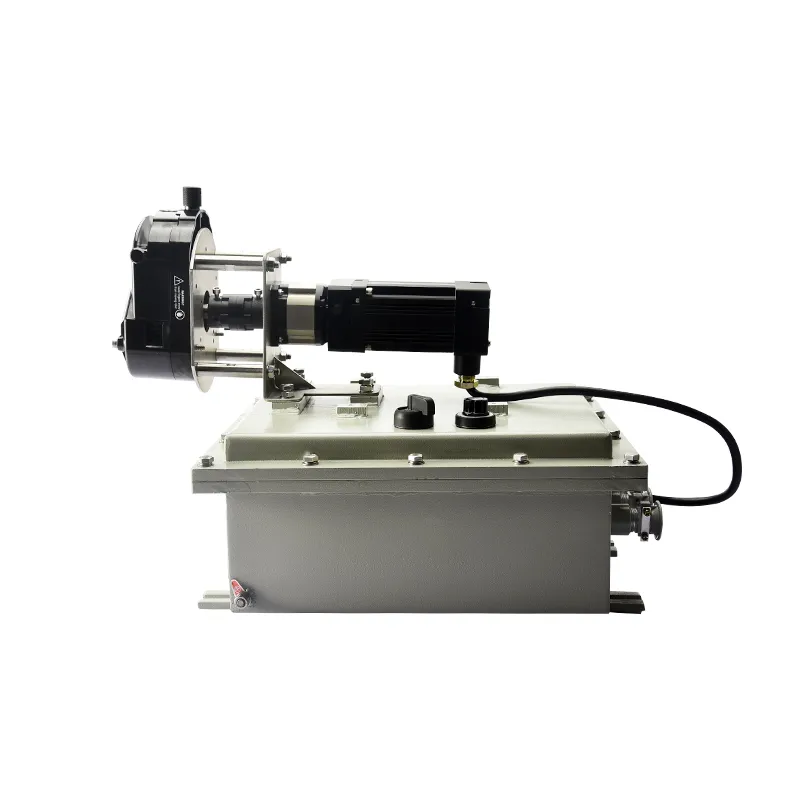

DC explosion-proof motor peristaltic pump drive model | WFB100 | WFB300 | WFB600 |
Application Pump Head | YZ series, TX series, KZ series and other pump heads. | ||
Max Speed | 100rpm | 300rpm | 600rpm |
Motor Parameters | 80w 2000rpm | 120w 3000rpm | 120w 3000rpm |
Gearbox reduction ratio | 1:20 | 1:10 | 1:5 |
Max Flow | 380ml/mn | 6000ml/mn | 12000ml/mn |
Output Torque | 8N.M | 4N.M | 2N.M |
Speed Regulation Method | potentiometer | potentiometer | potentiometer |
Display Method | potentiometer | potentiometer | potentiometer |
Operating Voltage | AC100-240V | AC100-240V | AC100-240V |
Rated Power | <80w | <120w | <120w |
Working Environment | Ambient temperature 0~40℃ Ambient humidity<80% | ||
Drive Dimensions | 456*300*357(mm) | ||
Motor Protection Grade | IP55 | ||
Motor Explosion-proof Grade | EXDII-B-T4 Gb |
Pump head | Model | Max Speed | 13#(0.8*1.6) | 14# (1.6*1.6) | 19#(2.4*1.6) | 16#(3.1*1.6) | 25# (4.8*1.6) | 17#(6.4*1.6) | 18#(7.9*1.6) | |

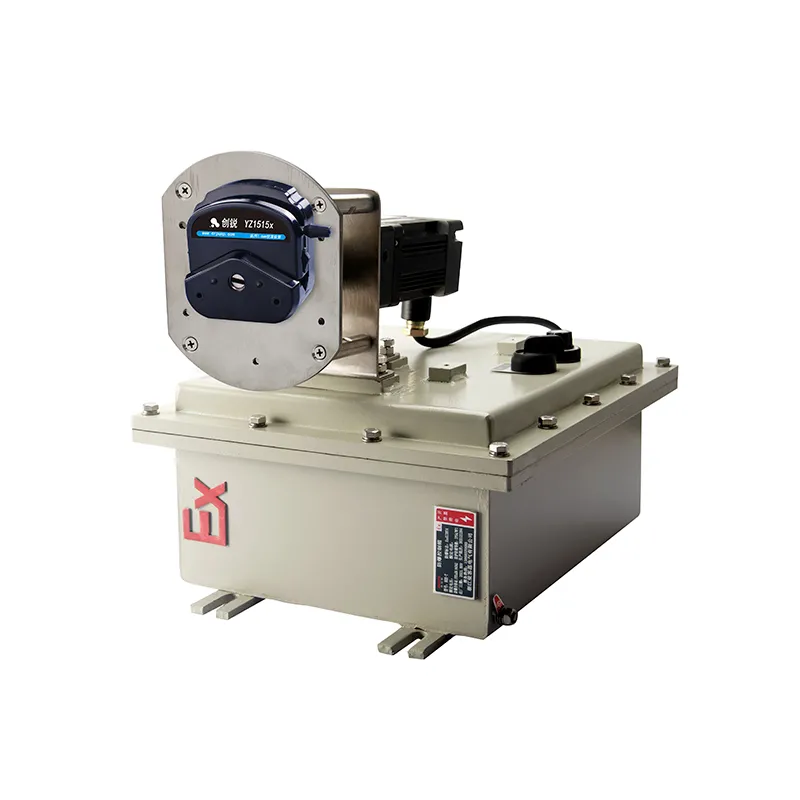

YZ1515X | WFB600 | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 | |
Pump head | Model | Max Speed | 15#(4.8*2.4) | 24#(6.4*2.4) | ||||||
YZ2515X | WFB600 | 600 | 1020 | 1740 | ||||||
Pump head | Model | Max Speed | 15# | 24# | 35# | 36# | ||||
KZ25 | WFB600 | 600 | 1800 | 3000 | 4200 | 6000 | ||||
Pump head | Model | Max Speed | 73#( | 82# | ||||||

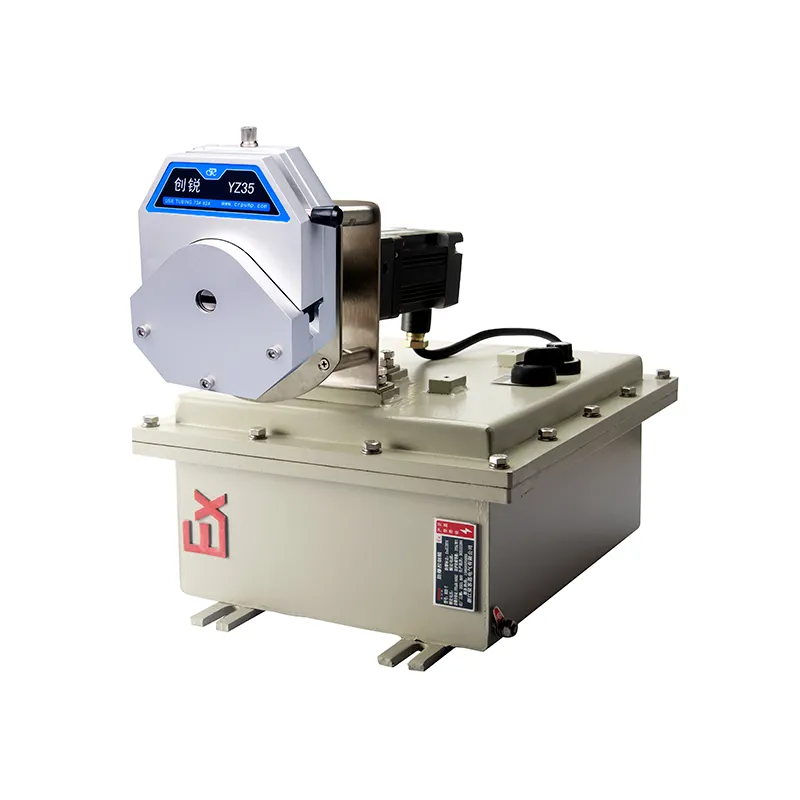

YZ35 | WFB600 | 600 | 7400 | 12000 | ||||||
Pump head | Model | Max Speed | 73#( | 82# | ||||||

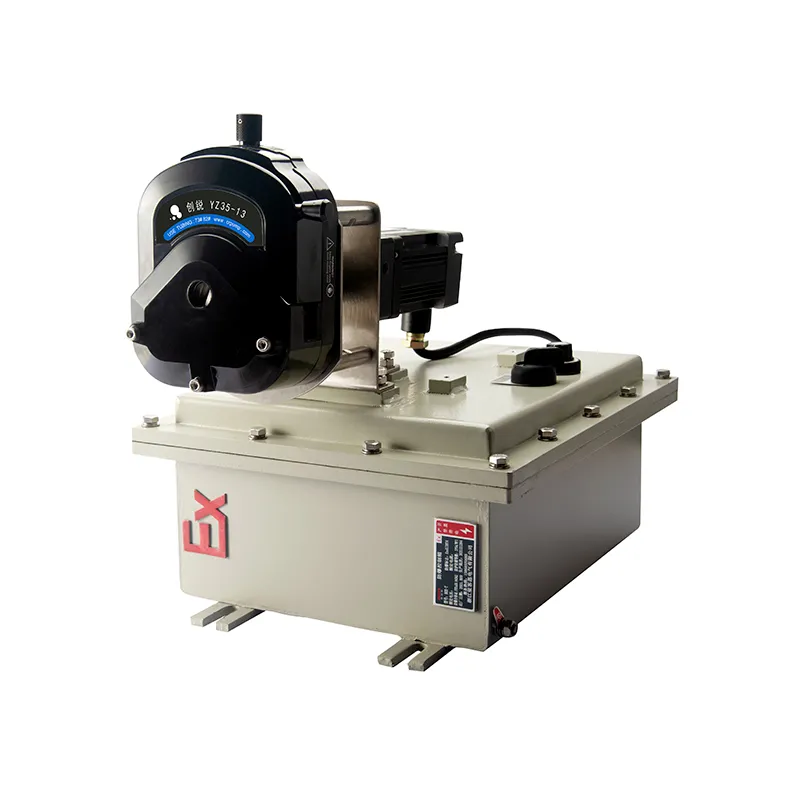

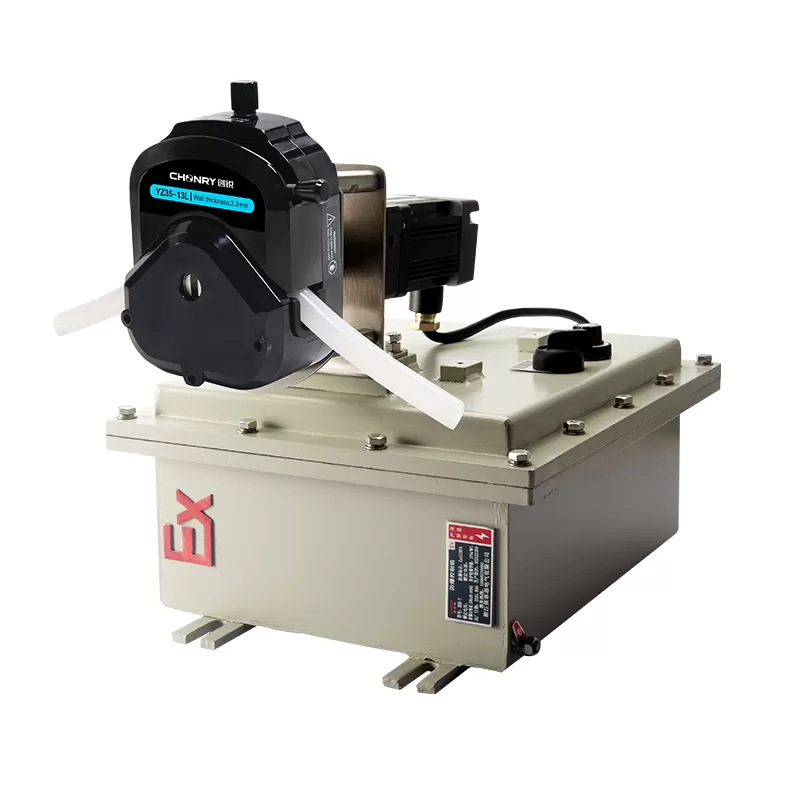

YZ35-13 | WFB600 | 600 | 7400 | 12000 |
Flow unit: (mL/min) hose model: (mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
None
None
Baoding Chuangrui Precision Pump Co., Ltd. is located in Hebei of China. Started production of the peristaltic pump in 2010, as the top pump manufacturer in China, we now have 30 series production including peristaltic pump, pump head, gear pump, and micro peristaltic pump.
