Good sealing performance, reverse flow of fluid, low maintenance cost, and can be used with other equipment.
Support user customization, mature processing technology, high production capacity, and can be mass-produced.
Color touchscreen operation can realize batch filling, and the number of control units can be expanded.
The R&D team can carry out customized development according to different design schemes.
LCD touch screen, which can realize high-precision, smooth and pulsation-free liquid transmission.
Targeted production of products according to market demand, including adding pumps, gear pumps, etc.
Provide peristaltic pump hose options, such as platinum vulcanized silicone hose, the hose for cell research, etc.

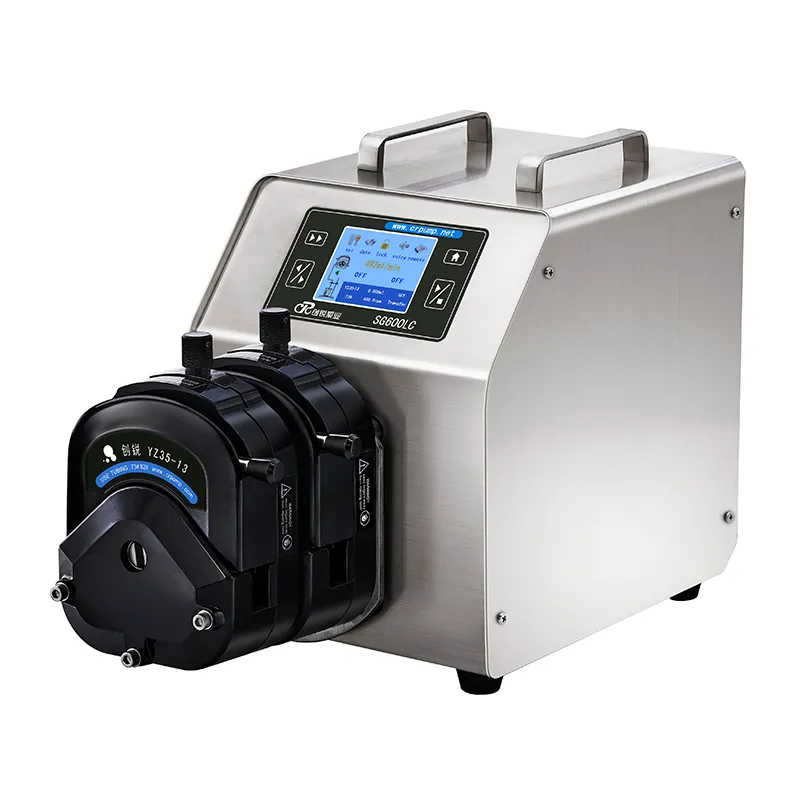

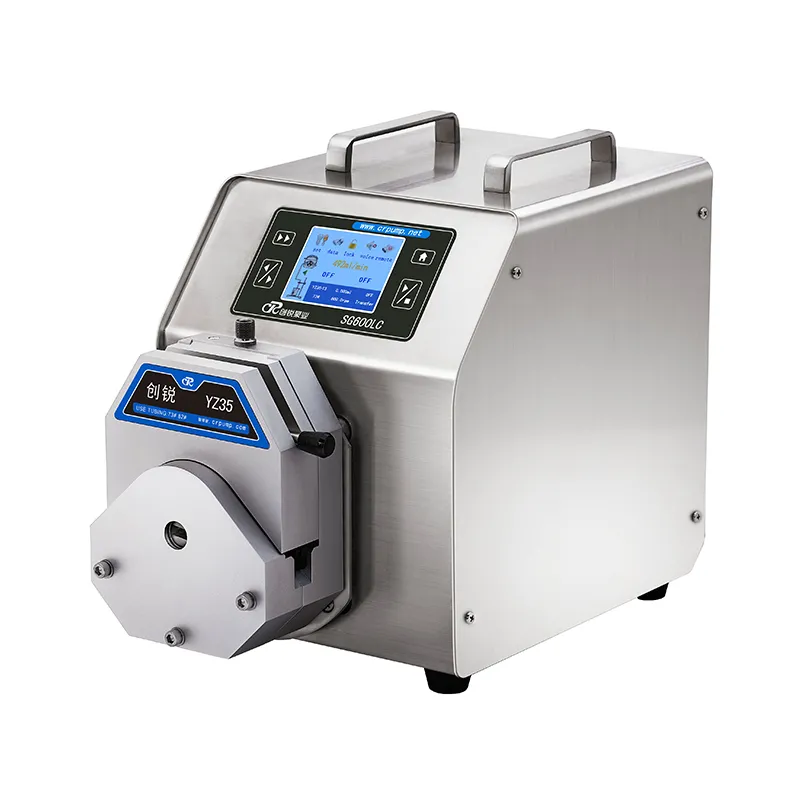

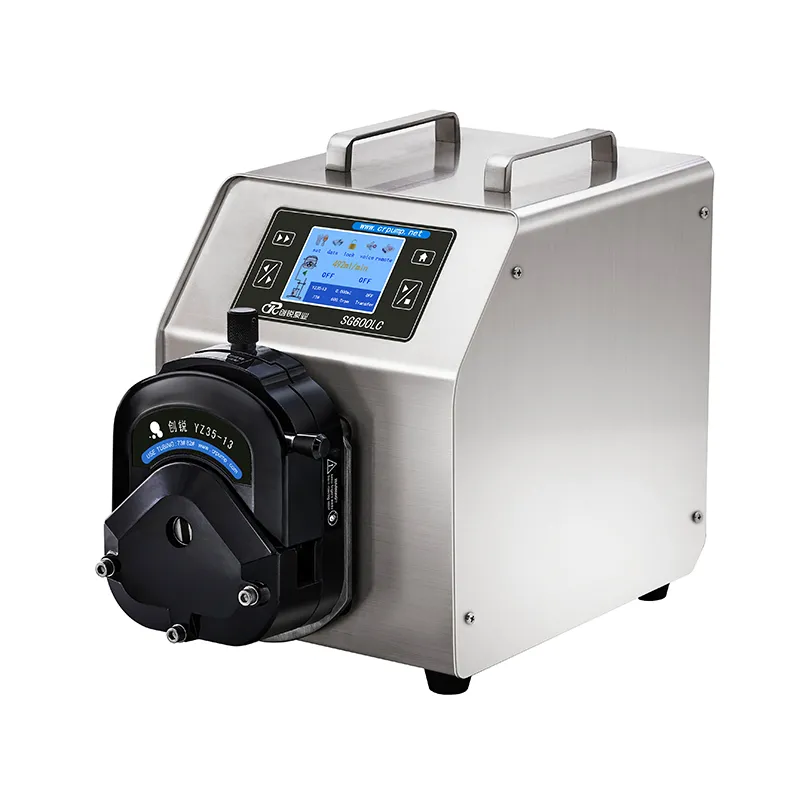

SG600LC is a high-flow intelligent flow peristaltic pump. It is controlled by a 3.5-inch color LCD touch screen, with a Chinese and English operation interface, with flow calibration function, real-time display of various operating parameters on the same screen, easy to use, and provides user data storage.
SG600LC is a high-flow intelligent flow peristaltic pump. It is controlled by a 3.5-inch color LCD touch screen, with a Chinese and English operation interface, with flow calibration function, real-time display of various operating parameters on the same screen, easy to use, and provides user data storage. Fast filling, to meet different work requirements, bidirectional high torque, install YZ35, YZ35-13 and other pump heads, can cascade multiple pump heads, can perform liquid volume calibration, support RS485/MODBUS communication protocol, provide a variety of external control methods
3.5-inch color LCD, Chinese and English display, touch screen control.
After setting the target flow, input the actual flow, and the system will automatically calibrate
The speed angle of reverse operation can be customized to prevent liquid dripping.
Transmission mode, timing mode, quantitative mode, timing quantitative mode
9 sets of data can be stored for users.
Support RS485/MODBUS communication protocol, analog control, foot switch control.
Used in mining, metallurgy, environmental engineering, chemical industry, water treatment and other fields
Drive model: SG600LC
Max Speed: 600rpm (reversible)
Speed resolution: 0.1rpm
Speed mode: Touch screen adjustment
Display method: Color LCD display (Chinese and English optional)
Suction angle: 10°-720° (0° means no back suction)
Suction speed: 10-300rpm
Max flow: 12000mL/min
Power supply:AC220V±10% (standard) or AC110V±10% (optional)

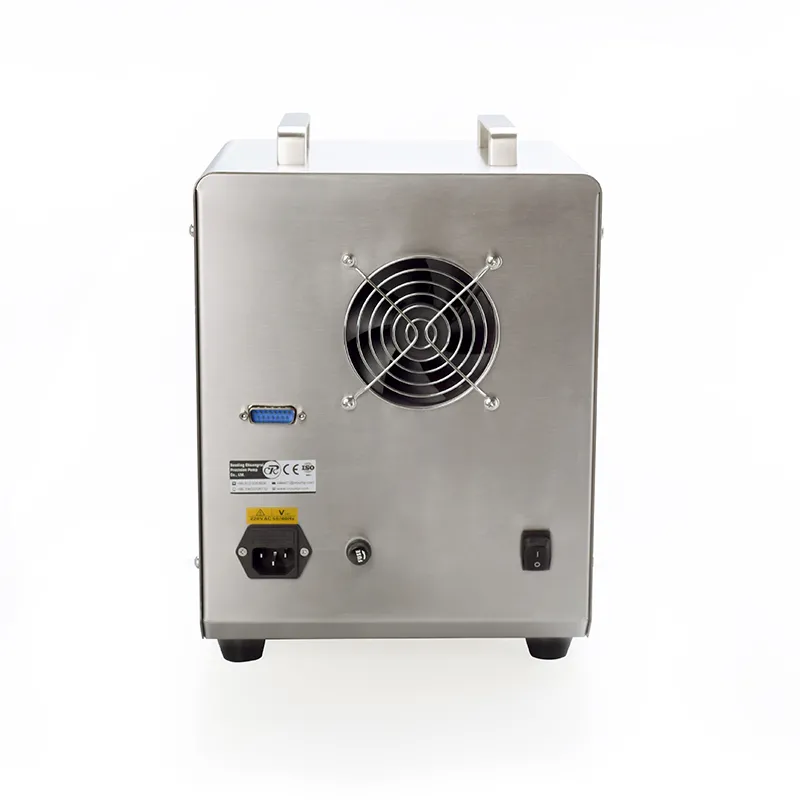

External control interface: DB-15
External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Drive size: 233X325X427.5(mm)
Protection class: IP31 (indoor use, avoid prolonged exposure to UV rays)
|Pump Head||Model||Hose||ID（mm）||Wall Thickness（mm）||Max Flow(ml/min)||Max Speed(rpm)|
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
