SG600FC is an intelligent distribution peristaltic pump. It adopts a 3.5-inch color LCD touch screen display. The operation is simple and intuitive. It has two working modes of transmission and distribution. It can be intelligently set according to different work requirements. The motor torque is strong, suitable for YZ35, Multi-series pump heads such as YZ35-13 can store data and support various remote control modes such as RS485/MODBUS.

Multiple modes

It has two working modes of transmission and distribution, and can perform repeated timing and quantitative filling

Suction function

The speed angle of reverse operation can be customized to prevent liquid dripping

LCD touch

3.5-inch color LCD, Chinese and English display, touch screen control

Data storage

9 sets of data can be stored for users

Adapt to multiple pump heads

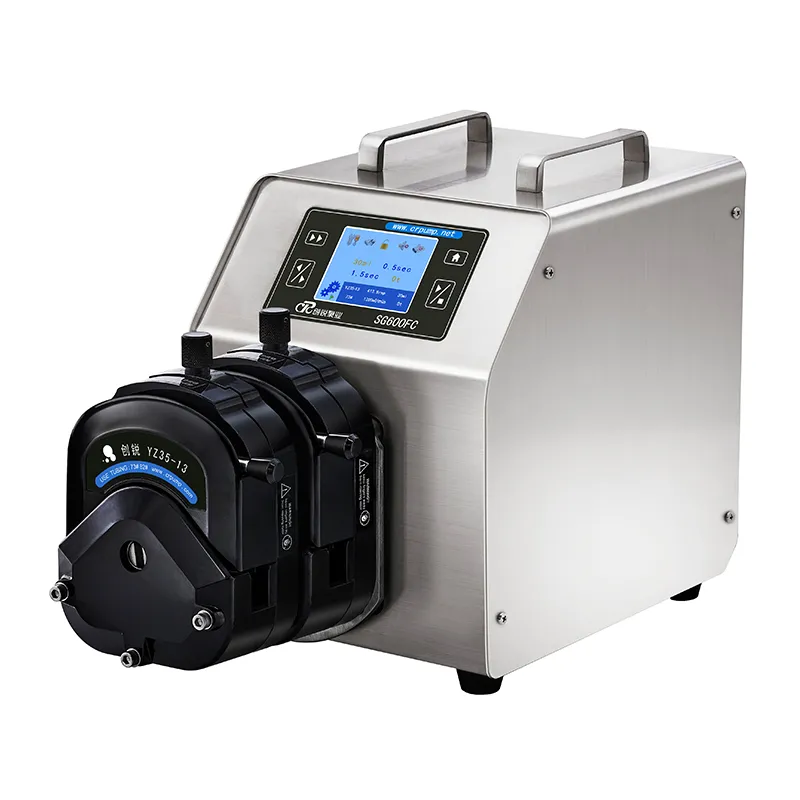

YZ35, YZ35-13 pump heads can be installed, and the pump heads can be cascaded

Support external control

Support RS485/MODBUS communication protocol, analog control, foot switch control

Drive model: SG600FC

Max Speed: 600rpm (reversible)

Speed resolution: 0.1rpm

Speed mode: Touch screen adjustment

Display method: Color LCD display (Chinese and English optional)

Suction angle: 10°-720° (0° means no back suction)

Suction speed: 10-300rpm

Max flow: 12000mL/min

Power supply:AC220V±10% (standard) or AC110V±10% (optional)

Power: ＜400W

External control interface: DB-15

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Drive size: 233X325X427.5(mm)

Protection class: IP31 (indoor use, avoid prolonged exposure to UV rays)

Pump Head	Model	Hose	ID（mm）	Wall Thickness（mm）	Max Flow(ml/min)	Max Speed(rpm)

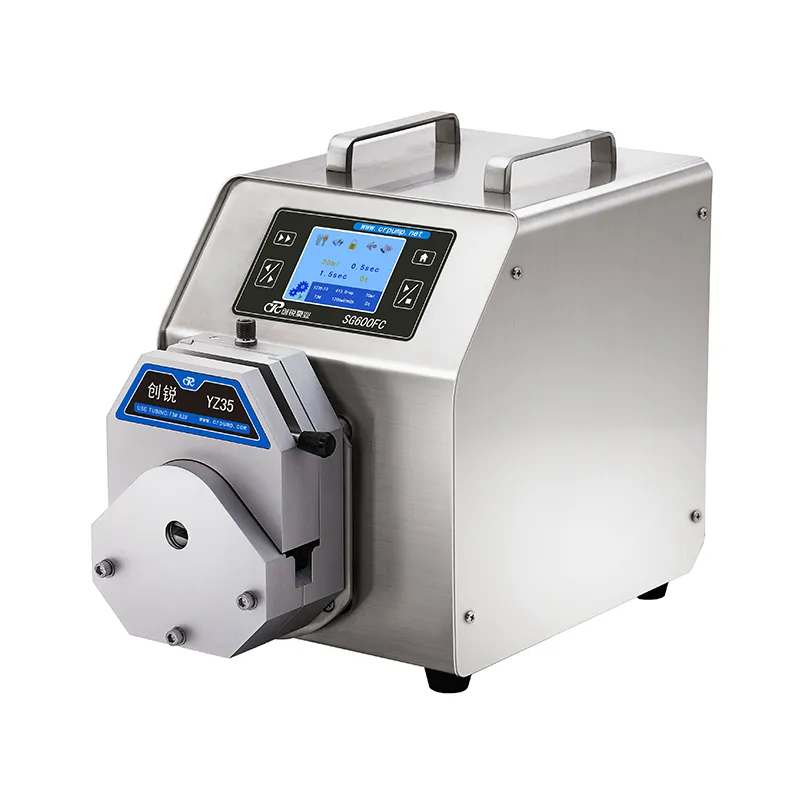

YZ35	SG600FC	73#	9.6	3.3	7400	600
YZ35	SG600FC	82#	12.7	3.3	12000	600

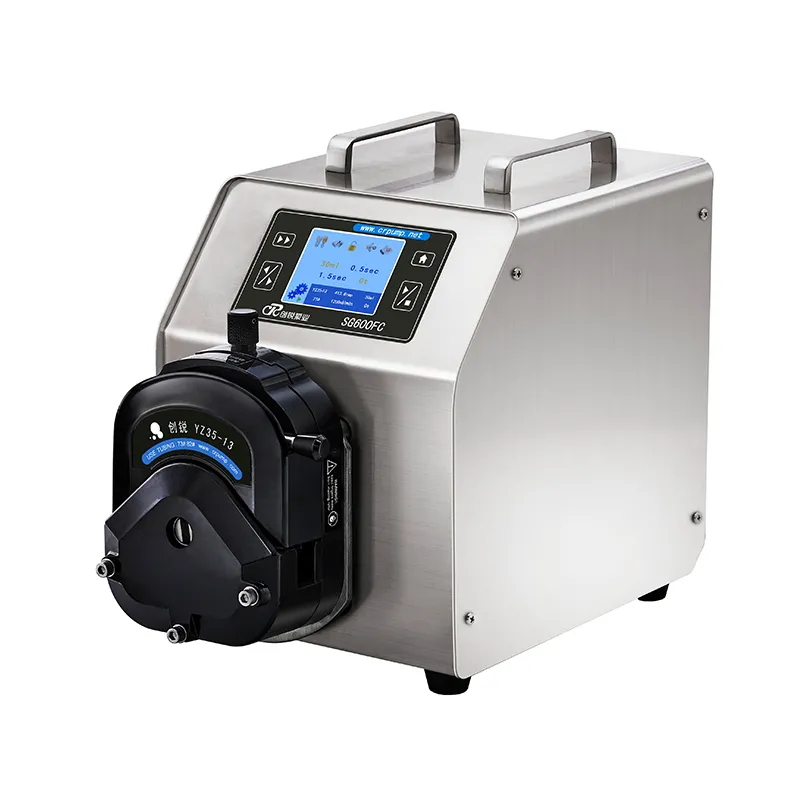

YZ35-13	SG600FC	73#	9.6	3.3	7400	600
YZ35-13	SG600FC	82#	12.7	3.3	12000	600

SG600FC 3.5-inch color LCD, Chinese and English display, touch screen control

SG600FC Brochure SG600FC is an intelligent distribution peristaltic pump. It adopts a 3.5-inch color LCD touch screen display. The operation is simple and intuitive.
