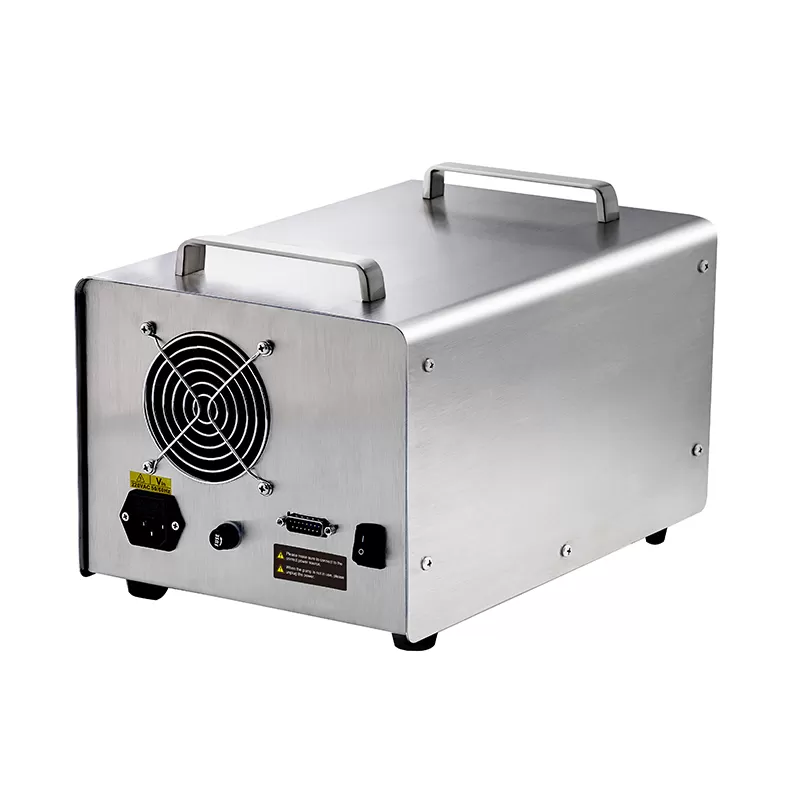

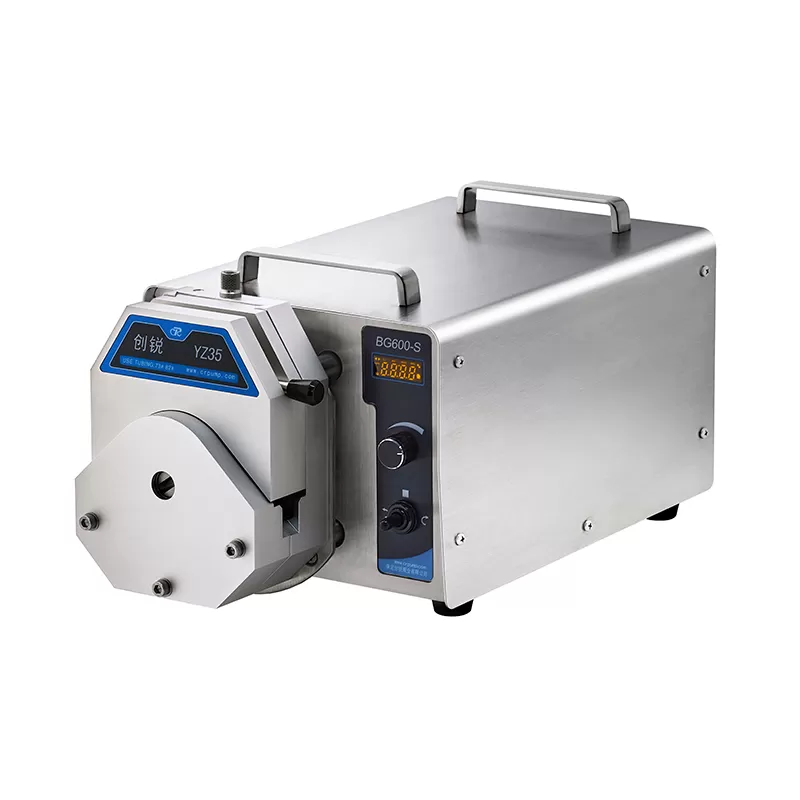

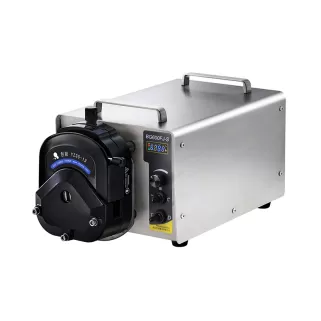

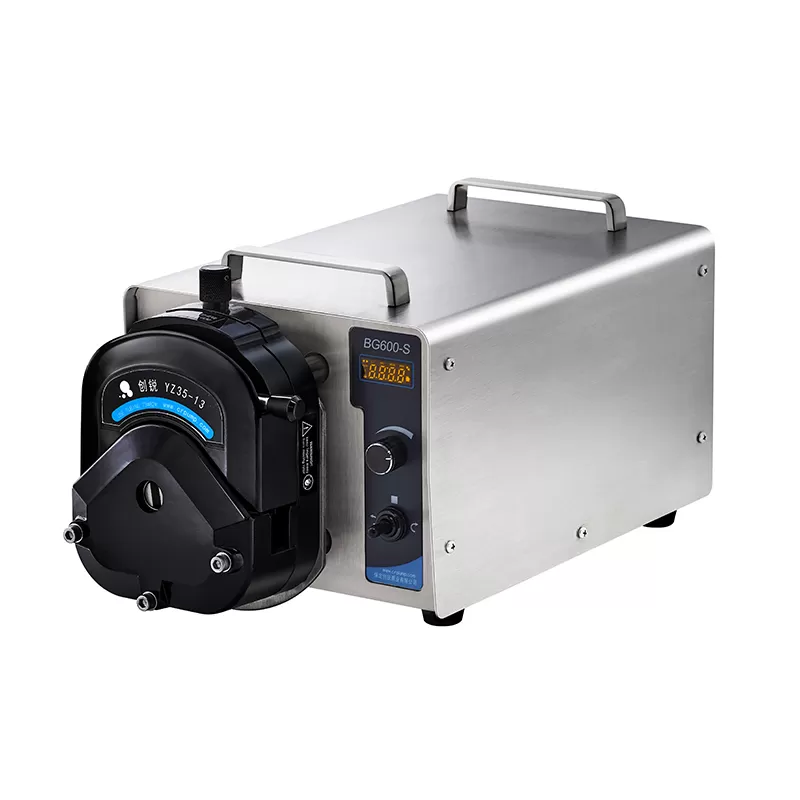

BG600-S Digital peristaltic pump

BG600-S is a high-flow industrial peristaltic pump. It is equipped with pump heads such as YZ35 and YZ35-13. It can cascade multiple pump heads, digital knob adjustment, and two-way large torque. The current flow or speed is displayed through 4-digit LED, and the liquid volume can be calibrated. It supports the RS485/MODBUS communication protocol, and the knob adjusts the parameters. The operation is simple and convenient.

Specification

Power off save

Can automatically save the control parameters when the last power failure

One key full speed

For quick cleaning, filling, emptying of pipes

Flow calibration

After setting the target flow, input the actual flow value, and the system will automatically perform flow correction

Suction function

Pump can be customized to reverse operation after shutdown to prevent liquid dripping

External control function

Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs

Can be cascaded

Bidirectional high torque, low power consumption motor, can cascade multiple pump heads

Application

Used in admixture conveyors, tubular centrifuges and other equipment supporting the use
